Push-In Rivets - Clinch - Application Shot

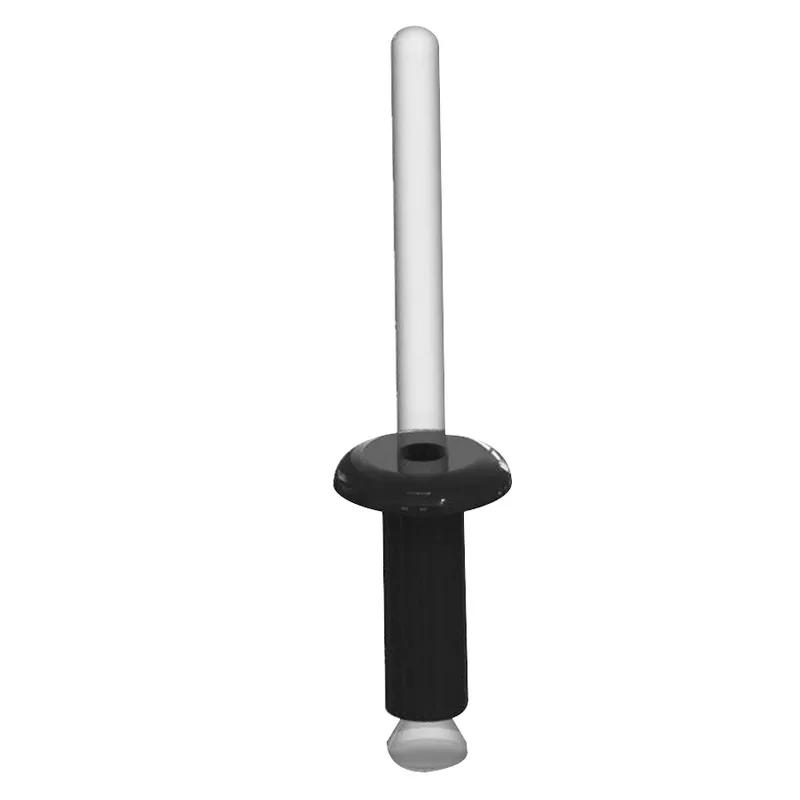

Pop Rivets

In stock

Pop Rivets, also known as Blind Rivets or Clinch Rivets, are a convenient fasteners used mainly when panel access is limited or restricted to one side. This means they tend to be installed on the rear (blind) side of the application, allowing the components to be joined together.

Suitable for light to medium duty applications; a Pop Rivet can be used in place of adhesives, screws, nuts and bolts. Pop Fasteners permanently fix two materials together. They are ideal for thin applications, and suitable for materials including; woods, metals and plastics.

Easily installed, with a hammer or with a special riveting tool. Pop Riveters are inserted into a tight panel hole, passing through the two materials being riveted.

Our Pop Riveting range is strong, but lightweight. It offers good electrical insulating properties, as well as resistance from vibraton, abrasion and corrosion.

Materials: Nylon 6/6 and Nylon 6 with Polycarbonate (PC)
Colours: Beige, Black, Grey, Natural and White
UL94 V2 Flame Rated options

This range features options that can be installed using a Rivet Gun, available to purchase seperately.

Print page

Need a quote?

For large volumes and customised products, add to your cart and click request a quote, or email sales@essentracomponents.co.uk and we will respond within 1 working day

Sort by

None

Product SKUs information
Item Code	Price range	Availability	Compatible Hole Diameter	Colour	Material	Head Height	Head Diameter	Minimum Compatible Panel Thickness	Maximum Compatible Panel Thickness
	£ 0.2053 - £ 0.6191	In production	0.161 in 4.1 mm	Black	Nylon;PC	0.071 in 1.8 mm	0.315 in 8.0 mm	0.039 in 1.0 mm	0.138 in 3.5 mm

CR48-2-2	£ 0.7932 - £ 1.7289	10266 In stock	0.193 in 4.9 mm	White	Nylon;PC	0.079 in 2.0 mm	0.378 in 9.6 mm	0.177 in 4.5 mm	0.295 in 7.5 mm

	£ 0.3006 - £ 0.9009	38972 In stock	0.161 in 4.1 mm	Natural	Nylon	0.047 in 1.2 mm	0.354 in 9.0 mm	0.197 in 5.0 mm	0.354 in 9.0 mm

CR48-2-1	£ 0.4724 - £ 1.1621	27792 In stock	0.193 in 4.9 mm	Black	Nylon;PC	0.079 in 2.0 mm	0.378 in 9.6 mm	0.177 in 4.5 mm	0.295 in 7.5 mm

	£ 0.2972 - £ 0.2972	In production	0.224 in 5.7 mm	Beige	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.315 in 8.0 mm	0.453 in 11.5 mm

CR48-1-2	£ 0.7597 - £ 1.6585	6389 In stock	0.193 in 4.9 mm	White	Nylon;PC	0.079 in 2.0 mm	0.378 in 9.6 mm	0.059 in 1.5 mm	0.177 in 4.5 mm

1285320	£ 0.2966 - £ 0.6241	5994 In stock	0.224 in 5.7 mm	White	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.197 in 5.0 mm	0.315 in 8.0 mm

	£ 0.2241 - £ 0.7147	15998 In stock	0.201 in 5.1 mm	Natural	Nylon	0.059 in 1.5 mm	0.433 in 11.0 mm	0.197 in 5.0 mm	0.354 in 9.0 mm

	£ 0.4013 - £ 0.4187	In production	0.161 in 4.1 mm	Black	Nylon;PC	0.071 in 1.8 mm	0.315 in 8.0 mm	0.138 in 3.5 mm	0.236 in 6.0 mm

	£ 0.6469 - £ 1.4118	9461 In stock	0.224 in 5.7 mm	White	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.315 in 8.0 mm	0.453 in 11.5 mm

497526	£ 0.1906 - £ 0.609	10854 In stock	0.161 in 4.1 mm	Natural	Nylon	0.047 in 1.2 mm	0.354 in 9.0 mm	0.02 in 0.5 mm	0.197 in 5.0 mm

	£ 0.4724 - £ 1.0847	In production	0.193 in 4.9 mm	Beige	Nylon;PC	0.079 in 2.0 mm	0.378 in 9.6 mm	0.177 in 4.5 mm	0.295 in 7.5 mm

	£ 0.4013 - £ 0.4187	In production	0.161 in 4.1 mm	Black	Nylon;PC	0.071 in 1.8 mm	0.315 in 8.0 mm	0.236 in 6.0 mm	0.354 in 9.0 mm

	£ 0.4724 - £ 1.0519	37 In stock	0.193 in 4.9 mm	White	Nylon;PC	0.079 in 2.0 mm	0.378 in 9.6 mm	0.295 in 7.5 mm	0.413 in 10.5 mm

	£ 0.5476 - £ 1.4408	1000 In stock	0.224 in 5.7 mm	Black	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.315 in 8.0 mm	0.453 in 11.5 mm

	£ 0.2053 - £ 0.4404	In production	0.161 in 4.1 mm	White	Nylon;PC	0.071 in 1.8 mm	0.315 in 8.0 mm	0.039 in 1.0 mm	0.138 in 3.5 mm

	£ 0.389 - £ 0.6102	In production	0.224 in 5.7 mm	Beige	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.079 in 2.0 mm	0.197 in 5.0 mm

	£ 0.2926 - £ 0.9211	1000 In stock	0.24 in 6.1 mm	Natural	Nylon	0.059 in 1.5 mm	0.512 in 13.0 mm	0.02 in 0.5 mm	0.197 in 5.0 mm

	£ 0.2617 - £ 0.3271	In production	0.161 in 4.1 mm	Grey	Nylon;PC	0.071 in 1.8 mm	0.315 in 8.0 mm	0.039 in 1.0 mm	0.138 in 3.5 mm

		In production	0.224 in 5.7 mm	Grey	Nylon;PC	0.087 in 2.2 mm	0.472 in 12.0 mm	0.079 in 2.0 mm	0.197 in 5.0 mm
