Flush Compression Lever Latches

In stock

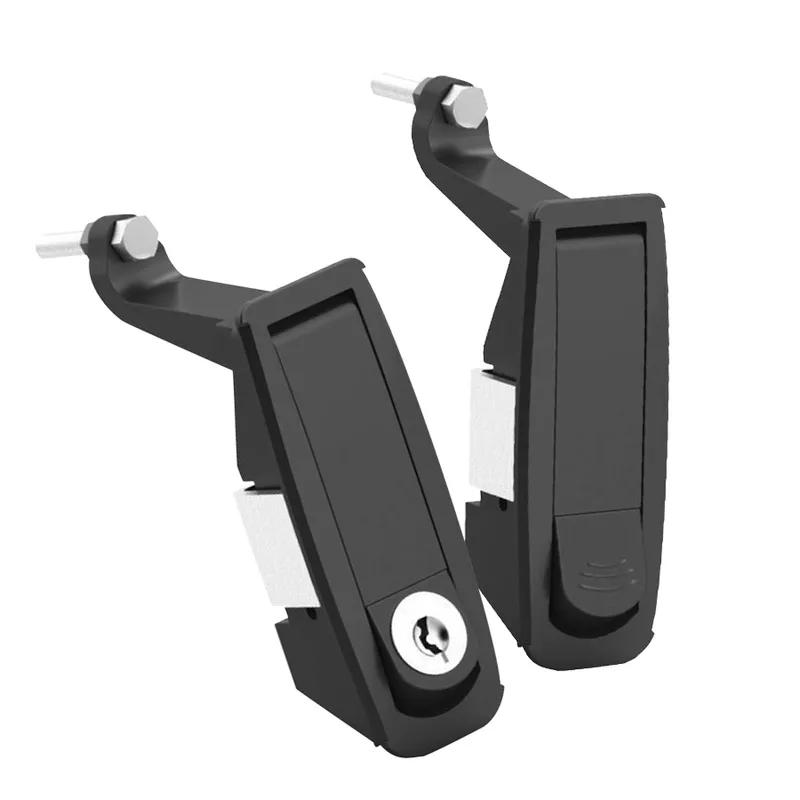

Flush Compression Lever Latch with an offset trigger design. Provides good gasket compression and is easy to use. Suitable for left and right hand applications to secure doors, cabinets, or panels.

Suitable for a panel thickness of less than, and including, 2mm. It is available in a selection of adjustable grip range: 0-24mm, 24-46mm, 36-48mm, and 51-63mm.

These Latches come as either keyed alike (5333), keyed different or with no lock and supplied with 2 keys per lock.

  • Colour:Black


Series Code :SR5090

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 1 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
12 results
Product SKUs information

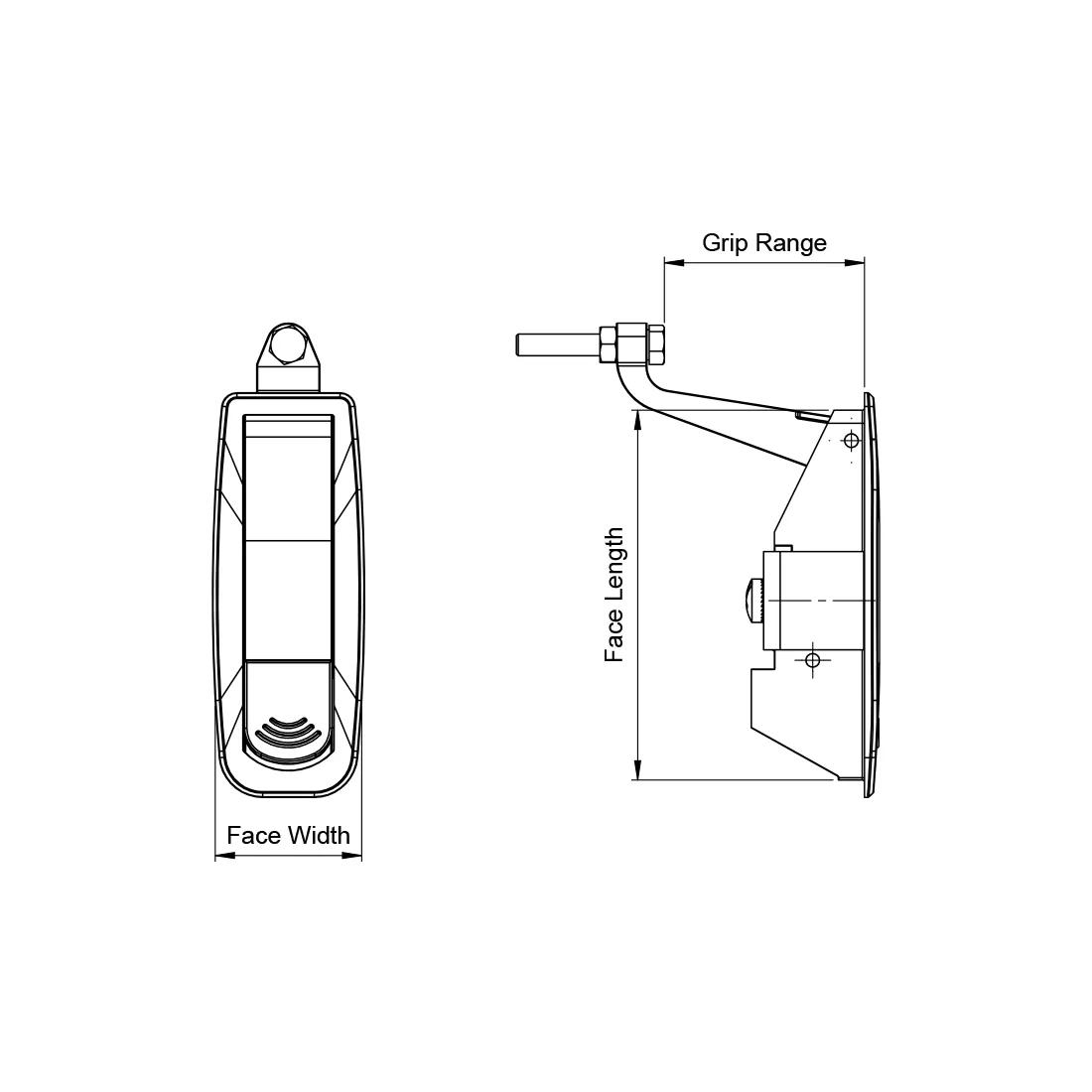

Item Code Price range Availability Face Length Trigger Type Overall Length Locking Mechanism Face Width Mounting Hole Size Range Grip Range View
£ 21.1567 - £ 29.6193 11 In stock
93.0 mm
Raised
109.0 mm
Locking
35.0 mm
24.0 - 46.0 mm
1772201E £ 6.1606 - £ 9.5831 20 In stock
93.0 mm
Raised
109.0 mm
Locking
35.0 mm
24.0 mm
3771200E £ 9.8088 - £ 15.2582 6 In stock
110.0 mm
125.0 mm
No Cylinder
50.0 mm
34.5 - 89.5 mm
36.0 - 48.0 mm
£ 9.319 - £ 14.4962 Request the lead time here
110.0 mm
125.0 mm
No Cylinder
50.0 mm
34.5 - 89.5 mm
51.0 - 63.0 mm
3771207E £ 16.255 - £ 23.2262 Request the lead time here
109.0 mm
125.0 mm
CH751
50.0 mm
34.5 - 89.5 mm
36.0 - 48.0 mm
£ 6.2989 - £ 9.7983 30 In stock
93.0 mm
Flush
109.0 mm
Locking
35.0 mm
25.0 - 86.0 mm
0 - 24.0 mm
0772200E £ 4.8634 - £ 7.5654 20 In stock
93.0 mm
Flush
109.0 mm
Non-Locking
35.0 mm
24.0 mm
£ 15.3473 - £ 21.4862 11 In stock
85.0 mm
Flush
109.0 mm
Locking
35.0 mm
25.0 - 86.0 mm
24.0 - 46.0 mm
£ 14.7887 - £ 20.7042 Request the lead time here
85.0 mm
Flush
109.0 mm
Locking
35.0 mm
25.0 - 86.0 mm
0 - 24.0 mm
£ 5.0542 - £ 7.8621 Request the lead time here
93.0 mm
Flush
109.0 mm
Non-Locking
35.0 mm
25.0 - 86.0 mm
24.0 - 46.0 mm
£ 11.0535 - £ 17.1943 Request the lead time here
89.0 mm
Flush
109.0 mm
CH751
35.0 mm
34.5 - 89.5 mm
51.0 - 63.0 mm
£ 15.3473 - £ 21.4862 Request the lead time here
85.0 mm
Flush
109.0 mm
Locking
35.0 mm
25.0 - 86.0 mm
24.0 - 46.0 mm
Compression Lever Latch 93.0 mm 35.0 mm Die Cast Zinc Alloy

1771201E

Price Range
£ 29.6193 - £ 21.1567

Stock Levels
11 In stock
Attributes
  • Face Length
    93.0 mm
  • Face Width
    35.0 mm
  • Grip Range
    24.0 - 46.0 mm
  • Overall Length
    109.0 mm
  • Locking Mechanism
    Locking
Compression Lever Latch 93.0 mm 35.0 mm Die Cast Zinc Alloy

1772201E

Price Range
£ 9.5831 - £ 6.1606

Stock Levels
20 In stock
Attributes
  • Face Length
    93.0 mm
  • Face Width
    35.0 mm
  • Grip Range
    24.0 mm
  • Overall Length
    109.0 mm
  • Locking Mechanism
    Locking
Compression Lever Latch 110.0 mm 50.0 mm Black

3771200E

Price Range
£ 15.2582 - £ 9.8088

Stock Levels
6 In stock
Attributes
  • Face Length
    110.0 mm
  • Face Width
    50.0 mm
  • Mounting Hole Size Range
    34.5 - 89.5 mm
  • Grip Range
    36.0 - 48.0 mm
  • Overall Length
    125.0 mm
Compression Lever Latch 110.0 mm 50.0 mm Black

3772200E

Price Range
£ 14.4962 - £ 9.319

Stock Levels
Request the lead time here
Attributes
  • Face Length
    110.0 mm
  • Face Width
    50.0 mm
  • Mounting Hole Size Range
    34.5 - 89.5 mm
  • Grip Range
    51.0 - 63.0 mm
  • Overall Length
    125.0 mm
Compression Lever Latch 109.0 mm 50.0 mm Black

3771207E

Price Range
£ 23.2262 - £ 16.255

Stock Levels
Request the lead time here
Attributes
  • Face Length
    109.0 mm
  • Face Width
    50.0 mm
  • Mounting Hole Size Range
    34.5 - 89.5 mm
  • Grip Range
    36.0 - 48.0 mm
  • Overall Length
    125.0 mm
Compression Lever Latch 93.0 mm 35.0 mm Black

0772201E

Price Range
£ 9.7983 - £ 6.2989

Stock Levels
30 In stock
Attributes
  • Face Length
    93.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    25.0 - 86.0 mm
  • Grip Range
    0 - 24.0 mm
  • Overall Length
    109.0 mm
Compression Lever Latch 109.0 mm 24.0 mm Zinc Alloy

0772200E

Price Range
£ 7.5654 - £ 4.8634

Stock Levels
20 In stock
Attributes
  • Face Length
    93.0 mm
  • Face Width
    35.0 mm
  • Grip Range
    24.0 mm
  • Overall Length
    109.0 mm
  • Locking Mechanism
    Non-Locking
Compression Lever Latch 85.0 mm 35.0 mm Black

0771202E

Price Range
£ 21.4862 - £ 15.3473

Stock Levels
11 In stock
Attributes
  • Face Length
    85.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    25.0 - 86.0 mm
  • Grip Range
    24.0 - 46.0 mm
  • Overall Length
    109.0 mm
Compression Lever Latch 85.0 mm 35.0 mm Black

0772202E

Price Range
£ 20.7042 - £ 14.7887

Stock Levels
Request the lead time here
Attributes
  • Face Length
    85.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    25.0 - 86.0 mm
  • Grip Range
    0 - 24.0 mm
  • Overall Length
    109.0 mm
Compression Lever Latch 93.0 mm 35.0 mm Black

0771200E

Price Range
£ 7.8621 - £ 5.0542

Stock Levels
Request the lead time here
Attributes
  • Face Length
    93.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    25.0 - 86.0 mm
  • Grip Range
    24.0 - 46.0 mm
  • Overall Length
    109.0 mm
Compression Lever Latch 89.0 mm 35.0 mm Black

3772207E

Price Range
£ 17.1943 - £ 11.0535

Stock Levels
Request the lead time here
Attributes
  • Face Length
    89.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    34.5 - 89.5 mm
  • Grip Range
    51.0 - 63.0 mm
  • Overall Length
    109.0 mm
Compression Lever Latch 85.0 mm 35.0 mm Black

0771201E

Price Range
£ 21.4862 - £ 15.3473

Stock Levels
Request the lead time here
Attributes
  • Face Length
    85.0 mm
  • Face Width
    35.0 mm
  • Mounting Hole Size Range
    25.0 - 86.0 mm
  • Grip Range
    24.0 - 46.0 mm
  • Overall Length
    109.0 mm
