Linear Guide Rail Standard 45.0 14.0 1620.0 Steel
This 45mm Linear Guide Rail is used in applications requiring high accuracy, low friction and smooth movements. It can sustain dynamic loads while accounting for impact, vibration, and fatigue. Made of steel.
Specifications
Imperial
Metric

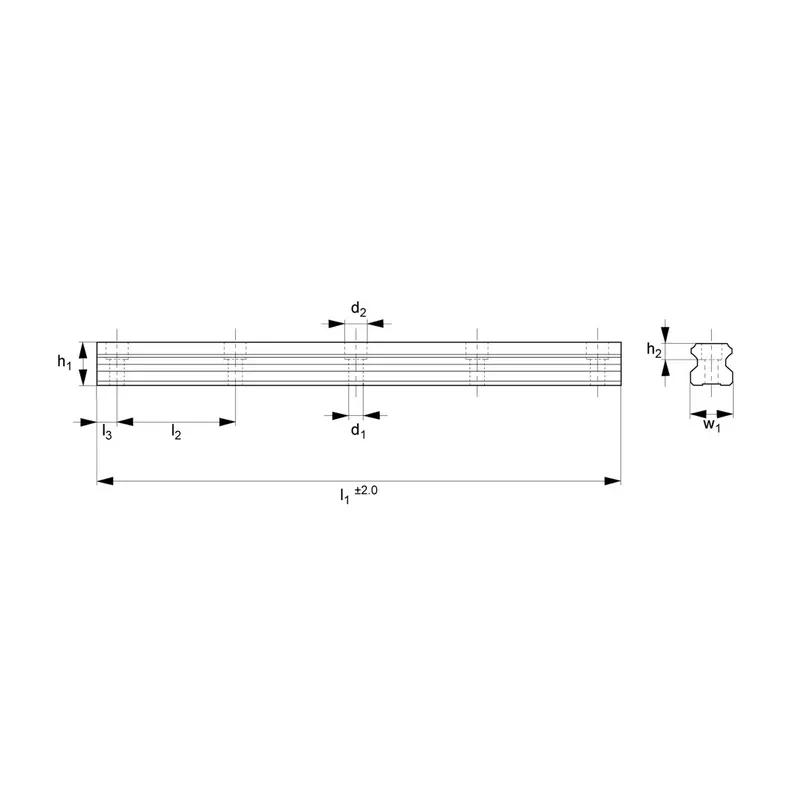

| Rail Type | Standard |
|---|---|
| Rail size | 45.0 |
| l1 | 1620.0 |
| h1 | 31.1 |
| l2 | 105.0 |
| w1 | 45.0 |
| l3 | 22.5 |
| h2 | 17.0 |
| For screws | M12 |
| d1 | 14.0 |
| d2 | 20.0 |
| Weight kg | 19.93 |
| Material | Steel |
