Clevis Joints with Retention Clips

In production

Steel Clevis Joints, with retention clips, are a type of coupling in which the matching parts fit between the forks and are held in place by retention clips. They form a U-shaped connection between two rods, or shafts, to allow for tractive or linear thrust movements.

The retention clip is a clip that locks into place around the base of the clevis, preventing accidental disconnection and resulting in a clean, compact assembly. The steel substance ensures longevity and its ability to endure high forces, as well as resistance to wear and corrosion. If necessary, the joint can be dismantled for maintenance by removing the retention clip. This allows for component examination, lubrication and replacement.

Most commonly employed as a coupling on the end of air cylinders, at the ends of turnbuckles or for wire rope for tensioning, and used in industries such as construction, automotive and manufacturing.

  • The retention clip is a single component and requires no tools for installation or removal.
Material: 303 Stainless Steel, Steel Series Code: SRR3401, SRR3400, SRR3388, SRR3387

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 1 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
94 results
Product SKUs information

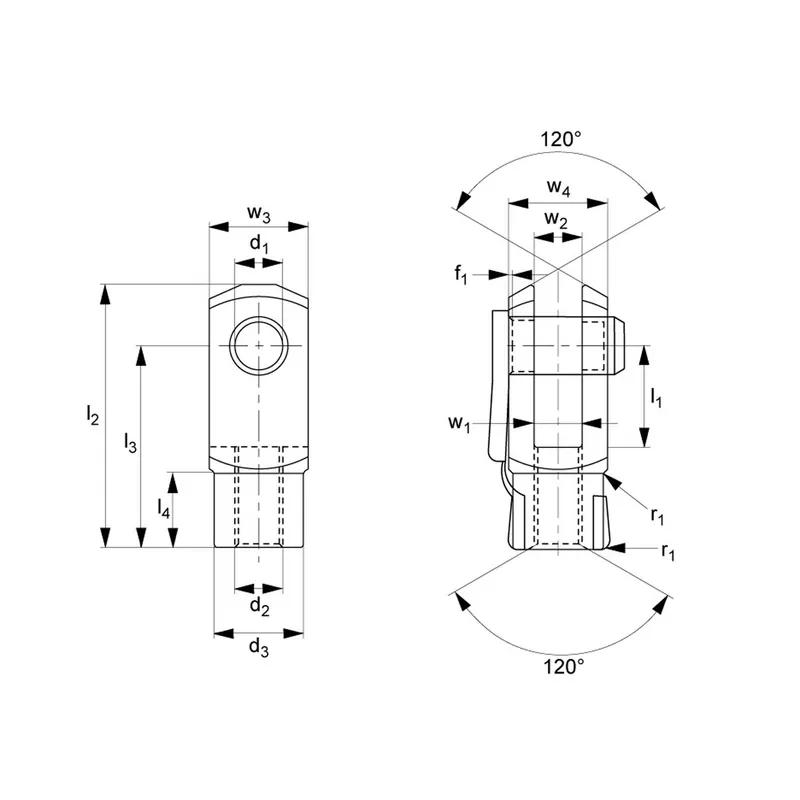

Item Code Price range Availability d2 d3 Clevis Size Thread hand Thread Type d1 tol. H9 l1 ±0.5 View
£ 68.17 - £ 113.62 Request the lead time here
M20
34.0
20x40
Left Hand
Coarse
20.0
40.0
£ 14.04 - £ 23.40 Request the lead time here
M10
18.0
10x40
Left Hand
Coarse
10.0
40.0
£ 18.55 - £ 30.92 Request the lead time here
M12x1.25
20.0
12x24
Left Hand
Fine
12.0
24.0
£ 68.17 - £ 113.62 Request the lead time here
M20x1.5
34.0
20x40
Left Hand
Fine
20.0
40.0
£ 5.29 - £ 8.82 Request the lead time here
M5
9.0
5x10
Right Hand
Coarse
5.0
10.0
£ 20.71 - £ 34.51 Request the lead time here
M12x1.25
20.0
12x48
Right Hand
Fine
12.0
48.0
£ 5.98 - £ 9.96 Request the lead time here
M6
10.0
6x12
Right Hand
Coarse
6.0
12.0
£ 68.17 - £ 113.62 Request the lead time here
M20
34.0
20x40
Right Hand
Coarse
20.0
40.0
£ 8.02 - £ 13.37 Request the lead time here
M8
14.0
9x16
Right Hand
Coarse
6.0
16.0
£ 14.04 - £ 23.40 Request the lead time here
M10x1.25
18.0
10x40
Right Hand
Fine
10.0
40.0
£ 18.55 - £ 30.92 Request the lead time here
M12x1.25
20.0
12x24
Right Hand
Fine
12.0
24.0
£ 18.55 - £ 30.92 Request the lead time here
M12
20.0
12x24
Right Hand
Coarse
12.0
24.0
£ 10.57 - £ 17.61 Request the lead time here
M10x1.25
18.0
10x20
Left Hand
Fine
10.0
20.0
£ 14.04 - £ 23.40 Request the lead time here
M10x1.25
18.0
10x40
Left Hand
Fine
10.0
40.0
£ 20.71 - £ 34.51 Request the lead time here
M12x1.25
20.0
12x48
Left Hand
Fine
12.0
48.0
£ 20.71 - £ 34.51 Request the lead time here
M12
20.0
12x48
Left Hand
Coarse
12.0
48.0
£ 5.98 - £ 9.96 Request the lead time here
M6
10.0
6x12
Left Hand
Coarse
6.0
12.0
£ 33.38 - £ 55.64 Request the lead time here
M16
26.0
16x32
Left Hand
Coarse
16.0
32.0
£ 6.02 - £ 10.04 Request the lead time here
M6
10.0
6x24
Right Hand
Coarse
6.0
24.0
£ 5.27 - £ 8.79 Request the lead time here
M5
9.0
5x20
Right Hand
Coarse
5.0
20.0
  • of 5
Clevis Joint with Retention Clips M20 20x40 40.0 303 Stainless Steel

20760168

Price Range
£ 113.62 - £ 68.17

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    20x40
  • Thread hand
    Left Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    20.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M10 10x40 40.0 303 Stainless Steel

20760083

Price Range
£ 23.40 - £ 14.04

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    10x40
  • Thread hand
    Left Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    10.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M12x1.25 12x24 24.0 303 Stainless Steel

20760113

Price Range
£ 30.92 - £ 18.55

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x24
  • Thread hand
    Left Hand
  • Thread Type
    Fine
  • d1 tol. H9
    12.0
  • l1 ±0.5
    24.0
Clevis Joint with Retention Clips M20x1.5 20x40 40.0 303 Stainless Steel

20760175

Price Range
£ 113.62 - £ 68.17

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    20x40
  • Thread hand
    Left Hand
  • Thread Type
    Fine
  • d1 tol. H9
    20.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M5 5x10 10.0 303 Stainless Steel

20759780

Price Range
£ 8.82 - £ 5.29

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    5x10
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    5.0
  • l1 ±0.5
    10.0
Clevis Joint with Retention Clips M12x1.25 12x48 48.0 303 Stainless Steel

20759933

Price Range
£ 34.51 - £ 20.71

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x48
  • Thread hand
    Right Hand
  • Thread Type
    Fine
  • d1 tol. H9
    12.0
  • l1 ±0.5
    48.0
Clevis Joint with Retention Clips M6 6x12 12.0 303 Stainless Steel

20759803

Price Range
£ 9.96 - £ 5.98

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    6x12
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    6.0
  • l1 ±0.5
    12.0
Clevis Joint with Retention Clips M20 20x40 40.0 303 Stainless Steel

20759964

Price Range
£ 113.62 - £ 68.17

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    20x40
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    20.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M8 9x16 16.0 303 Stainless Steel

20759827

Price Range
£ 13.37 - £ 8.02

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    9x16
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    6.0
  • l1 ±0.5
    16.0
Clevis Joint with Retention Clips M10x1.25 10x40 40.0 303 Stainless Steel

20759896

Price Range
£ 23.40 - £ 14.04

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    10x40
  • Thread hand
    Right Hand
  • Thread Type
    Fine
  • d1 tol. H9
    10.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M12x1.25 12x24 24.0 303 Stainless Steel

20759919

Price Range
£ 30.92 - £ 18.55

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x24
  • Thread hand
    Right Hand
  • Thread Type
    Fine
  • d1 tol. H9
    12.0
  • l1 ±0.5
    24.0
Clevis Joint with Retention Clips M12 12x24 24.0 303 Stainless Steel

20759902

Price Range
£ 30.92 - £ 18.55

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x24
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    12.0
  • l1 ±0.5
    24.0
Clevis Joint with Retention Clips M10x1.25 10x20 20.0 303 Stainless Steel

20760076

Price Range
£ 17.61 - £ 10.57

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    10x20
  • Thread hand
    Left Hand
  • Thread Type
    Fine
  • d1 tol. H9
    10.0
  • l1 ±0.5
    20.0
Clevis Joint with Retention Clips M10x1.25 10x40 40.0 303 Stainless Steel

20760090

Price Range
£ 23.40 - £ 14.04

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    10x40
  • Thread hand
    Left Hand
  • Thread Type
    Fine
  • d1 tol. H9
    10.0
  • l1 ±0.5
    40.0
Clevis Joint with Retention Clips M12x1.25 12x48 48.0 303 Stainless Steel

20760137

Price Range
£ 34.51 - £ 20.71

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x48
  • Thread hand
    Left Hand
  • Thread Type
    Fine
  • d1 tol. H9
    12.0
  • l1 ±0.5
    48.0
Clevis Joint with Retention Clips M12 12x48 48.0 303 Stainless Steel

20760120

Price Range
£ 34.51 - £ 20.71

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    12x48
  • Thread hand
    Left Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    12.0
  • l1 ±0.5
    48.0
Clevis Joint with Retention Clips M6 6x12 12.0 303 Stainless Steel

20760007

Price Range
£ 9.96 - £ 5.98

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    6x12
  • Thread hand
    Left Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    6.0
  • l1 ±0.5
    12.0
Clevis Joint with Retention Clips M16 16x32 32.0 303 Stainless Steel

20760144

Price Range
£ 55.64 - £ 33.38

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    16x32
  • Thread hand
    Left Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    16.0
  • l1 ±0.5
    32.0
Clevis Joint with Retention Clips M6 6x24 24.0 303 Stainless Steel

20759810

Price Range
£ 10.04 - £ 6.02

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    6x24
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    6.0
  • l1 ±0.5
    24.0
Clevis Joint with Retention Clips M5 5x20 20.0 303 Stainless Steel

20759797

Price Range
£ 8.79 - £ 5.27

Stock Levels
Request the lead time here
Attributes
  • Clevis Size
    5x20
  • Thread hand
    Right Hand
  • Thread Type
    Coarse
  • d1 tol. H9
    5.0
  • l1 ±0.5
    20.0
