Assembly Pins

In production

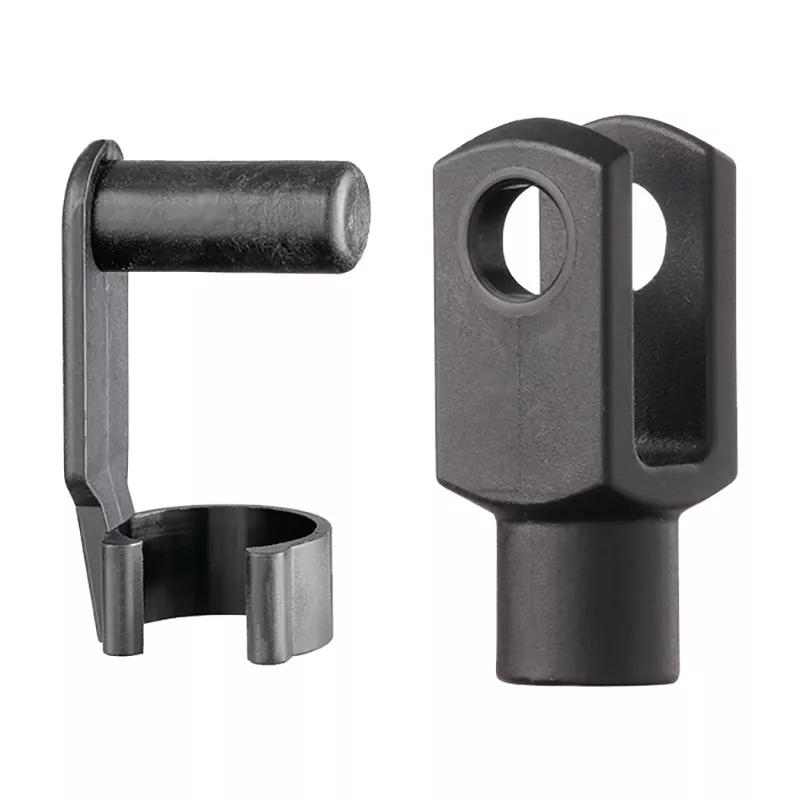

Stainless Steel Assembly pins made for use with Clevis Fasteners.

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 1 working days.

58 results

Sort by

Product SKUs information
Item Code	Price range	Availability	Pin Diameter	Head Height	Head Diameter	View
	£ 13.8338 - £ 13.8338	Request the lead time here	0.394 in 10.0 mm	0.276 in 7.0 mm	0.591 in 15.0 mm

	£ 19.8886 - £ 19.8886	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

1504228	£ 12.9256 - £ 12.9256	Request the lead time here	0.394 in 10.0 mm	0.276 in 7.0 mm	0.591 in 15.0 mm

	£ 23.0213 - £ 23.0213	Request the lead time here	0.787 in 20.0 mm	0.354 in 9.0 mm	1.024 in 26.0 mm

	£ 11.6488 - £ 11.6488	Request the lead time here	0.315 in 8.0 mm	0.276 in 7.0 mm	0.472 in 12.0 mm

	£ 14.6104 - £ 14.6104	Request the lead time here	0.394 in 10.0 mm	0.276 in 7.0 mm	0.591 in 15.0 mm

	£ 12.9519 - £ 12.9519	Request the lead time here	0.315 in 8.0 mm	0.276 in 7.0 mm	0.472 in 12.0 mm

	£ 14.3735 - £ 14.3735	Request the lead time here	0.472 in 12.0 mm	0.354 in 9.0 mm	0.669 in 17.0 mm

1504260	£ 20.3624 - £ 20.3624	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

	£ 19.441 - £ 19.441	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

	£ 12.4254 - £ 12.4254	Request the lead time here	0.394 in 10.0 mm	0.276 in 7.0 mm	0.591 in 15.0 mm

	£ 21.2443 - £ 21.2443	Request the lead time here	0.787 in 20.0 mm	0.354 in 9.0 mm	1.024 in 26.0 mm

	£ 21.5734 - £ 21.5734	Request the lead time here	0.787 in 20.0 mm	0.354 in 9.0 mm	1.024 in 26.0 mm

	£ 12.0963 - £ 12.0963	Request the lead time here	0.315 in 8.0 mm	0.276 in 7.0 mm	0.472 in 12.0 mm

	£ 12.0042 - £ 12.0042	Request the lead time here	0.315 in 8.0 mm	0.276 in 7.0 mm	0.472 in 12.0 mm

	£ 20.7968 - £ 20.7968	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

	£ 19.2436 - £ 19.2436	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

	£ 23.6004 - £ 23.6004	Request the lead time here	0.787 in 20.0 mm	0.354 in 9.0 mm	1.024 in 26.0 mm

	£ 18.1511 - £ 18.1511	Request the lead time here	0.63 in 16.0 mm	0.354 in 9.0 mm	0.866 in 22.0 mm

	£ 15.3475 - £ 15.3475	Request the lead time here	0.472 in 12.0 mm	0.354 in 9.0 mm	0.669 in 17.0 mm

# per page

Assembly Pin 10.0 mm 55.0 mm 15.0 mm Stainless Steel

Price Range: £ 13.8338 - £ 13.8338
Stock Levels: Request the lead time here

Attributes

Head Diameter

15.0 mm

Head Height

7.0 mm

Length Under Head

61.0 mm

Pin Diameter

10.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 16.0 mm 70.0 mm 22.0 mm Stainless Steel

Price Range: £ 19.8886 - £ 19.8886
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

78.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 10.0 mm 30.0 mm 15.0 mm Stainless Steel

Price Range: £ 12.9256 - £ 12.9256
Stock Levels: Request the lead time here

Attributes

Head Diameter

15.0 mm

Head Height

7.0 mm

Length Under Head

36.0 mm

Pin Diameter

10.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 20.0 mm 80.0 mm 26.0 mm Stainless Steel

Price Range: £ 23.0213 - £ 23.0213
Stock Levels: Request the lead time here

Attributes

Head Diameter

26.0 mm

Head Height

9.0 mm

Length Under Head

90.5 mm

Pin Diameter

20.0 mm

Pin Hole Diameter

4.5 mm

Assembly Pin 8.0 mm 24.0 mm 12.0 mm Stainless Steel

Price Range: £ 11.6488 - £ 11.6488
Stock Levels: Request the lead time here

Attributes

Head Diameter

12.0 mm

Head Height

7.0 mm

Length Under Head

29.5 mm

Pin Diameter

8.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 10.0 mm 70.0 mm 15.0 mm Stainless Steel

Price Range: £ 14.6104 - £ 14.6104
Stock Levels: Request the lead time here

Attributes

Head Diameter

15.0 mm

Head Height

7.0 mm

Length Under Head

76.0 mm

Pin Diameter

10.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 8.0 mm 55.0 mm 12.0 mm Stainless Steel

Price Range: £ 12.9519 - £ 12.9519
Stock Levels: Request the lead time here

Attributes

Head Diameter

12.0 mm

Head Height

7.0 mm

Length Under Head

60.5 mm

Pin Diameter

8.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 12.0 mm 24.0 mm 17.0 mm Stainless Steel

Price Range: £ 14.3735 - £ 14.3735
Stock Levels: Request the lead time here

Attributes

Head Diameter

17.0 mm

Head Height

9.0 mm

Length Under Head

31.0 mm

Pin Diameter

12.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 16.0 mm 80.0 mm 22.0 mm Stainless Steel

Price Range: £ 20.3624 - £ 20.3624
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

88.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 16.0 mm 60.0 mm 22.0 mm Stainless Steel

Price Range: £ 19.441 - £ 19.441
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

68.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 10.0 mm 20.0 mm 15.0 mm Stainless Steel

Price Range: £ 12.4254 - £ 12.4254
Stock Levels: Request the lead time here

Attributes

Head Diameter

15.0 mm

Head Height

7.0 mm

Length Under Head

26.0 mm

Pin Diameter

10.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 20.0 mm 45.0 mm 26.0 mm Stainless Steel

Price Range: £ 21.2443 - £ 21.2443
Stock Levels: Request the lead time here

Attributes

Head Diameter

26.0 mm

Head Height

9.0 mm

Length Under Head

55.5 mm

Pin Diameter

20.0 mm

Pin Hole Diameter

4.5 mm

Assembly Pin 20.0 mm 50.0 mm 26.0 mm Stainless Steel

Price Range: £ 21.5734 - £ 21.5734
Stock Levels: Request the lead time here

Attributes

Head Diameter

26.0 mm

Head Height

9.0 mm

Length Under Head

60.5 mm

Pin Diameter

20.0 mm

Pin Hole Diameter

4.5 mm

Assembly Pin 8.0 mm 32.0 mm 12.0 mm Stainless Steel

Price Range: £ 12.0963 - £ 12.0963
Stock Levels: Request the lead time here

Attributes

Head Diameter

12.0 mm

Head Height

7.0 mm

Length Under Head

37.5 mm

Pin Diameter

8.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 8.0 mm 30.0 mm 12.0 mm Stainless Steel

Price Range: £ 12.0042 - £ 12.0042
Stock Levels: Request the lead time here

Attributes

Head Diameter

12.0 mm

Head Height

7.0 mm

Length Under Head

35.5 mm

Pin Diameter

8.0 mm

Pin Hole Diameter

2.5 mm

Assembly Pin 16.0 mm 90.0 mm 22.0 mm Stainless Steel

Price Range: £ 20.7968 - £ 20.7968
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

98.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 16.0 mm 55.0 mm 22.0 mm Stainless Steel

Price Range: £ 19.2436 - £ 19.2436
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

63.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 20.0 mm 90.0 mm 26.0 mm Stainless Steel

Price Range: £ 23.6004 - £ 23.6004
Stock Levels: Request the lead time here

Attributes

Head Diameter

26.0 mm

Head Height

9.0 mm

Length Under Head

100.5 mm

Pin Diameter

20.0 mm

Pin Hole Diameter

4.5 mm

Assembly Pin 16.0 mm 32.0 mm 22.0 mm Stainless Steel

Price Range: £ 18.1511 - £ 18.1511
Stock Levels: Request the lead time here

Attributes

Head Diameter

22.0 mm

Head Height

9.0 mm

Length Under Head

40.0 mm

Pin Diameter

16.0 mm

Pin Hole Diameter

3.5 mm

Assembly Pin 12.0 mm 45.0 mm 17.0 mm Stainless Steel

Price Range: £ 15.3475 - £ 15.3475
Stock Levels: Request the lead time here

Attributes

Head Diameter

17.0 mm

Head Height

9.0 mm

Length Under Head

52.0 mm

Pin Diameter

12.0 mm

Pin Hole Diameter

2.5 mm
