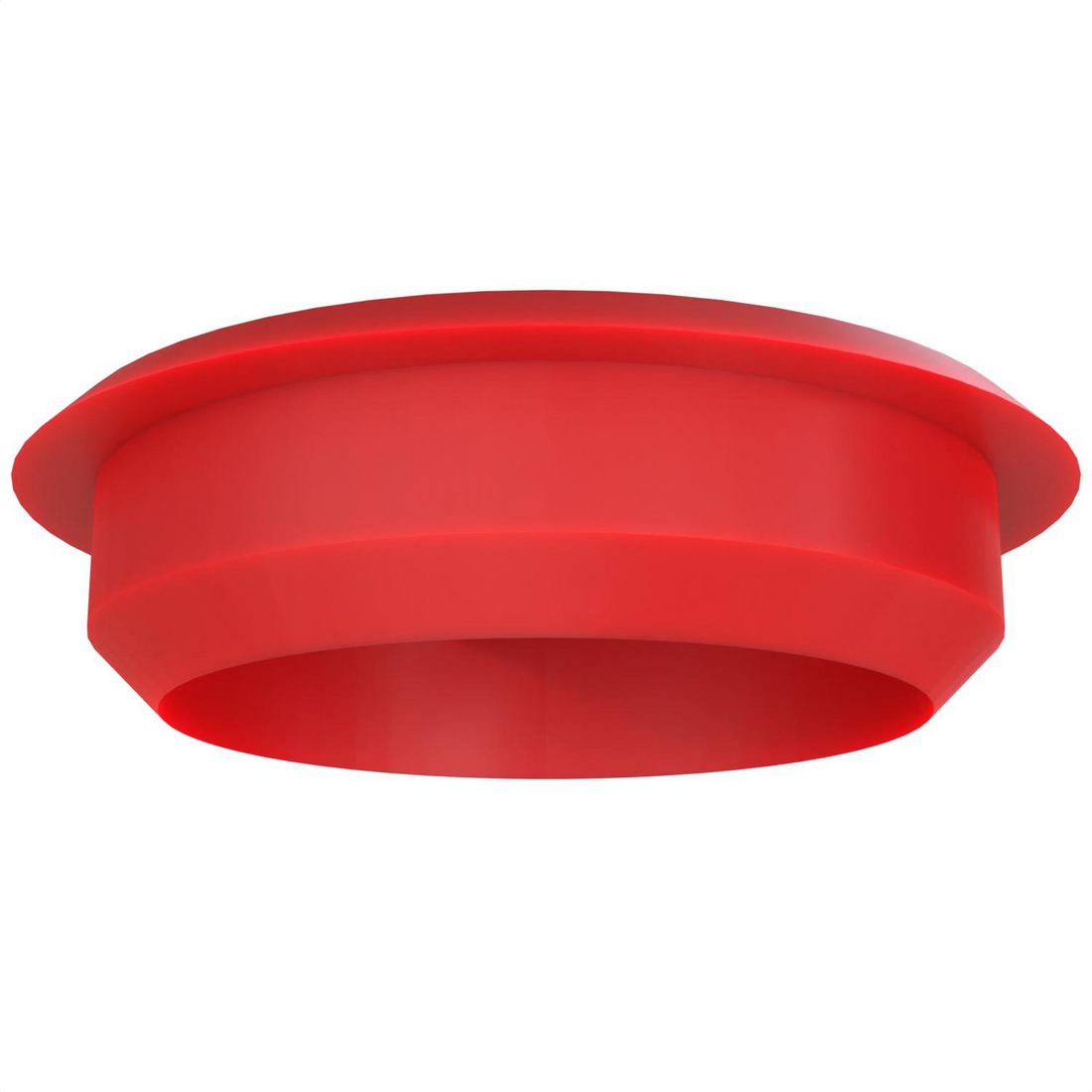

Snap Fit Plugs
In stock
These Snap Fit Plugs are designed to facilitate the application and removal on a component. They protect the aperture from ingress of contaminants like dirt, dust, and debris.
Easy to install and remove; once pushed into position, a single twist provides a secure and snug fit. A central tab at the top provides a strong grip for tightening and removal. The range is suitable for hydraulic fittings with Metric, BSP, UNF, and JIC threads.
Each plug covers a range of different thread sizes and styles.
Material: LDPE - PIR, LDPE Colour: Red, Yellow, Blue Series Code: SR1008, SRTFUP, SR1119, SR1010
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 1 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Price range | Availability | Thread Size | Colour | d | h | D | Thread Standard | Type | View | |
|---|---|---|---|---|---|---|---|---|---|---|
| £ 0.0827 - £ 0.2118 | Request the lead time here |
1/2 in BSP/GAS; M20
|
Red
|
21.3 mm
|
5.0 mm
|
21.3 mm
|
JIC Threads
|
|
||
| 12622 | £ 0.1658 - £ 0.4252 | 400 In stock |
1 1/8 in BSP/GAS; 1 1/2 in; 1 3/8 in UNF/JIC; M36
|
Red
|
35.7 mm
|
5.0 mm
|
39.7 mm
|
JIC Threads
|
|
|
| £ 0.1406 - £ 0.3614 | Request the lead time here |
1 in BSP/GAS; 1 5/16 in UNF/JIC; M32
|
Red
|
32.0 mm
|
5.0 mm
|
35.6 mm
|
JIC Threads
|
|
||
| £ 0.0592 - £ 0.1552 | 6000 In stock |
5/8-14 in
|
Yellow
|
14.2 mm
|
7.4 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0656 - £ 0.173 | Request the lead time here |
3/4-14 in
|
Yellow
|
17.2 mm
|
7.4 mm
|
|
UNF Threads
|
1
|
||
| £ 0.1445 - £ 0.4411 | Request the lead time here |
7/16
|
Yellow
|
9.7 mm
|
6.9 mm
|
|
UNF Threads
|
1
|
||
| £ 0.3614 - £ 0.8424 | Request the lead time here |
1-5/8
|
Yellow
|
38.7 mm
|
11.7 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0671 - £ 0.1756 | Request the lead time here |
13/16
|
Yellow
|
18.6 mm
|
7.4 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0687 - £ 0.194 | Request the lead time here |
1 in
|
Blue
|
23.5 mm
|
10.0 mm
|
31.0 mm
|
JIC
|
1
|
||
| £ 0.0644 - £ 0.1693 | Request the lead time here |
Without Lugs
|
Red
|
25.5 mm
|
6.1 mm
|
30.0 mm
|
|
2
|
||
| £ 0.1516 - £ 0.4252 | 2400 In stock |
3/8-19 in
|
Yellow
|
8.2 mm
|
6.0 mm
|
|
UNF Threads
|
1
|
||
| £ 0.472 - £ 1.2358 | 400 In stock |
1-7/8
|
Yellow
|
45.1 mm
|
11.7 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0715 - £ 0.1958 | 4050 In stock |
7/8-14 in
|
Yellow
|
20.3 mm
|
7.4 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0776 - £ 0.212 | 36800 In stock |
1 1/16 in
|
Blue
|
24.8 mm
|
10.0 mm
|
35.5 mm
|
JIC
|
1
|
||
| 12517 | £ 0.0525 - £ 0.1429 | 1500 In stock |
7/8 in
|
Blue
|
20.3 mm
|
10.4 mm
|
26.6 mm
|
JIC
|
1
|
|
| £ 0.0398 - £ 0.1089 | Request the lead time here |
1/2 in
|
Blue
|
11.0 mm
|
7.0 mm
|
17.0 mm
|
JIC
|
1
|
||
| £ 0.1262 - £ 0.3322 | Request the lead time here |
Without Lugs
|
Red
|
30.9 mm
|
8.0 mm
|
35.0 mm
|
|
2
|
||
| £ 0.0422 - £ 0.1153 | 1000 In stock |
5/8 in
|
Blue
|
14.3 mm
|
6.5 mm
|
23.7 mm
|
JIC
|
1
|
||
| £ 0.0429 - £ 0.093 | 4000 In stock |
Without Lugs
|
Red
|
11.9 mm
|
6.3 mm
|
16.4 mm
|
|
2
|
||
| £ 0.2225 - £ 0.6139 | Request the lead time here |
1-5/16
|
Yellow
|
30.9 mm
|
8.6 mm
|
|
UNF Threads
|
1
|
||
Snap Fit Plug Metric;BSP Red LDPE
- Price Range
- £ 0.2118 - £ 0.0827
- Stock Levels
- Request the lead time here
Attributes
-
D
21.3 mm -
d
21.3 mm -
h
5.0 mm -
Thread Size
1/2 in BSP/GAS; M20 -
Thread Standard
Metric Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.4252 - £ 0.1658
- Stock Levels
- 400 In stock
Attributes
-
D
39.7 mm -
d
35.7 mm -
h
5.0 mm -
Thread Size
1 1/8 in BSP/GAS; 1 1/2 in; 1 3/8 in UNF/JIC; M36 -
Thread Standard
Metric Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.3614 - £ 0.1406
- Stock Levels
- Request the lead time here
Attributes
-
D
35.6 mm -
d
32.0 mm -
h
5.0 mm -
Thread Size
1 in BSP/GAS; 1 5/16 in UNF/JIC; M32 -
Thread Standard
UNF Threads
Snap Fit Plug UNF 5/8" UNF Yellow LDPE
- Price Range
- £ 0.1552 - £ 0.0592
- Stock Levels
- 6000 In stock
Attributes
-
d
14.2 mm -
h
7.4 mm -
Thread Size
5/8-14 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 3/4" UNF Yellow LDPE
- Price Range
- £ 0.173 - £ 0.0656
- Stock Levels
- Request the lead time here
Attributes
-
d
17.2 mm -
h
7.4 mm -
Thread Size
3/4-14 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 7/16" UNF Yellow LDPE
- Price Range
- £ 0.4411 - £ 0.1445
- Stock Levels
- Request the lead time here
Attributes
-
d
9.7 mm -
h
6.9 mm -
Thread Size
7/16 -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 1-5/8" UNF Yellow LDPE
- Price Range
- £ 0.8424 - £ 0.3614
- Stock Levels
- Request the lead time here
Attributes
-
d
38.7 mm -
h
11.7 mm -
Thread Size
1-5/8 -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 13/16" UNF Yellow LDPE
- Price Range
- £ 0.1756 - £ 0.0671
- Stock Levels
- Request the lead time here
Attributes
-
d
18.6 mm -
h
7.4 mm -
Thread Size
13/16 -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 1 in 23.5 mm Blue LDPE
- Price Range
- £ 0.194 - £ 0.0687
- Stock Levels
- Request the lead time here
Attributes
-
D
31.0 mm -
d
23.5 mm -
h
10.0 mm -
Thread Size
1 in -
Thread Standard
UNF
Push-In Plug 25.5 mm 6.1 mm 30.0 mm LDPE Red
- Price Range
- £ 0.1693 - £ 0.0644
- Stock Levels
- Request the lead time here
Attributes
-
D
30.0 mm -
d
25.5 mm -
h
6.1 mm -
Thread Size
Without Lugs -
Colour
Red
Snap Fit Plug UNF 3/8" UNF Yellow LDPE
- Price Range
- £ 0.4252 - £ 0.1516
- Stock Levels
- 2400 In stock
Attributes
-
d
8.2 mm -
h
6.0 mm -
Thread Size
3/8-19 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 1-7/8" UNF Yellow LDPE
- Price Range
- £ 1.2358 - £ 0.472
- Stock Levels
- 400 In stock
Attributes
-
d
45.1 mm -
h
11.7 mm -
Thread Size
1-7/8 -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 7/8" UNF Yellow LDPE
- Price Range
- £ 0.1958 - £ 0.0715
- Stock Levels
- 4050 In stock
Attributes
-
d
20.3 mm -
h
7.4 mm -
Thread Size
7/8-14 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 1 1/16 in 24.8 mm Blue LDPE
- Price Range
- £ 0.212 - £ 0.0776
- Stock Levels
- 36800 In stock
Attributes
-
D
35.5 mm -
d
24.8 mm -
h
10.0 mm -
Thread Size
1 1/16 in -
Thread Standard
JIC
Snap Fit Plug UNF 7/8 in 20.3 mm Blue LDPE
- Price Range
- £ 0.1429 - £ 0.0525
- Stock Levels
- 1500 In stock
Attributes
-
D
26.6 mm -
d
20.3 mm -
h
10.4 mm -
Thread Size
7/8 in -
Thread Standard
UNF
Snap Fit Plug UNF 1/2 in 11.0 mm Blue LDPE
- Price Range
- £ 0.1089 - £ 0.0398
- Stock Levels
- Request the lead time here
Attributes
-
D
17.0 mm -
d
11.0 mm -
h
7.0 mm -
Thread Size
1/2 in -
Thread Standard
UNF
Push-In Plug 30.9 mm 8.0 mm 35.0 mm LDPE Red
- Price Range
- £ 0.3322 - £ 0.1262
- Stock Levels
- Request the lead time here
Attributes
-
D
35.0 mm -
d
30.9 mm -
h
8.0 mm -
Thread Size
Without Lugs -
Colour
Red
Snap Fit Plug UNF 5/8 in 14.3 mm Blue LDPE
- Price Range
- £ 0.1153 - £ 0.0422
- Stock Levels
- 1000 In stock
Attributes
-
D
23.7 mm -
d
14.3 mm -
h
6.5 mm -
Thread Size
5/8 in -
Thread Standard
UNF
Push-In Plug 11.9 mm 6.3 mm 16.4 mm LDPE Red
- Price Range
- £ 0.093 - £ 0.0429
- Stock Levels
- 4000 In stock
Attributes
-
D
16.4 mm -
d
11.9 mm -
h
6.3 mm -
Thread Size
Without Lugs -
Colour
Red
Snap Fit Plug UNF 1-5/16" UNF Yellow LDPE
- Price Range
- £ 0.6139 - £ 0.2225
- Stock Levels
- Request the lead time here
Attributes
-
d
30.9 mm -
h
8.6 mm -
Thread Size
1-5/16 -
Thread Standard
UNF Threads -
Colour
Yellow
