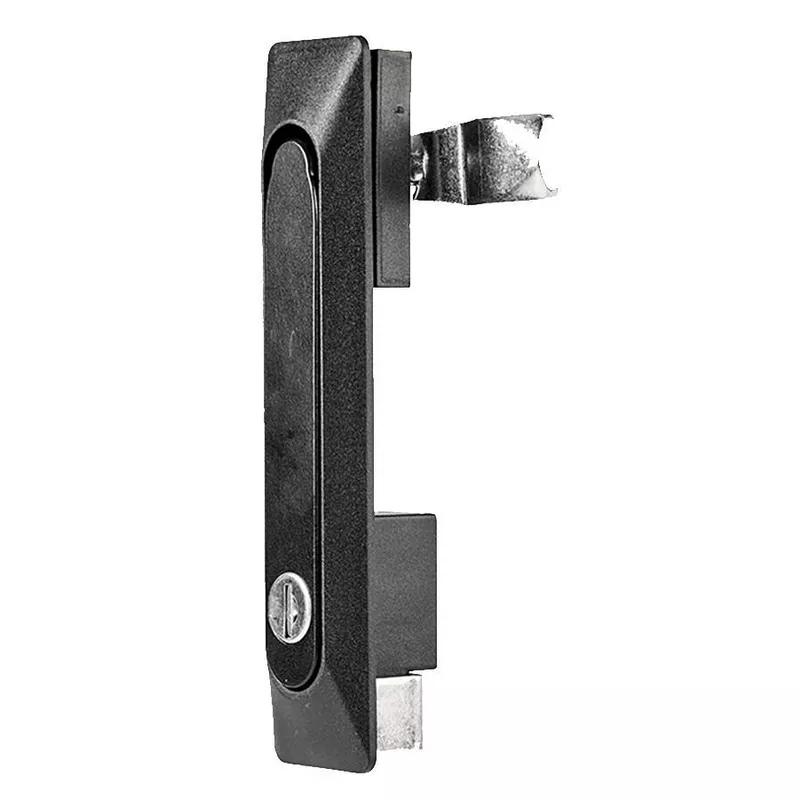

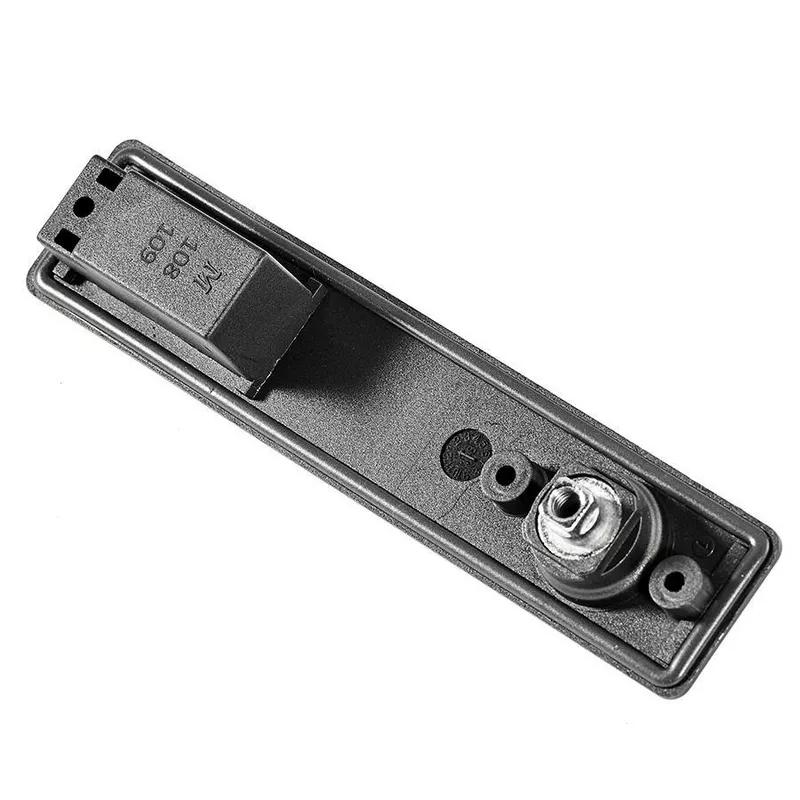

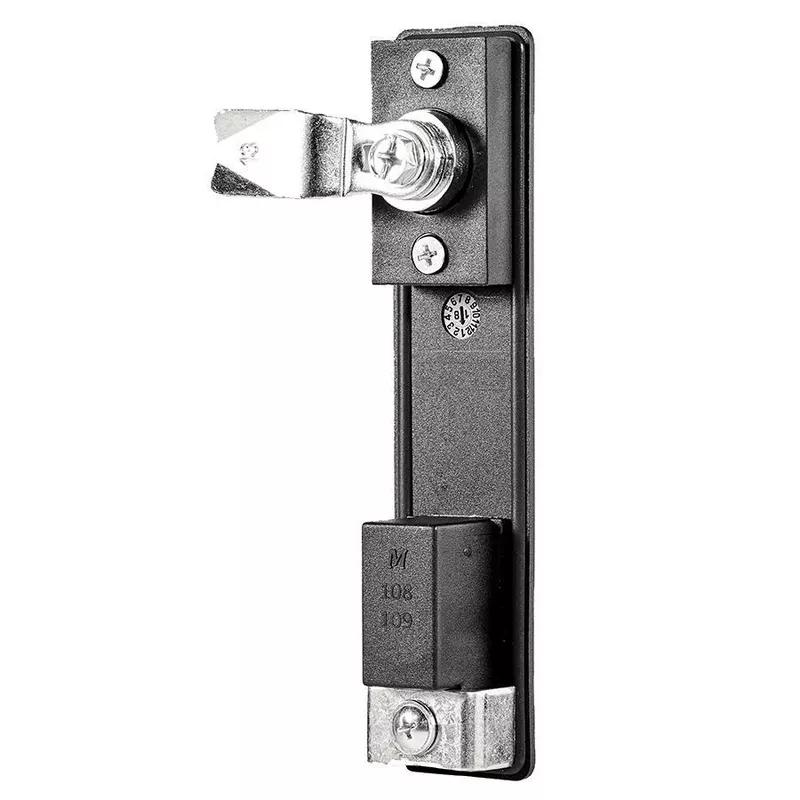

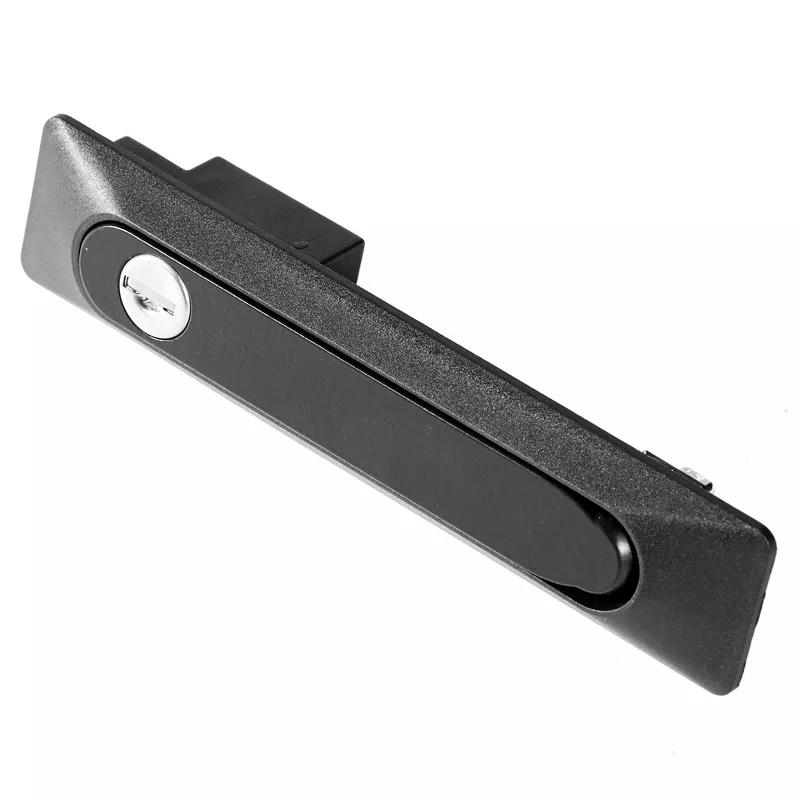

Swing Handle 24.5 mm 45.0 mm Keyed Alike (5333) Nylon Black
Lift and Turn Latches and Locks feature a low profile that can be stowed away when not in use. Features grip range adjustment, compression action and easy assembly. Ideal for a range of indoor and outdoor applications, including panels and enclosures. Several styles to choose from, with different key options and a choice of materials and finishes.
Loading...
| Quantity | Unit price |
|---|---|
| 1 - 24 | £ 26.8236 |
| 25 - 49 | £ 19.1597 |
| 50 - 99 | £ 18.7687 |
| 100 + | £ 18.3916 |
Useful Information
Documents
Specifications
Imperial
Metric
| Distance Between Fixing Holes | 100.0 mm |
|---|---|
| Face Length | 160.0 mm |
| Face Width | 35.0 mm |
| Cam Length | 45.0 mm |
| Housing Height | 18.5 mm |
| Mounting Hole Length | 50.0 mm |
| Mounting Hole Width | 25.0 mm |
| Colour | Black |
| Handle Material | Die Cast Zinc Alloy |
| Body Material | Nylon |
| Coating | Powder Coated |
| Locking Mechanism | Keyed Alike (5333) |
| Type | 1 |
| Commodity Code | 8301300000 |
