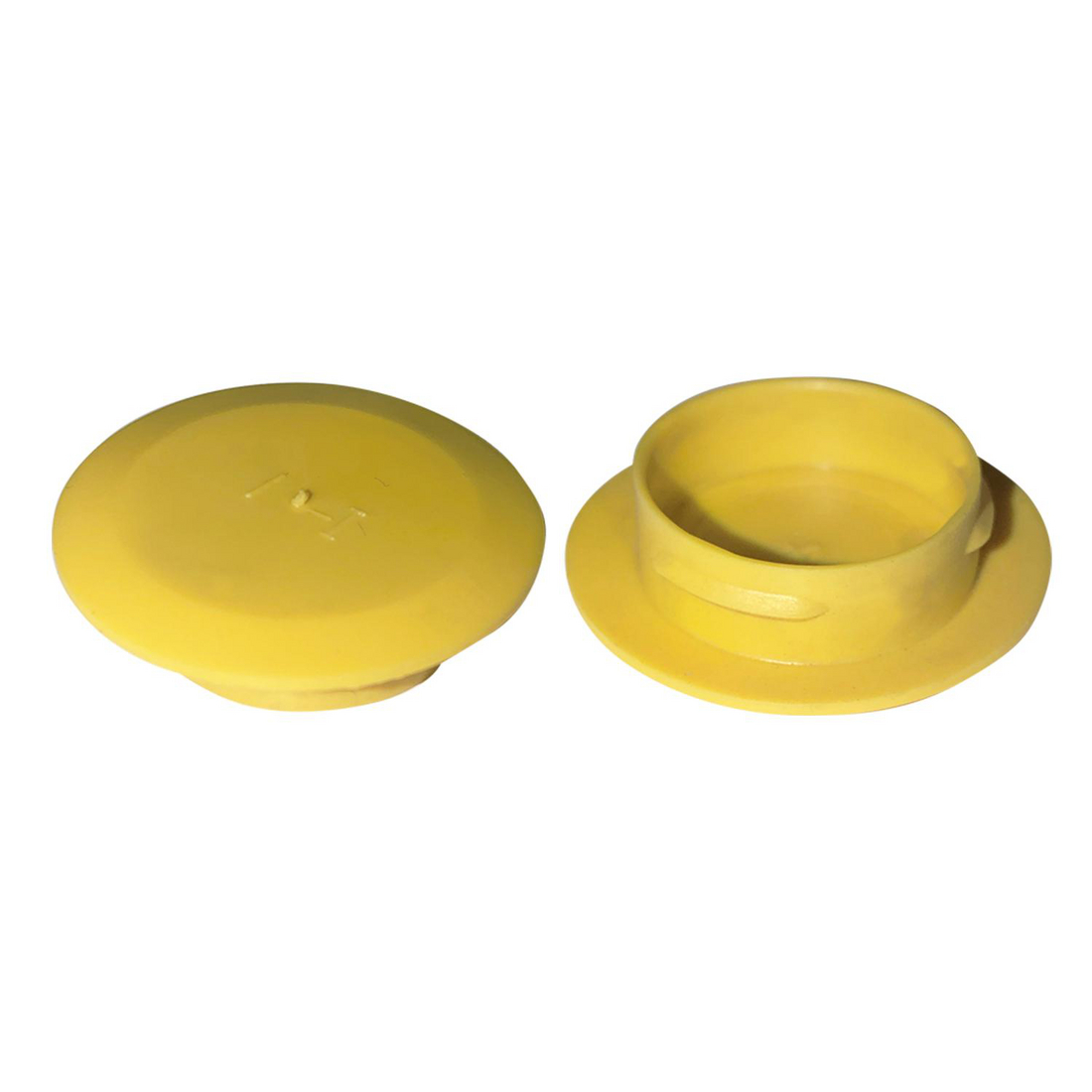

Snap Fit Plugs
In stock
These Snap Fit Plugs are designed to facilitate the application and removal on a component. They protect the aperture from ingress of contaminants like dirt, dust, and debris.
Easy to install and remove; once pushed into position, a single twist provides a secure and snug fit. A central tab at the top provides a strong grip for tightening and removal. The range is suitable for hydraulic fittings with Metric, BSP, UNF, and JIC threads.
Each plug covers a range of different thread sizes and styles.
Material: LDPE - PIR, LDPE Colour: Red, Yellow, Blue Series Code: SR1008, SRTFUP, SR1119, SR1010
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 1 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Price range | Availability | Thread Size | Colour | d | h | D | Thread Standard | Type | View | |
|---|---|---|---|---|---|---|---|---|---|---|
| £ 0.1445 - £ 0.4411 | Request the lead time here |
7/16 in
|
Yellow
|
9.7 mm
|
6.9 mm
|
|
UNF Threads
|
1
|
||
| £ 0.1406 - £ 0.3614 | 7750 In stock |
1 in BSP/GAS; 1 5/16 in UNF/JIC; M32
|
Red
|
32.0 mm
|
5.0 mm
|
35.6 mm
|
JIC Threads
|
|
||
| £ 0.0827 - £ 0.2118 | 7000 In stock |
1/2 in BSP/GAS; M20
|
Red
|
21.3 mm
|
5.0 mm
|
21.3 mm
|
JIC Threads
|
|
||
| £ 0.0555 - £ 0.1376 | Request the lead time here |
1/8 in BSP/GAS; 7/16 in UNF/JIC; M10
|
Red
|
9.8 mm
|
4.0 mm
|
12.0 mm
|
JIC Threads
|
|
||
| £ 0.0746 - £ 0.1905 | 400 In stock |
3/4 in UNF/JIC; M18
|
Red
|
18.3 mm
|
|
21.5 mm
|
BSP Threads
|
|
||
| £ 0.0606 - £ 0.1549 | 33960 In stock |
1/4 in BSP/GAS; 1/2 in UNF/JIC; M12; M13; M14
|
Red
|
13.1 mm
|
5.0 mm
|
13.1 mm
|
JIC Threads
|
|
||
| 12367 | £ 0.1002 - £ 0.2554 | 11200 In stock |
3/4 in BSP/GAS; 1 1/16 in UNF/JIC; M25; M26
|
Red
|
25.5 mm
|
5.0 mm
|
29.9 mm
|
JIC Threads
|
|
|
| 12368 | £ 0.1199 - £ 0.3083 | 2700 In stock |
7/8 in BSP/GAS; 1 1/8 in UNF/JIC; M28
|
Red
|
27.9 mm
|
7.0 mm
|
32.7 mm
|
JIC Threads
|
|
|
| £ 0.0626 - £ 0.1594 | Request the lead time here |
3/8 in BSP/GAS; 5/8 in UNF/JIC; M16
|
Red
|
16.5 mm
|
5.0 mm
|
16.5 mm
|
JIC Threads
|
|
||
| 12622 | £ 0.1658 - £ 0.4252 | 400 In stock |
1 1/8 in BSP/GAS; 1 1/2 in; 1 3/8 in UNF/JIC; M36
|
Red
|
35.7 mm
|
5.0 mm
|
39.7 mm
|
JIC Threads
|
|
|
| £ 0.0919 - £ 0.2341 | 500 In stock |
5/8 in BSP/GAS; 7/8 in UNF/JIC; M22
|
Red
|
22.4 mm
|
5.0 mm
|
25.8 mm
|
JIC Threads
|
|
||
| £ 0.1927 - £ 0.489 | 10000 In stock |
1 1/4 in BSP/GAS; 1 5/8 in UNF/JIC; M40; M42
|
Red
|
41.5 mm
|
5.0 mm
|
45.4 mm
|
JIC Threads
|
|
||
| £ 0.1545 - £ 0.2447 | Request the lead time here |
M24 x 1.5
|
Red
|
23.4 mm
|
5.0 mm
|
28.2 mm
|
Metric Threads
|
|
||
| £ 0.0776 - £ 0.212 | 16800 In stock |
1 1/16 in
|
Blue
|
24.8 mm
|
10.0 mm
|
35.5 mm
|
JIC
|
1
|
||
| 12517 | £ 0.0525 - £ 0.1429 | 1500 In stock |
7/8 in
|
Blue
|
20.3 mm
|
10.4 mm
|
26.6 mm
|
JIC
|
1
|
|
| £ 0.0644 - £ 0.1693 | Request the lead time here |
Without Lugs
|
Red
|
25.5 mm
|
6.1 mm
|
30.0 mm
|
|
2
|
||
| £ 0.1516 - £ 0.4252 | 2400 In stock |
3/8 in
|
Yellow
|
8.2 mm
|
6.0 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0574 - £ 0.1506 | Request the lead time here |
Without Lugs
|
Red
|
19.2 mm
|
7.0 mm
|
23.8 mm
|
|
2
|
||
| £ 0.1502 - £ 0.4119 | Request the lead time here |
1/4 in
|
Yellow
|
5.2 mm
|
5.6 mm
|
|
UNF Threads
|
1
|
||
| £ 0.0422 - £ 0.1153 | 1000 In stock |
5/8 in
|
Blue
|
14.3 mm
|
6.5 mm
|
23.7 mm
|
JIC
|
1
|
||
Snap Fit Plug UNF 7/16" UNF Yellow LDPE
- Price Range
- £ 0.4411 - £ 0.1445
- Stock Levels
- Request the lead time here
Attributes
-
d
9.7 mm -
h
6.9 mm -
Thread Size
7/16 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.3614 - £ 0.1406
- Stock Levels
- 7750 In stock
Attributes
-
D
35.6 mm -
d
32.0 mm -
h
5.0 mm -
Thread Size
1 in BSP/GAS; 1 5/16 in UNF/JIC; M32 -
Thread Standard
Metric Threads
Snap Fit Plug Metric;BSP Red LDPE
- Price Range
- £ 0.2118 - £ 0.0827
- Stock Levels
- 7000 In stock
Attributes
-
D
21.3 mm -
d
21.3 mm -
h
5.0 mm -
Thread Size
1/2 in BSP/GAS; M20 -
Thread Standard
UNF Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.1376 - £ 0.0555
- Stock Levels
- Request the lead time here
Attributes
-
D
12.0 mm -
d
9.8 mm -
h
4.0 mm -
Thread Size
1/8 in BSP/GAS; 7/16 in UNF/JIC; M10 -
Thread Standard
JIC Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.1905 - £ 0.0746
- Stock Levels
- 400 In stock
Attributes
-
D
21.5 mm -
d
18.3 mm -
Thread Size
3/4 in UNF/JIC; M18 -
Thread Standard
JIC Threads -
Thread Standard
Metric Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.1549 - £ 0.0606
- Stock Levels
- 33960 In stock
Attributes
-
D
13.1 mm -
d
13.1 mm -
h
5.0 mm -
Thread Size
1/4 in BSP/GAS; 1/2 in UNF/JIC; M12; M13; M14 -
Thread Standard
BSP Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.2554 - £ 0.1002
- Stock Levels
- 11200 In stock
Attributes
-
D
29.9 mm -
d
25.5 mm -
h
5.0 mm -
Thread Size
3/4 in BSP/GAS; 1 1/16 in UNF/JIC; M25; M26 -
Thread Standard
BSP Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.3083 - £ 0.1199
- Stock Levels
- 2700 In stock
Attributes
-
D
32.7 mm -
d
27.9 mm -
h
7.0 mm -
Thread Size
7/8 in BSP/GAS; 1 1/8 in UNF/JIC; M28 -
Thread Standard
JIC Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.1594 - £ 0.0626
- Stock Levels
- Request the lead time here
Attributes
-
D
16.5 mm -
d
16.5 mm -
h
5.0 mm -
Thread Size
3/8 in BSP/GAS; 5/8 in UNF/JIC; M16 -
Thread Standard
JIC Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.4252 - £ 0.1658
- Stock Levels
- 400 In stock
Attributes
-
D
39.7 mm -
d
35.7 mm -
h
5.0 mm -
Thread Size
1 1/8 in BSP/GAS; 1 1/2 in; 1 3/8 in UNF/JIC; M36 -
Thread Standard
UNF Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.2341 - £ 0.0919
- Stock Levels
- 500 In stock
Attributes
-
D
25.8 mm -
d
22.4 mm -
h
5.0 mm -
Thread Size
5/8 in BSP/GAS; 7/8 in UNF/JIC; M22 -
Thread Standard
JIC Threads
Snap Fit Plug Metric;UNF;BSP;JIC Red LDPE
- Price Range
- £ 0.489 - £ 0.1927
- Stock Levels
- 10000 In stock
Attributes
-
D
45.4 mm -
d
41.5 mm -
h
5.0 mm -
Thread Size
1 1/4 in BSP/GAS; 1 5/8 in UNF/JIC; M40; M42 -
Thread Standard
UNF Threads
Snap Fit Plug Metric Red LDPE
- Price Range
- £ 0.2447 - £ 0.1545
- Stock Levels
- Request the lead time here
Attributes
-
D
28.2 mm -
d
23.4 mm -
h
5.0 mm -
Thread Size
M24 x 1.5 -
Thread Standard
Metric Threads
Snap Fit Plug UNF 1 1/16 in 24.8 mm Blue LDPE
- Price Range
- £ 0.212 - £ 0.0776
- Stock Levels
- 16800 In stock
Attributes
-
D
35.5 mm -
d
24.8 mm -
h
10.0 mm -
Thread Size
1 1/16 in -
Thread Standard
JIC
Snap Fit Plug UNF 7/8 in 20.3 mm Blue LDPE
- Price Range
- £ 0.1429 - £ 0.0525
- Stock Levels
- 1500 In stock
Attributes
-
D
26.6 mm -
d
20.3 mm -
h
10.4 mm -
Thread Size
7/8 in -
Thread Standard
UNF
Push-In Plug 25.5 mm 6.1 mm 30.0 mm LDPE Red
- Price Range
- £ 0.1693 - £ 0.0644
- Stock Levels
- Request the lead time here
Attributes
-
D
30.0 mm -
d
25.5 mm -
h
6.1 mm -
Thread Size
Without Lugs -
Colour
Red
Snap Fit Plug UNF 3/8" UNF Yellow LDPE
- Price Range
- £ 0.4252 - £ 0.1516
- Stock Levels
- 2400 In stock
Attributes
-
d
8.2 mm -
h
6.0 mm -
Thread Size
3/8 in -
Thread Standard
UNF Threads -
Colour
Yellow
Push-In Plug 19.2 mm 7.0 mm 23.8 mm LDPE Red
- Price Range
- £ 0.1506 - £ 0.0574
- Stock Levels
- Request the lead time here
Attributes
-
D
23.8 mm -
d
19.2 mm -
h
7.0 mm -
Thread Size
Without Lugs -
Colour
Red
Snap Fit Plug UNF 1/4" UNF Yellow LDPE
- Price Range
- £ 0.4119 - £ 0.1502
- Stock Levels
- Request the lead time here
Attributes
-
d
5.2 mm -
h
5.6 mm -
Thread Size
1/4 in -
Thread Standard
UNF Threads -
Colour
Yellow
Snap Fit Plug UNF 5/8 in 14.3 mm Blue LDPE
- Price Range
- £ 0.1153 - £ 0.0422
- Stock Levels
- 1000 In stock
Attributes
-
D
23.7 mm -
d
14.3 mm -
h
6.5 mm -
Thread Size
5/8 in -
Thread Standard
UNF
