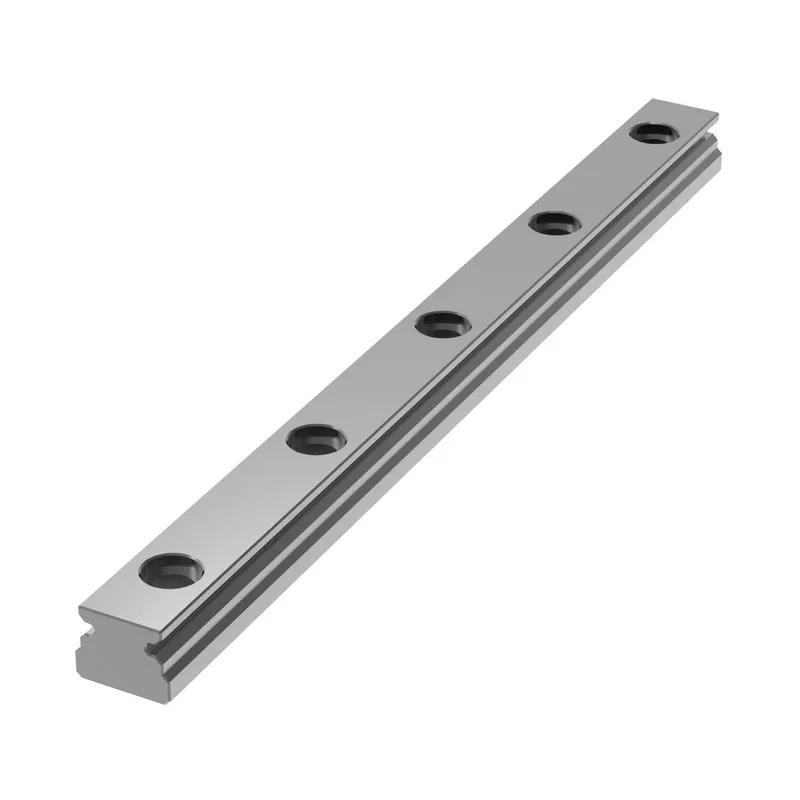

Miniature Linear Rail 15.0 190.0 Stainless Steel
This 15mm Miniature Linear Rail is used to support and steer moving loads. They are smaller and lighter than typical linear rails, making them appropriate for applications with restricted space and weight. Made of stainless steel for strength, stiffness, and corrosion resistance.
Useful Information
Documents
Specifications
Imperial
Metric

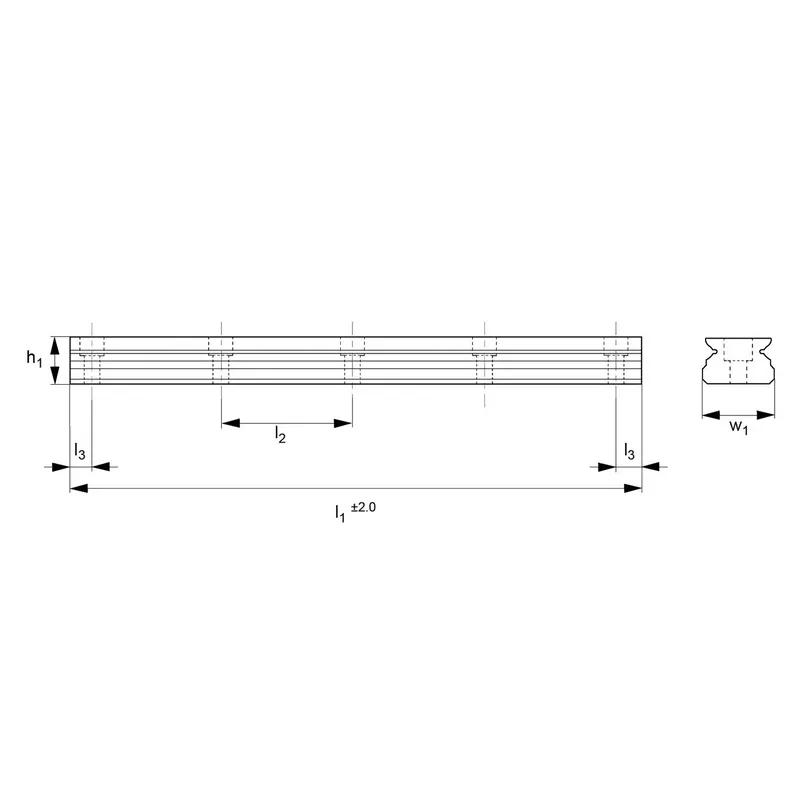

| Rail Type | Standard width |
|---|---|
| l1 | 190.0 |
| l2 | 40.0 |
| l3 | 15.0 |
| h1 | 9.5 |
| h2 | 4.5 |
| d1 | 3.5 |
| d2 | 6.0 |
| For screws | M3 |
| w1 | 15.0 |
| Material | Stainless Steel |
