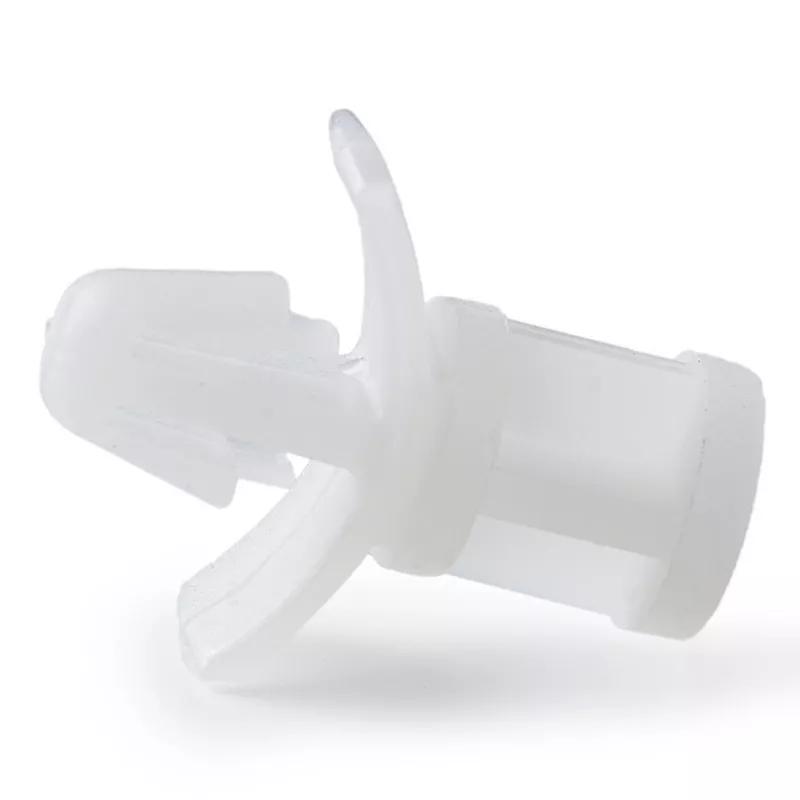

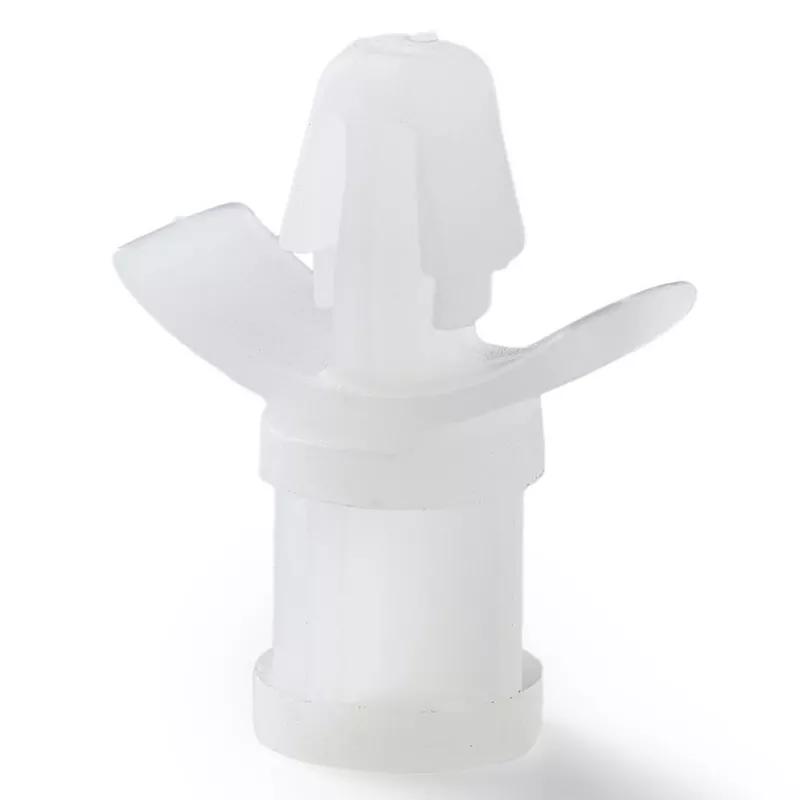

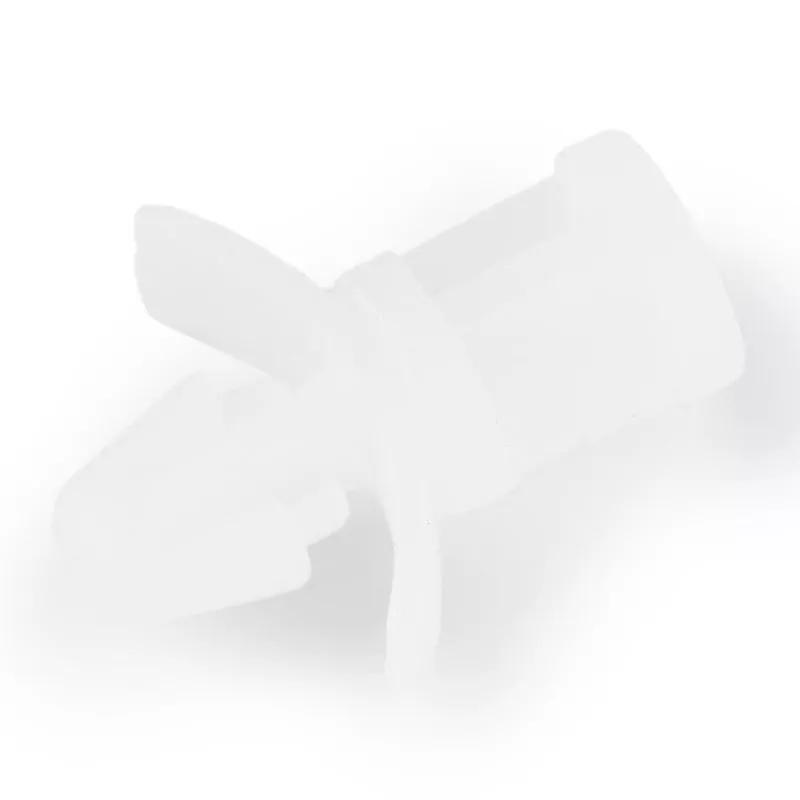

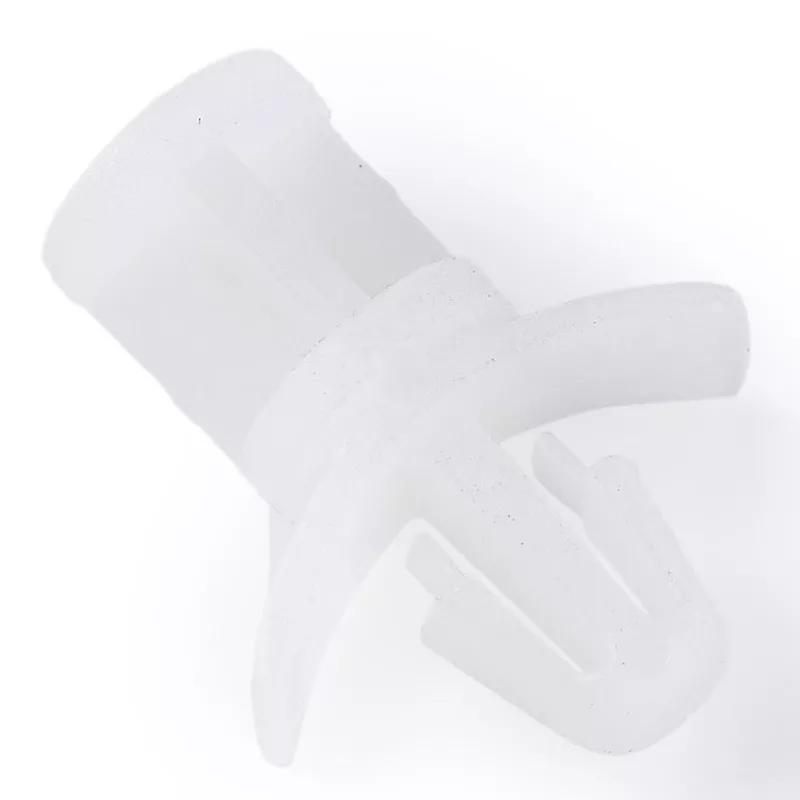

Snap Lock Support 9.5 mm PA UL94 V-0 Natural
This ribbed body spacer has a snap-in base with wings for added stability and a flat rest top. Perfect for boards that don't require fixing or larger boards that need extra support. This item is manufactured with material rated UL94 V-0
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | £ 0.1534 |
| 5000+ | £ 0.138 |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole Diameter | 4.8 mm |
| Fixing Type | Locking Arrowhead Fix |
| Body Diameter | 7.1 mm |
| Overall Width | 14.3 mm |
| Panel Thickness Range | 0.8 - 2.0 mm |
| Spacer Length | 9.5 mm |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-0 |
| Standard | RoHs |
| Standard | UL |
| Standard | RMS |
| Standard | REACH |
| Commodity Code | 3926909790 |
Legislation & Compliance
Country of origin (COO):
GBR
