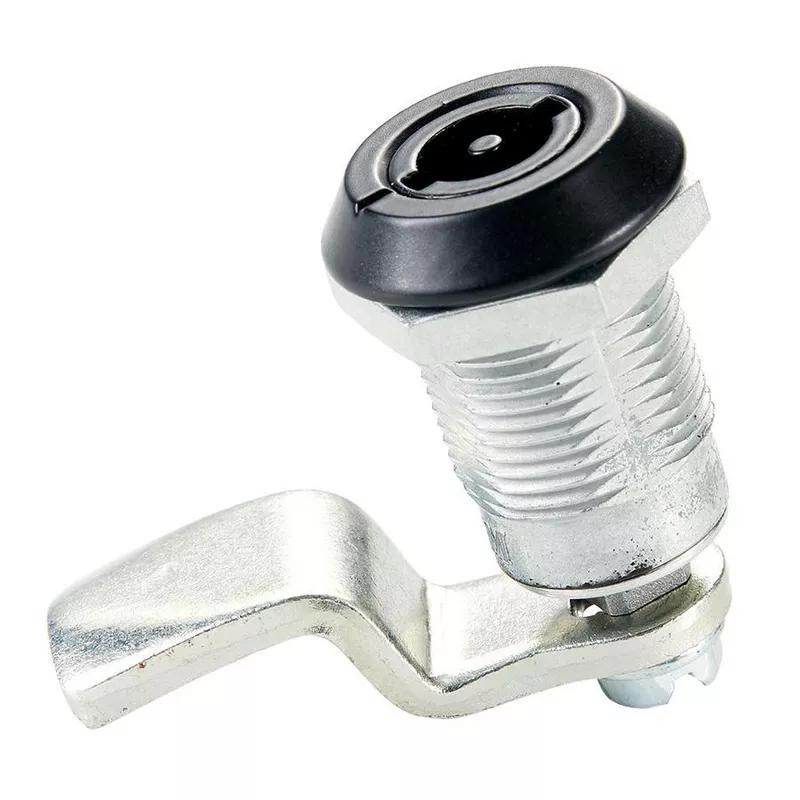

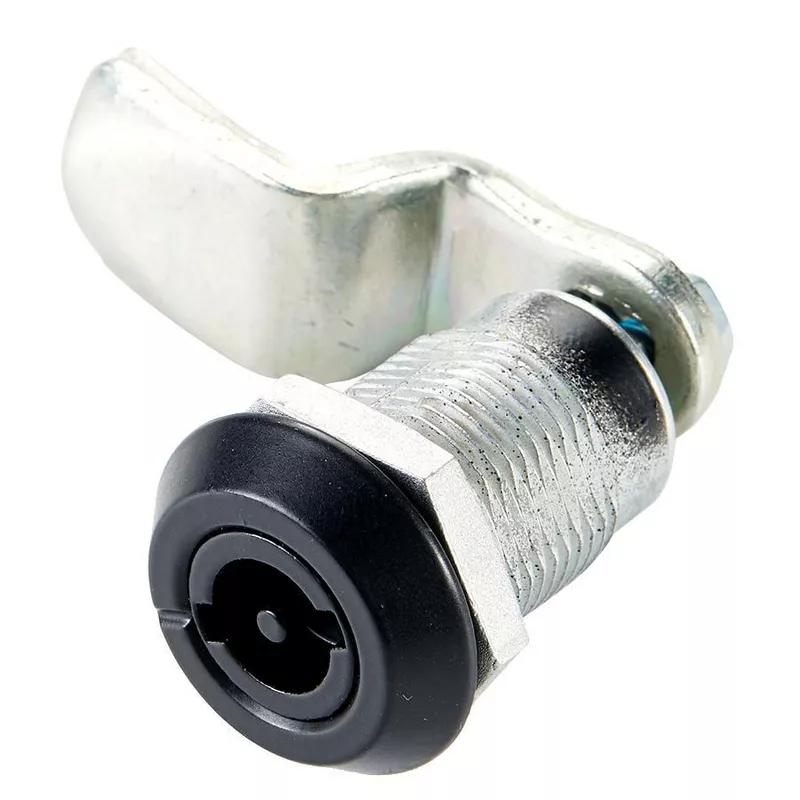

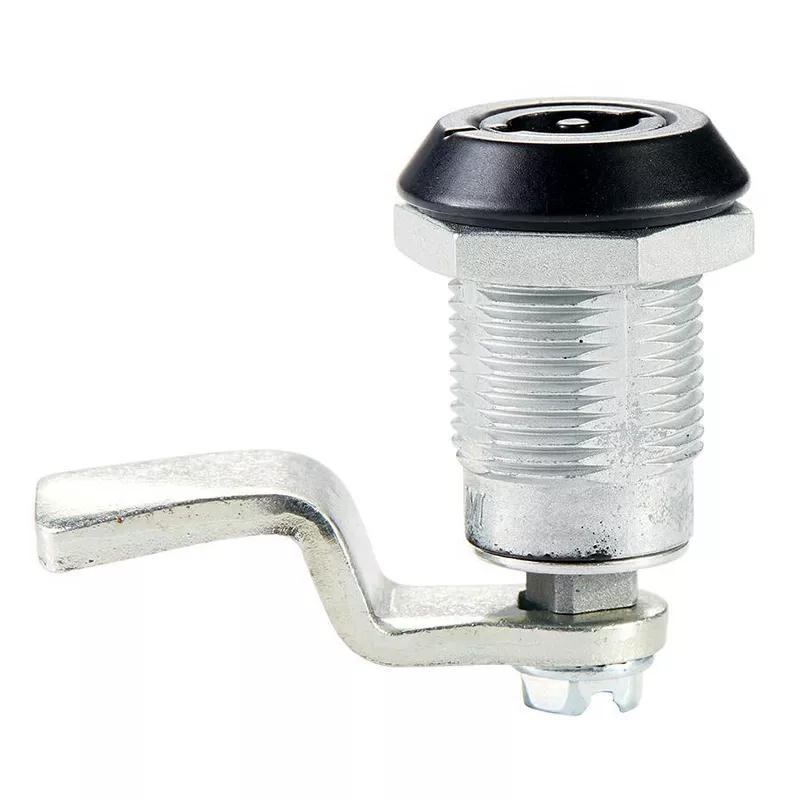

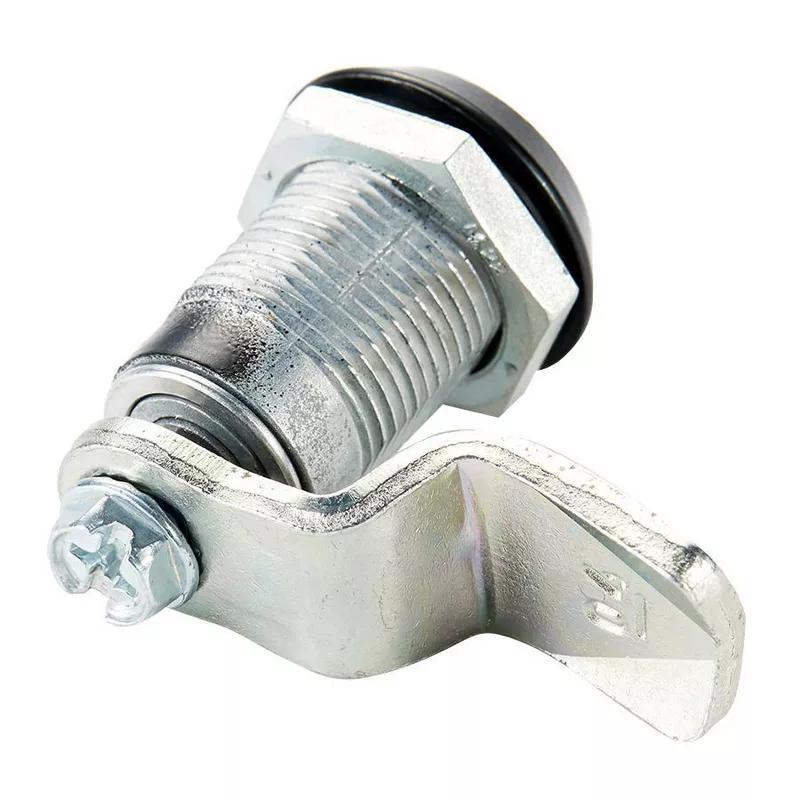

Compression Latch Double Bit Key 32.0 mm Zinc Alloy
Fixed Compression Cam Latches are a versatile, low-profile round design. Ideal for holding doors and panels shut while eliminating noises from vibration and panel movement. The added compression allows for secure closure when IP65/NEMA performance is required. Working temperature from -50 to +80 C. It comes in die cast zinc alloy with a black powder coated finish.
Useful Information
Documents
Specifications
Imperial
Metric
| Finish | Black Powder Coated |
|---|---|
| Latch Material | Die Cast Zinc Alloy |
| Cam Material | Die Cast Zinc Alloy |
| Housing Material | Die Cast Zinc Alloy |
| Key Type | Double Bit Key |
| Mounting Orientation | Left Handed |
| Maximum Compression | 6.0 mm |
| Head Diameter | 30.0 mm |
| Head Height | 6.0 mm |
| Cam Length | 45.0 mm |
| Housing Height | 32.0 mm |
| Mounting Hole Width | 20.2 mm |
| Mounting Hole Length | 22.2 mm |
| Commodity Code | 8301300000 |
