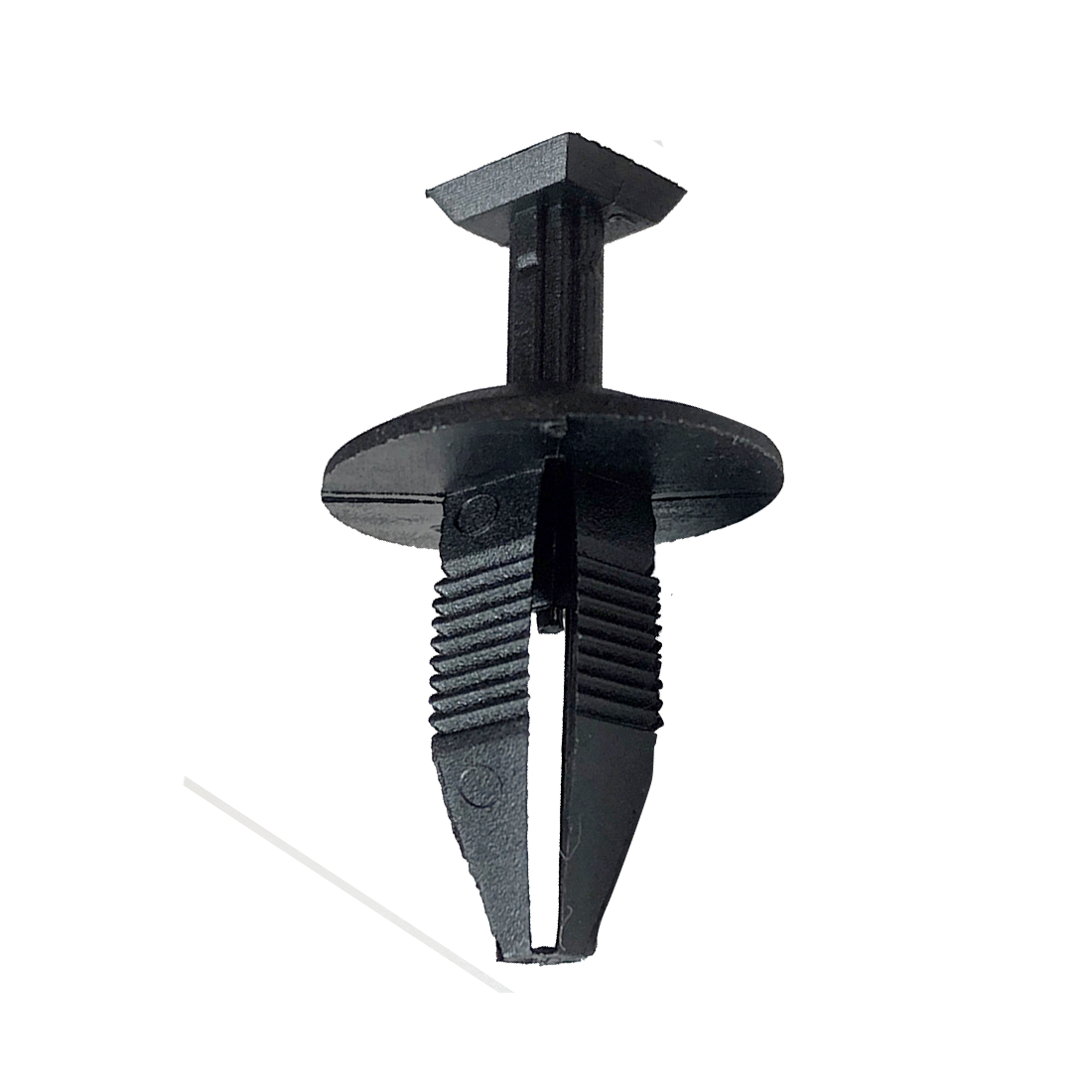

Tough Rivet Push-In Rivet - Black;Nylon; Compatible Hole Diameter Range 10 - 10.0 mm | 0.394 - 0.394 in; Compatible Panel Thickness Range 6.0 - 10.0 mm | 0.236 - 0.394 in
Tough Snap Rivets provide a strong and secure panel fastener connection. Quick and easy to install, simply insert the rivet into the panel hole and push down on the head to fasten. Made from UL rated Nylon 6/6. No tools required. The rivet can be reused.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.578 |
| 10000 + | $0.4459 |
Useful Information
Documents
Specifications
Imperial
Metric

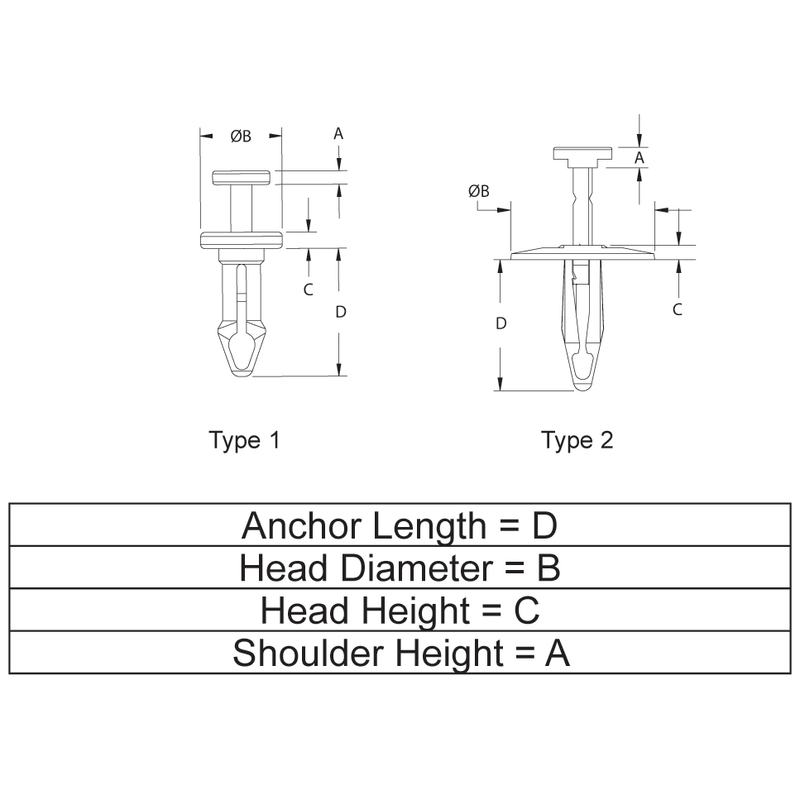

| Anchor Length | 0.681 in |
|---|---|
| Head Diameter | 0.787 in |
| Head Height | 0.146 in |
| Compatible Hole Diameter Range | 0.394 - 0.394 in |
| Compatible Panel Thickness Range | 0.236 - 0.394 in |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Flat |
| Rivet Type | Tough Rivet |
| Color | Black |
| Full Material | Nylon 6 |
| Material Flammability Standard | UL94 HB |
