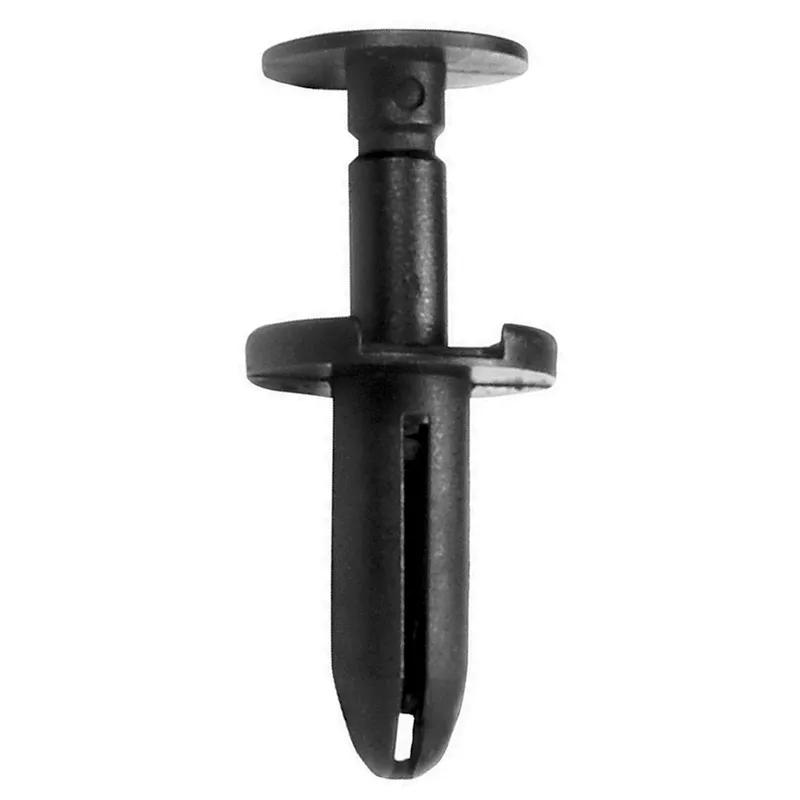

Push-In Rivets - Tough Rivet

In stock

These rivets are molded and designed to be stronger than standard snap rivets. They are supplied in a one-piece design with a pre-driven pin. They are removable by pulling out the pin.

Need a quote?

For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Minimum Compatible Hole Diameter Maximum Compatible Hole Diameter Minimum Compatible Panel Thickness Maximum Compatible Panel Thickness Quick View
TR-4
$0.131 - $0.2483 In production
0.315 in
0.325 in
0.118 in
0.315 in
TRM-4
$0.1081 - $0.2046 7000 In stock
0.122 in
0.128 in
0.130 in
0.155 in
TR-2
$0.1317 - $0.2498 In production
0.248 in
0.276 in
0.098 in
0.350 in
TRM-2
$0.1081 - $0.2046 In production
0.106 in
0.112 in
0.080 in
0.105 in
TRM-6
$0.1081 - $0.2046 1000 In stock
0.122 in
0.128 in
0.240 in
0.265 in
TR-1
$0.0776 - $0.1468 In production
0.193 in
0.205 in
0.059 in
0.181 in
TRM-1
$0.1081 - $0.2046 In production
0.097 in
0.103 in
0.160 in
0.180 in
TRM-5
$0.1081 - $0.2046 617000 In stock
0.122 in
0.128 in
0.155 in
0.180 in
TR-3
$0.1315 - $0.2498 68000 In stock
0.250 in
0.276 in
0.098 in
0.315 in
TRM-3
$0.1081 - $0.2046 In production
0.122 in
0.128 in
0.105 in
0.130 in
TRM-7
$0.1081 - $0.2046 In production
0.144 in
0.154 in
0.265 in
0.290 in
495203
$0.26 - $0.3467 10000 In stock
0.248 in
0.248 in
0.098 in
0.350 in
495207
$0.2631 - $34.1025 In production
0.276 in
0.276 in
0.472 in
0.591 in
495212
$0.2533 - $0.3283 In production
0.315 in
0.315 in
0.472 in
0.630 in
495216
$0.3914 - $0.5073 1898 In stock
0.394 in
0.394 in
0.236 in
0.394 in
495204
$0.26 - $0.3467 In production
0.248 in
0.248 in
0.098 in
0.350 in
495209
$0.2533 - $0.3283 In production
0.315 in
0.315 in
0.118 in
0.315 in
495213
$0.2123 - $0.2751 9000 In stock
0.354 in
0.354 in
0.118 in
0.276 in
495217
$0.5518 - $0.7153 9900 In stock
0.453 in
0.453 in
1.142 in
1.220 in
495202
$0.2221 - $0.2961 10000 In stock
0.248 in
0.248 in
0.157 in
0.299 in
495206
$0.3147 - $0.4079 8000 In stock
0.256 in
0.256 in
0.098 in
0.350 in
495211
$0.3223 - $0.4178 10000 In stock
0.315 in
0.315 in
0.157 in
0.315 in
495215
$0.2547 - $0.3302 In production
0.374 in
0.374 in
0.138 in
0.276 in
495201
$0.1957 - $0.2537 In production
0.197 in
0.197 in
0.059 in
0.181 in
495205
$0.26 - $0.3467 9900 In stock
0.248 in
0.248 in
0.059 in
0.299 in
  • of 2
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 8 - 8.3 mm | 0.315 - 0.325 in Compatible Panel Thickness Range 3 - 8 mm | 0.118 - 0.315 in Anchor Length 21.1 mm | 0.830 in

TR-4

Price Range
$0.2483 - $0.131

Stock Levels
In production
Attributes
  • Anchor Length
    0.830 in
  • Compatible Hole Diameter Range
    0.315 - 0.325 in
  • Compatible Panel Thickness Range
    0.118 - 0.315 in
  • Head Diameter
    0.585 in
  • Head Height
    0.100 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.3 mm | 0.122 - 0.128 in Compatible Panel Thickness Range 3.3 - 3.9 mm | 0.130 - 0.155 in Anchor Length 8.8 mm | 0.345 in

TRM-4

Price Range
$0.2046 - $0.1081

Stock Levels
7000 In stock
Attributes
  • Anchor Length
    0.345 in
  • Compatible Hole Diameter Range
    0.122 - 0.128 in
  • Compatible Panel Thickness Range
    0.130 - 0.155 in
  • Head Diameter
    0.218 in
  • Head Height
    0.060 in
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.3 - 7 mm | 0.248 - 0.276 in Compatible Panel Thickness Range 2.5 - 8.9 mm | 0.098 - 0.350 in Anchor Length 22.8 mm | 0.898 in

TR-2

Price Range
$0.2498 - $0.1317

Stock Levels
In production
Attributes
  • Anchor Length
    0.898 in
  • Compatible Hole Diameter Range
    0.248 - 0.276 in
  • Compatible Panel Thickness Range
    0.098 - 0.350 in
  • Head Diameter
    0.985 in
  • Head Height
    0.098 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 2.7 - 2.8 mm | 0.106 - 0.112 in Compatible Panel Thickness Range 2 - 2.7 mm | 0.080 - 0.105 in Anchor Length 7.6 mm | 0.300 in

TRM-2

Price Range
$0.2046 - $0.1081

Stock Levels
In production
Attributes
  • Anchor Length
    0.300 in
  • Compatible Hole Diameter Range
    0.106 - 0.112 in
  • Compatible Panel Thickness Range
    0.080 - 0.105 in
  • Head Diameter
    0.218 in
  • Head Height
    0.060 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.3 mm | 0.122 - 0.128 in Compatible Panel Thickness Range 6.1 - 6.7 mm | 0.240 - 0.265 in Anchor Length 8.8 mm | 0.345 in

TRM-6

Price Range
$0.2046 - $0.1081

Stock Levels
1000 In stock
Attributes
  • Anchor Length
    0.345 in
  • Compatible Hole Diameter Range
    0.122 - 0.128 in
  • Compatible Panel Thickness Range
    0.240 - 0.265 in
  • Head Diameter
    0.218 in
  • Head Height
    0.060 in
Black UL94 HB Nylon Truss Tough Push-In Rivet - Compatible Hole Diameter Range 4.9 - 5.2 mm | 0.193 - 0.205 in Compatible Panel Thickness Range 1.5 - 4.6 mm | 0.059 - 0.181 in Anchor Length 11.3 mm | 0.445 in

TR-1

Price Range
$0.1468 - $0.0776

Stock Levels
In production
Attributes
  • Anchor Length
    0.445 in
  • Compatible Hole Diameter Range
    0.193 - 0.205 in
  • Compatible Panel Thickness Range
    0.059 - 0.181 in
  • Head Diameter
    0.283 in
  • Head Height
    0.045 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 2.5 - 2.6 mm | 0.097 - 0.103 in Compatible Panel Thickness Range 4.1 - 4.6 mm | 0.160 - 0.180 in Anchor Length 8.8 mm | 0.345 in

TRM-1

Price Range
$0.2046 - $0.1081

Stock Levels
In production
Attributes
  • Anchor Length
    0.345 in
  • Compatible Hole Diameter Range
    0.097 - 0.103 in
  • Compatible Panel Thickness Range
    0.160 - 0.180 in
  • Head Diameter
    0.190 in
  • Head Height
    0.060 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.3 mm | 0.122 - 0.128 in Compatible Panel Thickness Range 3.9 - 4.6 mm | 0.155 - 0.180 in Anchor Length 9.6 mm | 0.377 in

TRM-5

Price Range
$0.2046 - $0.1081

Stock Levels
617000 In stock
Attributes
  • Anchor Length
    0.377 in
  • Compatible Hole Diameter Range
    0.122 - 0.128 in
  • Compatible Panel Thickness Range
    0.155 - 0.180 in
  • Head Diameter
    0.218 in
  • Head Height
    0.060 in
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.4 - 7 mm | 0.250 - 0.276 in Compatible Panel Thickness Range 2.5 - 8 mm | 0.098 - 0.315 in Anchor Length 22.8 mm | 0.897 in

TR-3

Price Range
$0.2498 - $0.1315

Stock Levels
68000 In stock
Attributes
  • Anchor Length
    0.897 in
  • Compatible Hole Diameter Range
    0.250 - 0.276 in
  • Compatible Panel Thickness Range
    0.098 - 0.315 in
  • Head Diameter
    0.585 in
  • Head Height
    0.079 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.3 mm | 0.122 - 0.128 in Compatible Panel Thickness Range 2.7 - 3.3 mm | 0.105 - 0.130 in Anchor Length 8.1 mm | 0.320 in

TRM-3

Price Range
$0.2046 - $0.1081

Stock Levels
In production
Attributes
  • Anchor Length
    0.320 in
  • Compatible Hole Diameter Range
    0.122 - 0.128 in
  • Compatible Panel Thickness Range
    0.105 - 0.130 in
  • Head Diameter
    0.218 in
  • Head Height
    0.060 in
Black UL94 V-2 Nylon Flat Mini Tough Push-In Rivet - Compatible Hole Diameter Range 3.7 - 3.9 mm | 0.144 - 0.154 in Compatible Panel Thickness Range 6.7 - 7.4 mm | 0.265 - 0.290 in Anchor Length 11.9 mm | 0.470 in

TRM-7

Price Range
$0.2046 - $0.1081

Stock Levels
In production
Attributes
  • Anchor Length
    0.470 in
  • Compatible Hole Diameter Range
    0.144 - 0.154 in
  • Compatible Panel Thickness Range
    0.265 - 0.290 in
  • Head Diameter
    0.300 in
  • Head Height
    0.060 in
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.3 mm | 0.248 in; Compatible Panel Thickness Range 2.5 - 8.9 mm | 0.098 - 0.350 in; Anchor Length 22.5 mm | 0.886 in

495203

Price Range
$0.3467 - $0.26

Stock Levels
10000 In stock
Attributes
  • Anchor Length
    0.886 in
  • Head Diameter
    1.000 in
  • Head Height
    0.098 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 7 mm | 0.276 in; Compatible Panel Thickness Range 12 - 15 mm | 0.472 - 0.591 in; Anchor Length 27 mm | 1.063 in

495207

Price Range
$34.1025 - $0.2631

Stock Levels
In production
Attributes
  • Anchor Length
    1.063 in
  • Head Diameter
    1.000 in
  • Head Height
    0.098 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 8 mm | 0.315 in; Compatible Panel Thickness Range 12 - 16 mm | 0.472 - 0.630 in; Anchor Length 29 mm | 1.142 in

495212

Price Range
$0.3283 - $0.2533

Stock Levels
In production
Attributes
  • Anchor Length
    1.142 in
  • Head Diameter
    0.591 in
  • Head Height
    0.118 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 10 mm | 0.394 in; Compatible Panel Thickness Range 6 - 10 mm | 0.236 - 0.394 in; Anchor Length 26.7 mm | 1.051 in

495216

Price Range
$0.5073 - $0.3914

Stock Levels
1898 In stock
Attributes
  • Anchor Length
    1.051 in
  • Head Diameter
    0.787 in
  • Head Height
    0.146 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.3 mm | 0.248 in; Compatible Panel Thickness Range 2.5 - 8.9 mm | 0.098 - 0.350 in; Anchor Length 18.5 mm | 0.728 in

495204

Price Range
$0.3467 - $0.26

Stock Levels
In production
Attributes
  • Anchor Length
    0.728 in
  • Head Diameter
    0.591 in
  • Head Height
    0.106 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 8 mm | 0.315 in; Compatible Panel Thickness Range 3 - 8 mm | 0.118 - 0.315 in; Anchor Length 21 mm | 0.827 in

495209

Price Range
$0.3283 - $0.2533

Stock Levels
In production
Attributes
  • Anchor Length
    0.827 in
  • Head Diameter
    0.787 in
  • Head Height
    0.106 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 9 mm | 0.354 in; Compatible Panel Thickness Range 3 - 7 mm | 0.118 - 0.276 in; Anchor Length 20 mm | 0.787 in

495213

Price Range
$0.2751 - $0.2123

Stock Levels
9000 In stock
Attributes
  • Anchor Length
    0.787 in
  • Head Diameter
    0.630 in
  • Head Height
    0.102 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 11.5 mm | 0.453 in; Compatible Panel Thickness Range 29 - 31 mm | 1.142 - 1.220 in; Anchor Length 50 mm | 1.969 in

495217

Price Range
$0.7153 - $0.5518

Stock Levels
9900 In stock
Attributes
  • Anchor Length
    1.969 in
  • Head Diameter
    1.181 in
  • Head Height
    0.098 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.3 mm | 0.248 in; Compatible Panel Thickness Range 4 - 7.6 mm | 0.157 - 0.299 in; Anchor Length 17.3 mm | 0.681 in

495202

Price Range
$0.2961 - $0.2221

Stock Levels
10000 In stock
Attributes
  • Anchor Length
    0.681 in
  • Head Diameter
    0.709 in
  • Head Height
    0.098 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.5 mm | 0.256 in; Compatible Panel Thickness Range 2.5 - 8.9 mm | 0.098 - 0.350 in; Anchor Length 22.4 mm | 0.882 in

495206

Price Range
$0.4079 - $0.3147

Stock Levels
8000 In stock
Attributes
  • Anchor Length
    0.882 in
  • Head Diameter
    0.591 in
  • Head Height
    0.079 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 8 mm | 0.315 in; Compatible Panel Thickness Range 4 - 8 mm | 0.157 - 0.315 in; Anchor Length 23 mm | 0.906 in

495211

Price Range
$0.4178 - $0.3223

Stock Levels
10000 In stock
Attributes
  • Anchor Length
    0.906 in
  • Head Diameter
    0.709 in
  • Head Height
    0.114 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 9.5 mm | 0.374 in; Compatible Panel Thickness Range 3.5 - 7 mm | 0.138 - 0.276 in; Anchor Length 23 mm | 0.906 in

495215

Price Range
$0.3302 - $0.2547

Stock Levels
In production
Attributes
  • Anchor Length
    0.906 in
  • Head Diameter
    0.705 in
  • Head Height
    0.098 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 5 mm | 0.197 in; Compatible Panel Thickness Range 1.5 - 4.6 mm | 0.059 - 0.181 in; Anchor Length 11.4 mm | 0.449 in

495201

Price Range
$0.2537 - $0.1957

Stock Levels
In production
Attributes
  • Anchor Length
    0.449 in
  • Head Diameter
    0.283 in
  • Head Height
    0.060 in
  • Color
    Black
  • Material
    Nylon
Black UL94 HB Nylon Flat Tough Push-In Rivet - Compatible Hole Diameter Range 6.3 mm | 0.248 in; Compatible Panel Thickness Range 1.5 - 7.6 mm | 0.059 - 0.299 in; Anchor Length 20.4 mm | 0.803 in

495205

Price Range
$0.3467 - $0.26

Stock Levels
9900 In stock
Attributes
  • Anchor Length
    0.803 in
  • Head Diameter
    0.685 in
  • Head Height
    0.079 in
  • Color
    Black
  • Material
    Nylon
