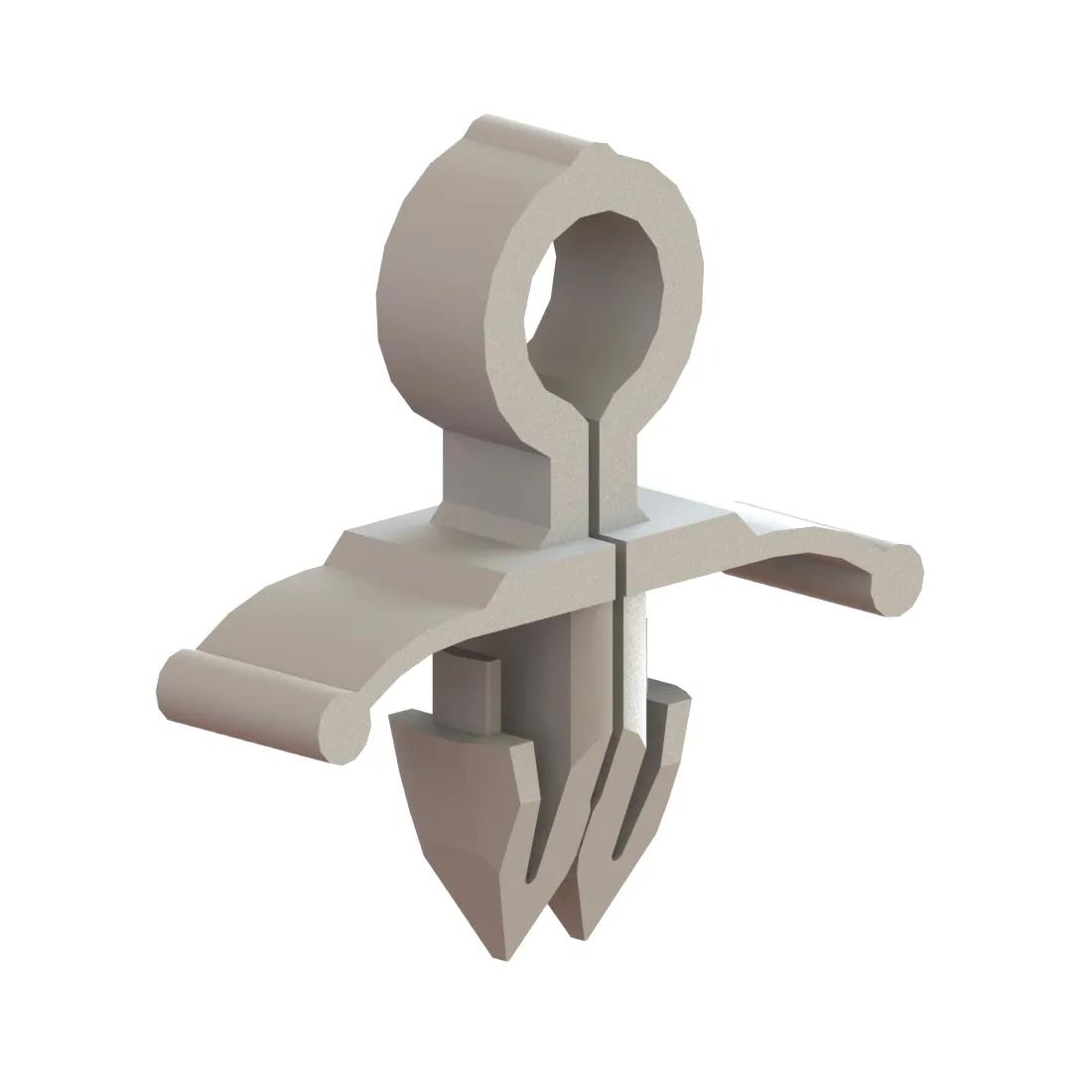

Cable Clamp Clip On 2.0 mm 3.0 mm PA Natural

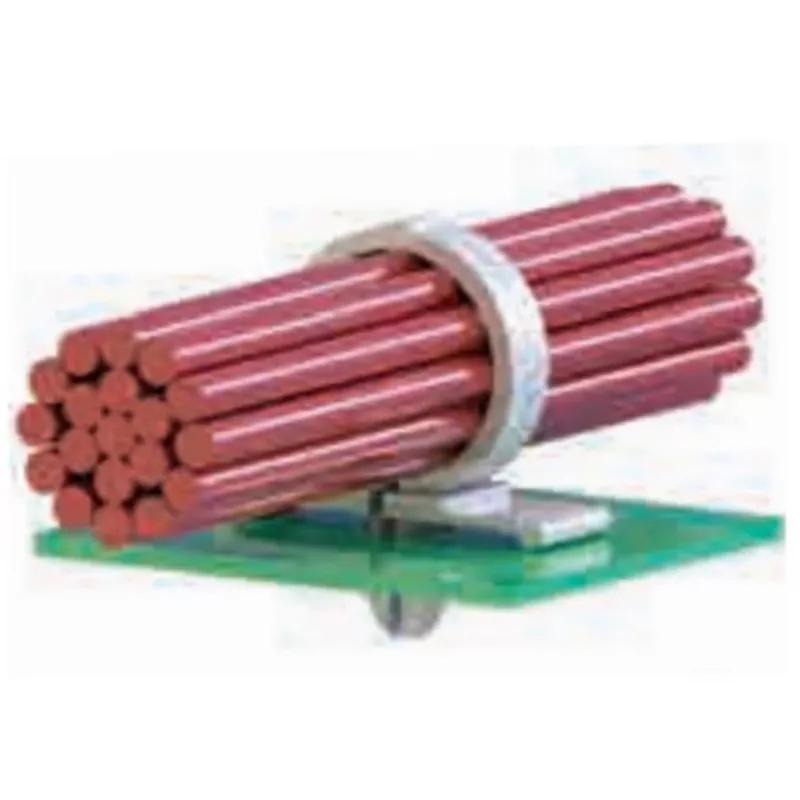

This plug-in clamps have a split design that allows bundles to be loaded by separating the clip at the base. The bundle is held securely in place; removable only by removing the clip. This will hold a maximum cable bundle diameter of 5 mm | .197 in. They are mounted into a 6.4 mm | .250 in hole diameter in a 2 - 3 mm | .079 - .118 in maximum panel thickness.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1586 |
| 10000 - 24999 | $0.1442 |
| 25000 + | $0.1319 |
Useful Information
Documents
Specifications
Imperial
Metric

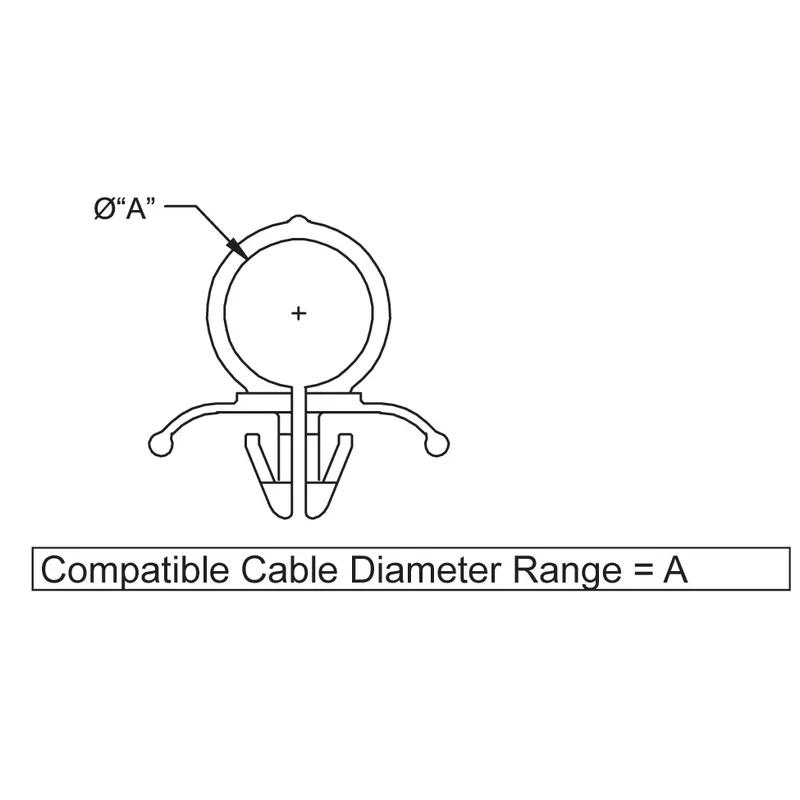

| Compatible Cable Diameter Range | 0.197 in |
|---|---|
| Compatible Hole Diameter | 0.248 in |
| Compatible Panel Thickness Range | 0.079 - 0.118 in |
| Maximum Compatible Cable Diameter | 0.197 in |
| Maximum Compatible Panel Thickness | 0.118 in |
| Maximum Operating Temperature | 185 °F |
| Minimum Compatible Panel Thickness | 0.079 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Overall Height | 0.878 in |
| Overall Width | 0.157 in |
| Colour | Natural |
| Full Material | Polyamide 6.6 |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Mounting Method | Clip On |
