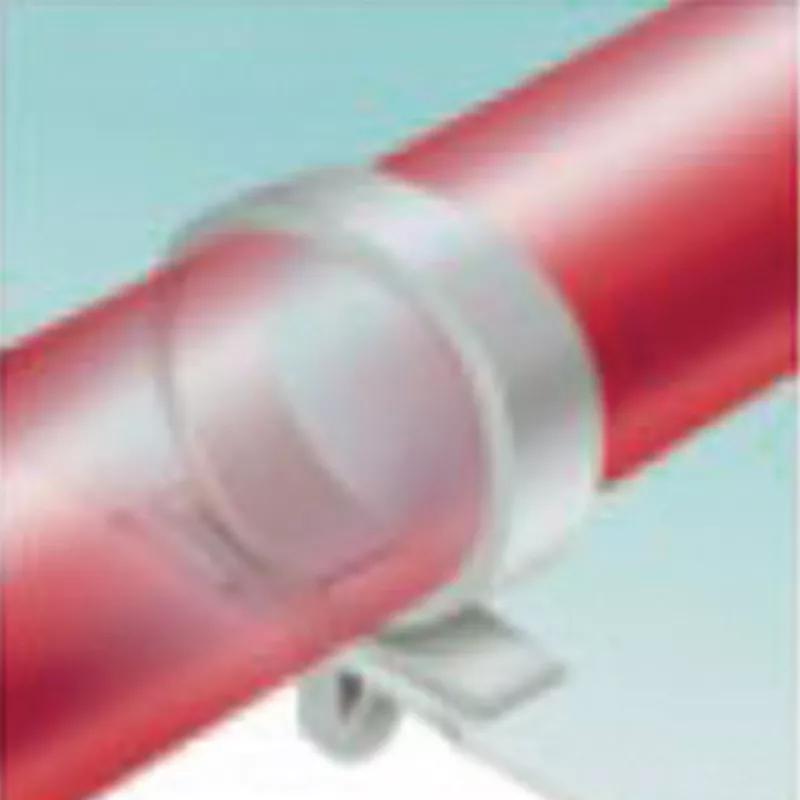

Split Plug-In Cable Clamp - Maximum Compatible Cable Diameter - 2.0 mm | 0.079 in ; Compatible Hole Diameter - 6.4 mm | 0.250 in

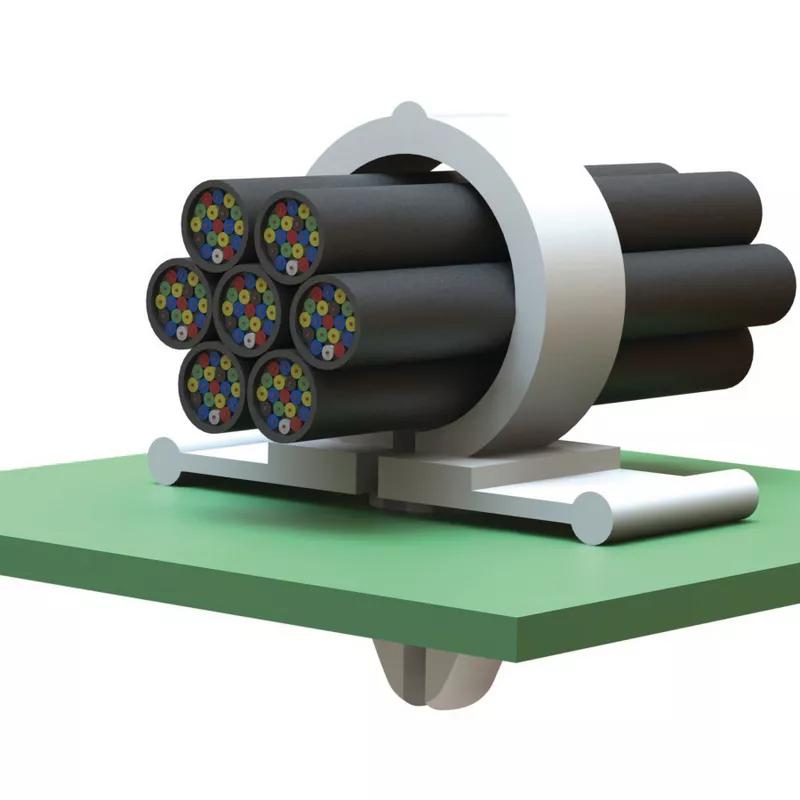

This push mount clamp has been designed to accommodate wire bundles by separating the clip at the base. Ideal for mounting the wire bundle on pre-drilled holes on assembly. Manufactured out of nylon.
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.1268 |
| 10000 - 24999 | $0.1152 |
| 25000 + | $0.1057 |
Useful Information
Specifications
Imperial
Metric
| Compatible Cable Diameter Range | 0.079 in |
|---|---|
| Compatible Panel Thickness Range | 0.028 - 0.079 in |
| Maximum Compatible Cable Diameter | 0.079 in |
| Maximum Compatible Panel Thickness | 0.079 in |
| Minimum Compatible Panel Thickness | 0.028 in |
| Minimum Operating Temperature | -40 °F |
| Overall Height | 0.933 in |
| Overall Width | 0.295 in |
| Color | Gray |
| Full Material | Polyamide 6.6 |
| Material | PA |
| Mounting Method | Clip On |
