Home // Wire Saddles // Wire Saddle - Snap In, Side Entry

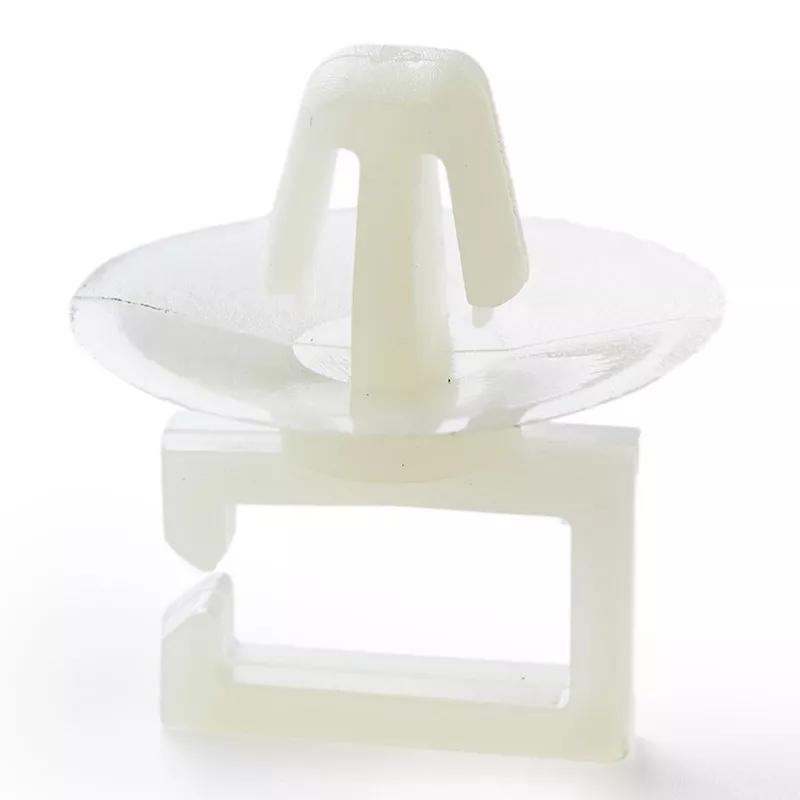

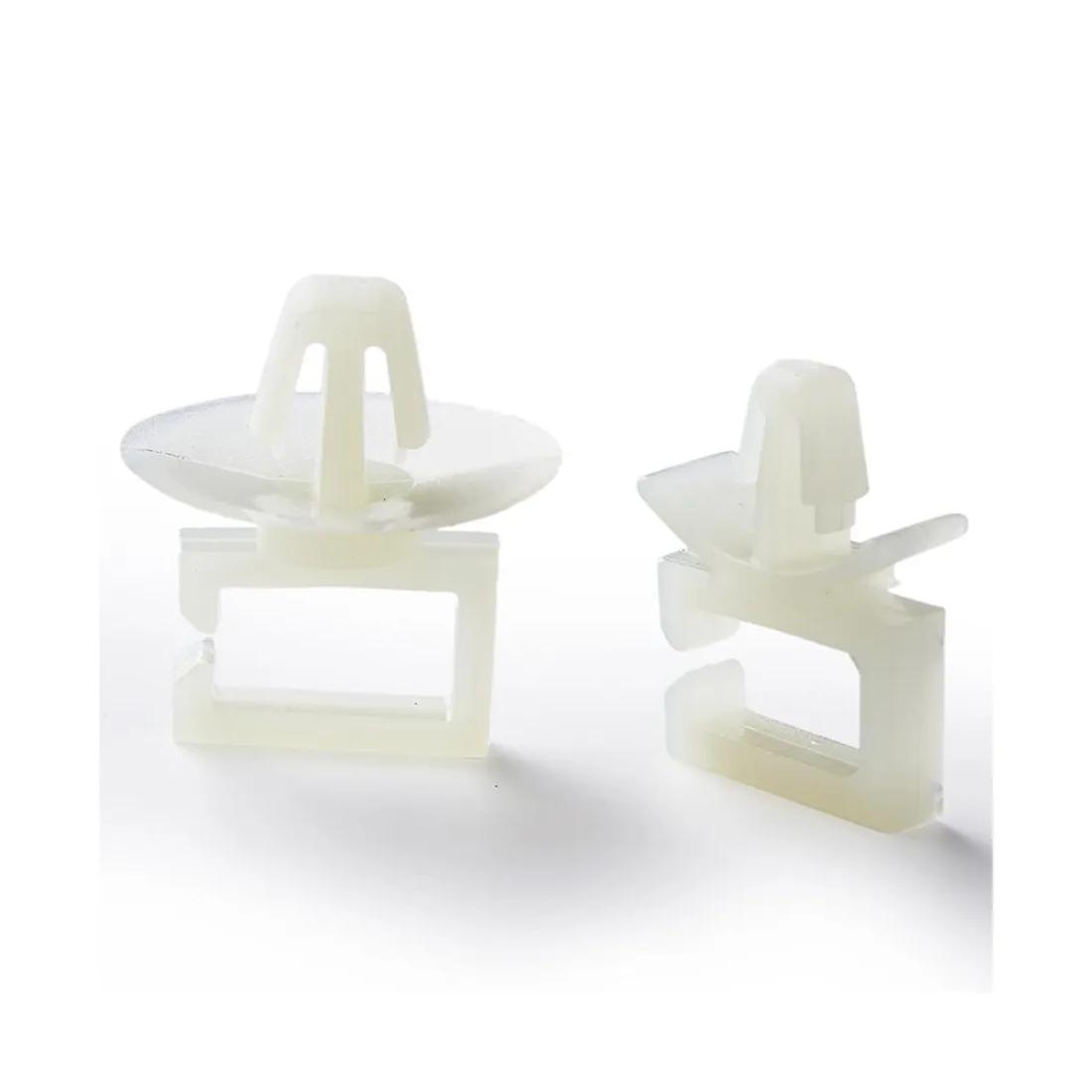

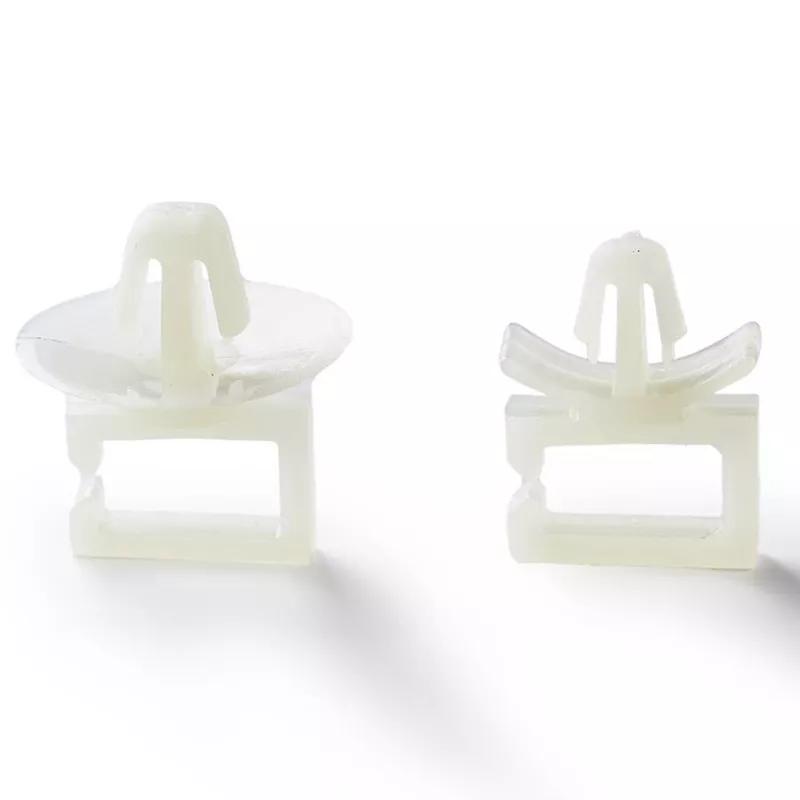

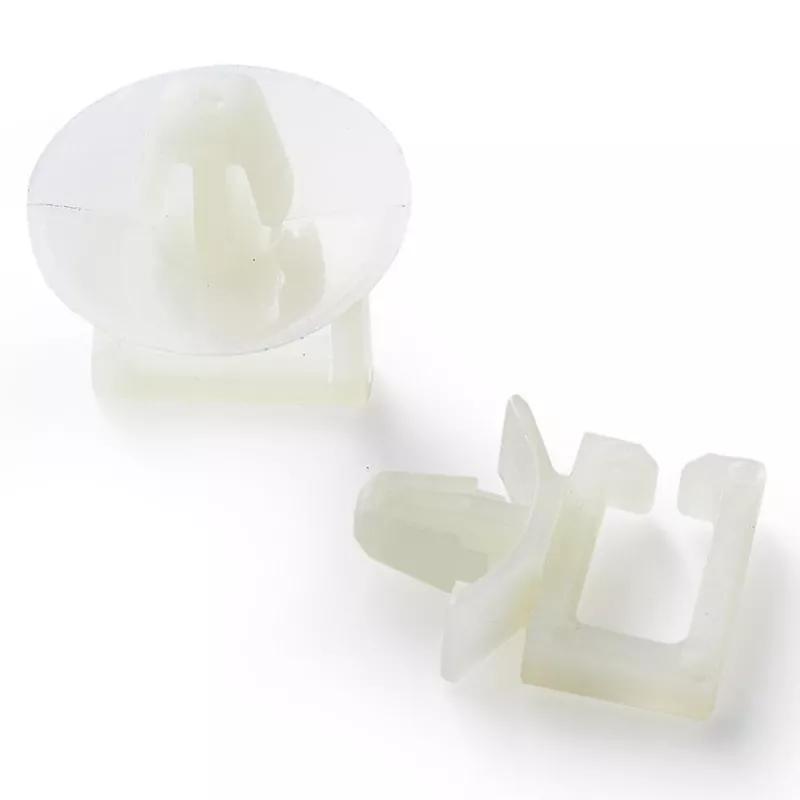

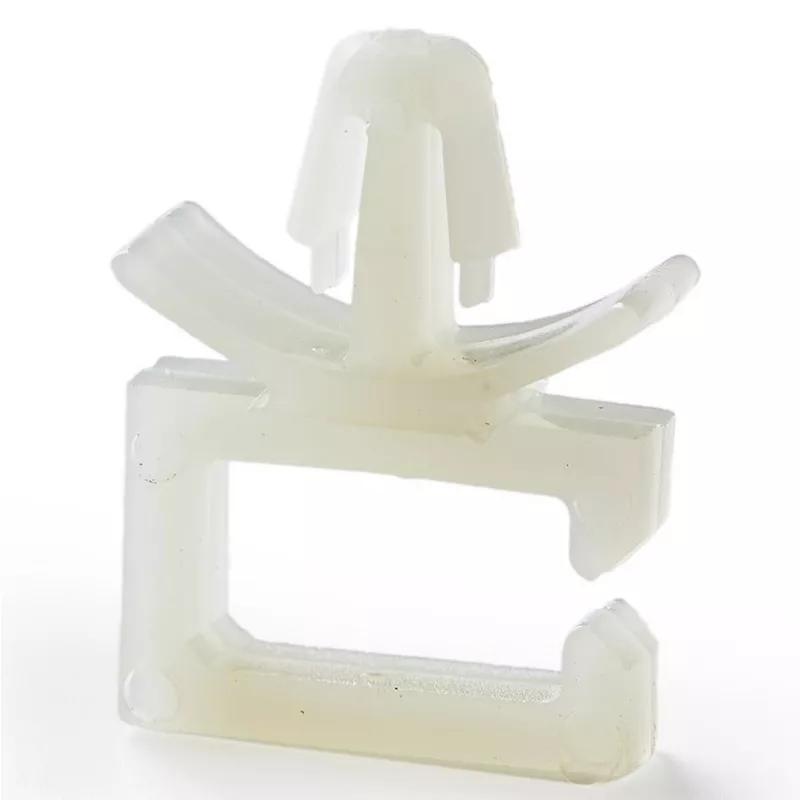

Non-Locking Wire Saddles
Non-Locking Wire Saddles
Non-Locking Wire Saddles
Non-Locking Wire Saddles
Non-Locking Wire Saddles
Non-Locking Wire Saddles - Line Drawing
Non-Locking Wire Saddles - Line Drawing

Cable Grommet Arrowhead, Winged 5.7 mm 10.2 mm PA

Non-locking wire saddle gathers and routes wires to keep them clear of other sensitive components and provide a clean build for electrical and electronic applications.
Item code:

WS-SE-A-4-01
In production For more information Delivery & returns
Loading...
SKU price information
Quantity Unit price
1000 - 9999 $0.1182
10000 - 24999 $0.1074
25000 + $0.0986
Standard pack: 1000

Order in multiple of 1000

Total price:

$118.20

1000 x $0.1182

Add to cart
Add sample +
Download CAD
Print page

Useful Information

Documents

Specifications

Imperial
Metric
SKU attributes
Compatible Hole Diameter 0.224 in
Mounting Hole Diameter 0.256 in
Inside Height 0.224 in
Inside Width 0.402 in
Maximum Compatible Panel Thickness 0.063 in
Maximum Panel Thickness 0.079 in
Minimum Compatible Panel Thickness 0.031 in
Minimum Panel Thickness 0.031 in
Overall Width 0.748 in
Panel Thickness Range 0.031 - 0.079 in
Colour Natural
Fitting Style Arrowhead, Winged
Full Material Polyamide 6/6
Material PA
Material Flammability Standard UL94 V-2
Saddle Type Side Entry
