Home // Wire Saddles // Wire Saddle - Non-Locking, Snap-In, Square Hole Mount
Wire_Saddle_-_Non_Locking_Snap_In_Square_Hole_Mount_Photo_1

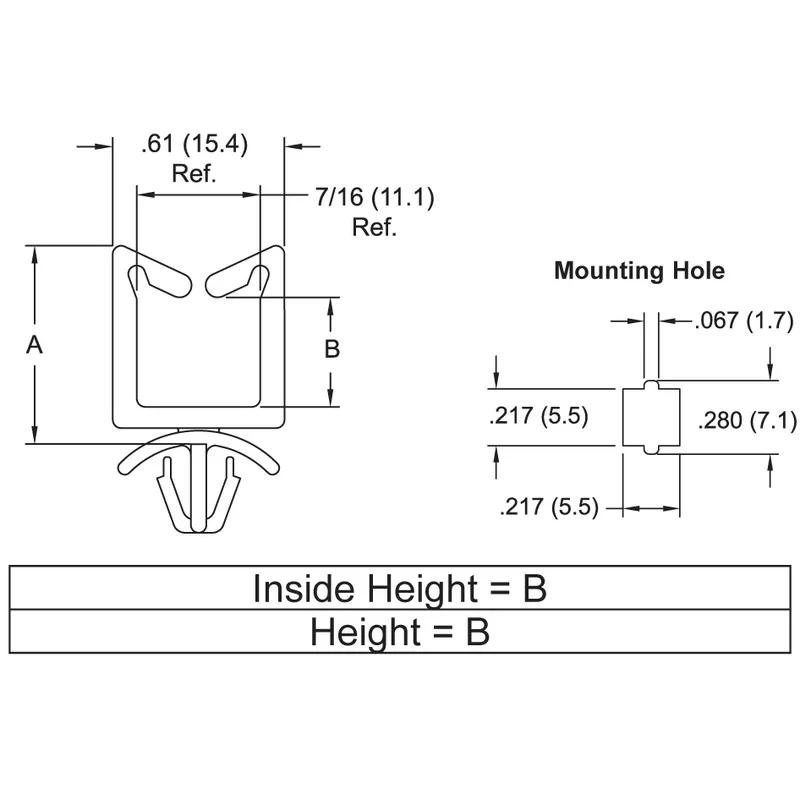

P110143_Wire_Saddle-Non_Locking_Snap_In_Square_Hole__Mount - Line Drawing

Wire Saddle - Inside Height - 4.8 mm | 0.190 in ; Inside Width - 11.2 mm | 0.440 in

This wire saddle snaps into a 5.5mm square hole in a 2 mm | 0.078 in thick panel. The inside dimensions are 4.8 mm | 0.190 in x 11.2 mm | 0.440 in. It is made is UL94 V-2 rated Nylon 6/6.
Item code:

WS-SH-1-01
Request the lead time here For more information Delivery & returns
SKU price information
Quantity Unit price
1000 - 9999$0.1152
10000 - 24999$0.1083
25000+$0.1014
Standard pack: 1000

Order in multiple of 1000

Total price:

$115.20

1000 x $0.1152

Add to cart
Add item to list
Add sample +
Download CAD
Print page

Specifications

Imperial
Metric
SKU attributes
Compatible Panel Thickness Range 0.031 - 0.078 in
Inside Height 0.190 in
Inside Width 0.440 in
Maximum Compatible Panel Thickness 0.078 in
Maximum Panel Thickness 0.078 in
Minimum Compatible Panel Thickness 0.031 in
Minimum Panel Thickness 0.031 in
Overall Length 0.510 in
Overall Width 0.610 in
Panel Thickness Range 0.031 - 0.078 in
Square Size 0.217 in
Color Natural
Fitting Style Push-In
Full Material Nylon 6/6
Material Nylon
Material Flammability Standard UL94 V-2
Saddle Type Square
UL/CSA Description UL E71558
