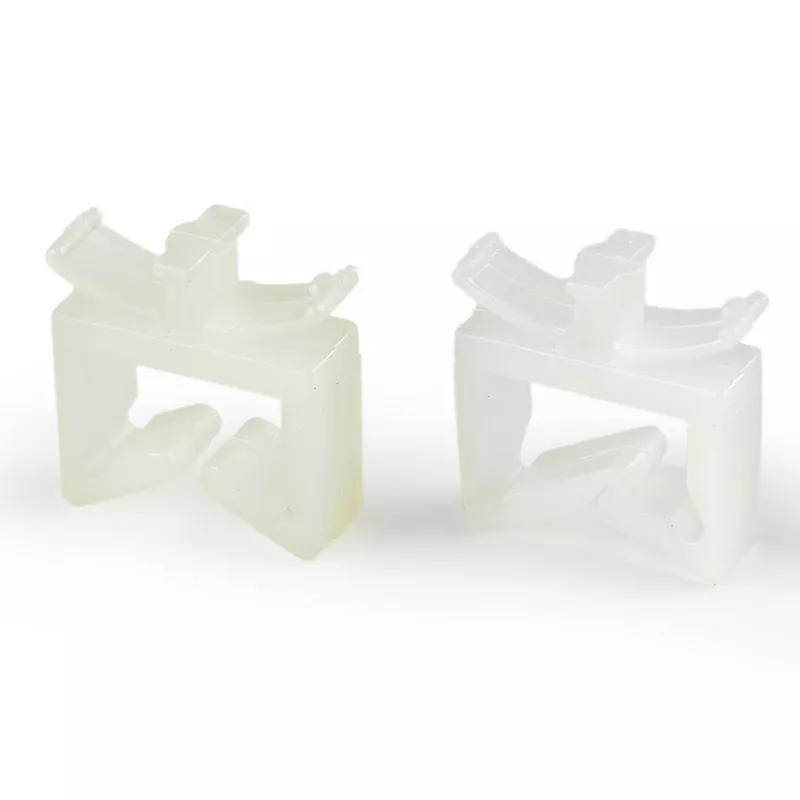

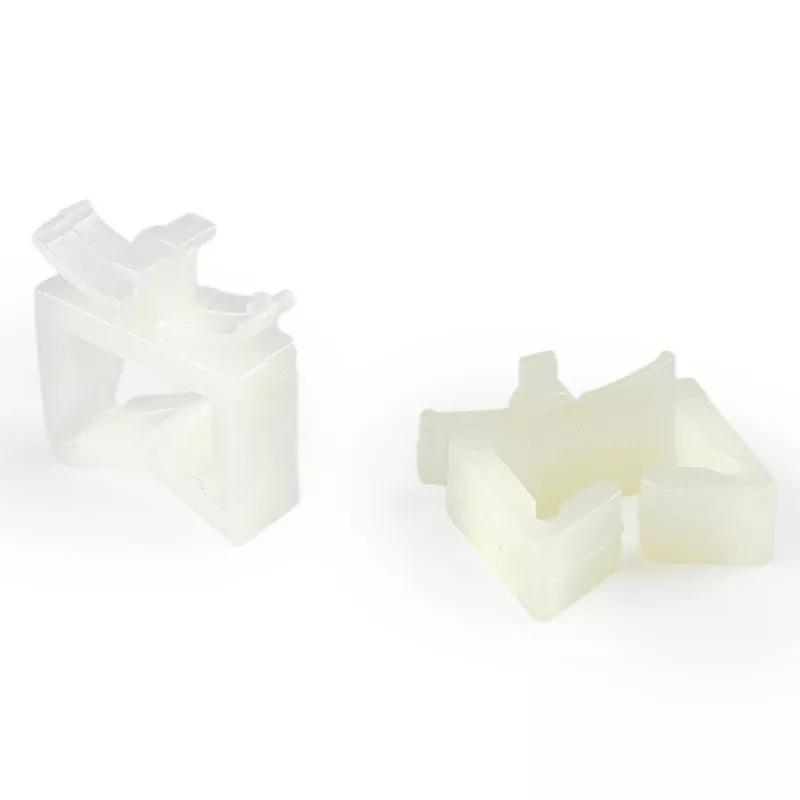

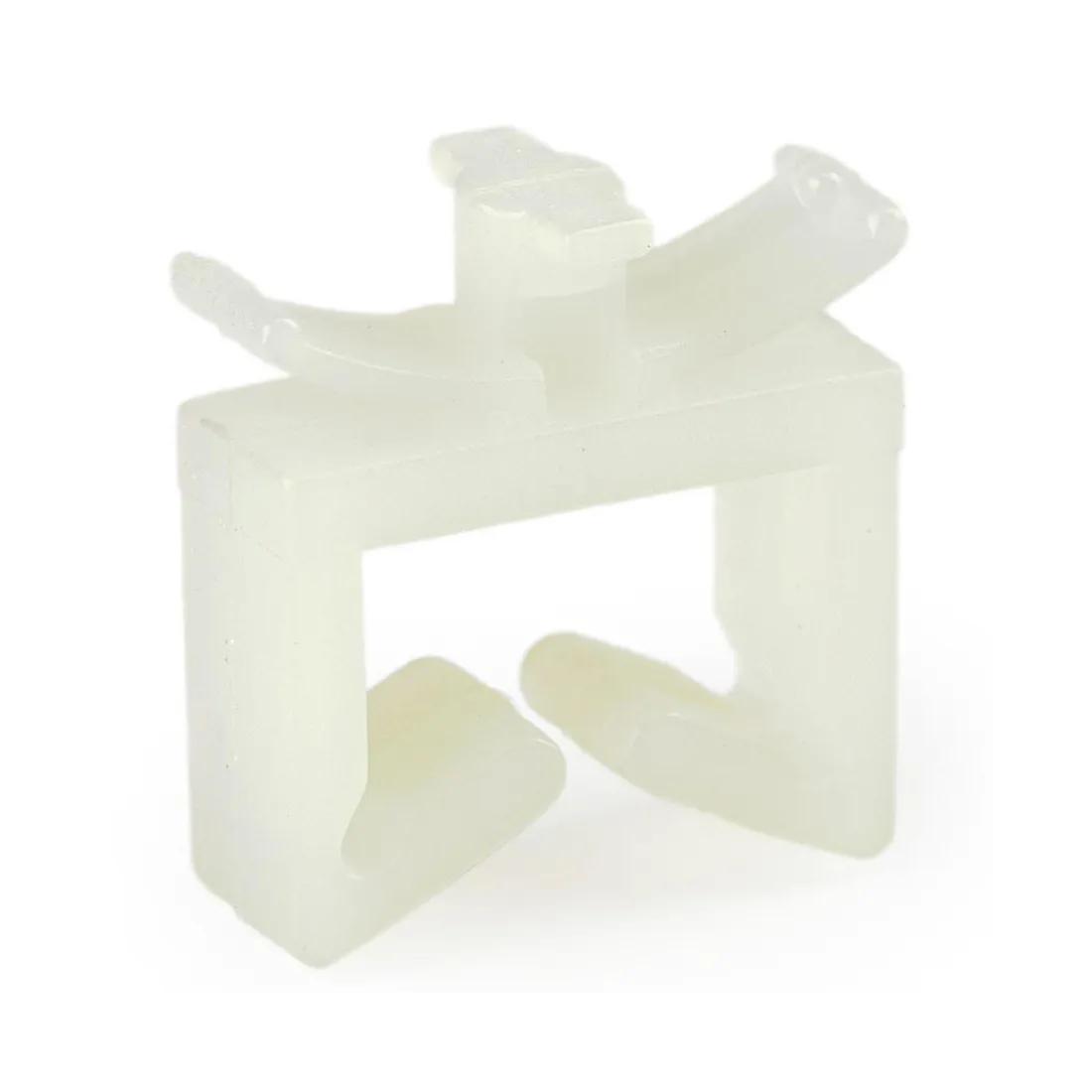

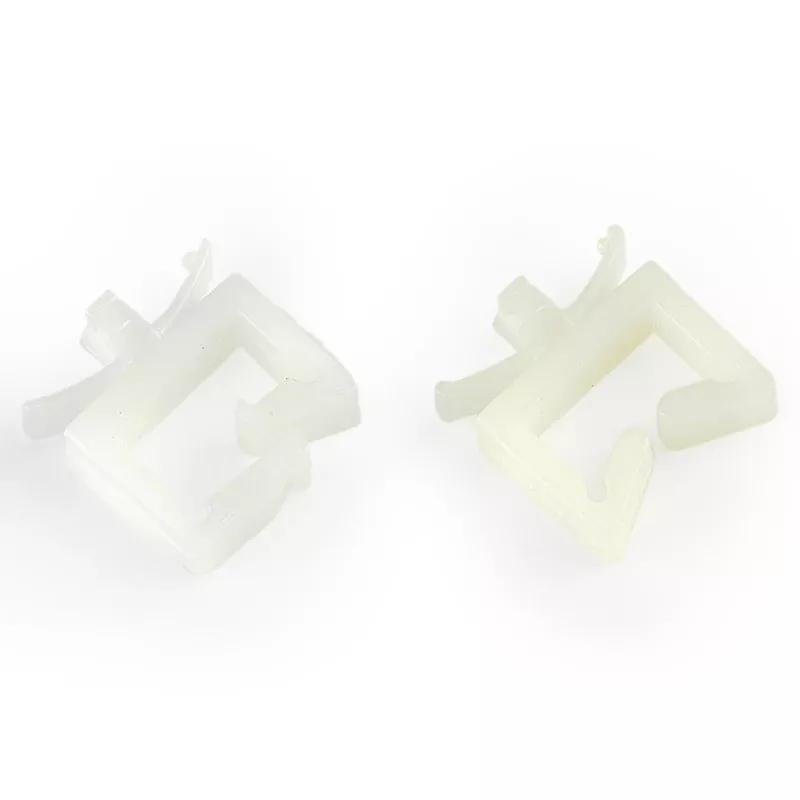

Wire Saddle - ; Inside Height - 4.8 mm | 0.190 in ; Inside Width - 11.2 mm | 0.440 in ; Compatible Hole Diameter - 5.6 mm | 0.22 in; PA
Non-locking wire saddle gathers and routes wires to keep them clear of other sensitive components and provide a clean build for electrical and electronic applications.
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2088 |
| 10000 - 24999 | $0.1896 |
| 25000 + | $0.1739 |
Useful Information
Documents
Specifications
Imperial
Metric
| Depth | 0.220 in |
|---|---|
| Inside Height | 0.189 in |
| Inside Width | 0.445 in |
| Maximum Panel Thickness | 0.063 in |
| Minimum Panel Thickness | 0.031 in |
| Overall Width | 0.602 in |
| Panel Thickness Range | 0.031 - 0.063 in |
| Color | Natural |
| Full Material | Polyamide |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
