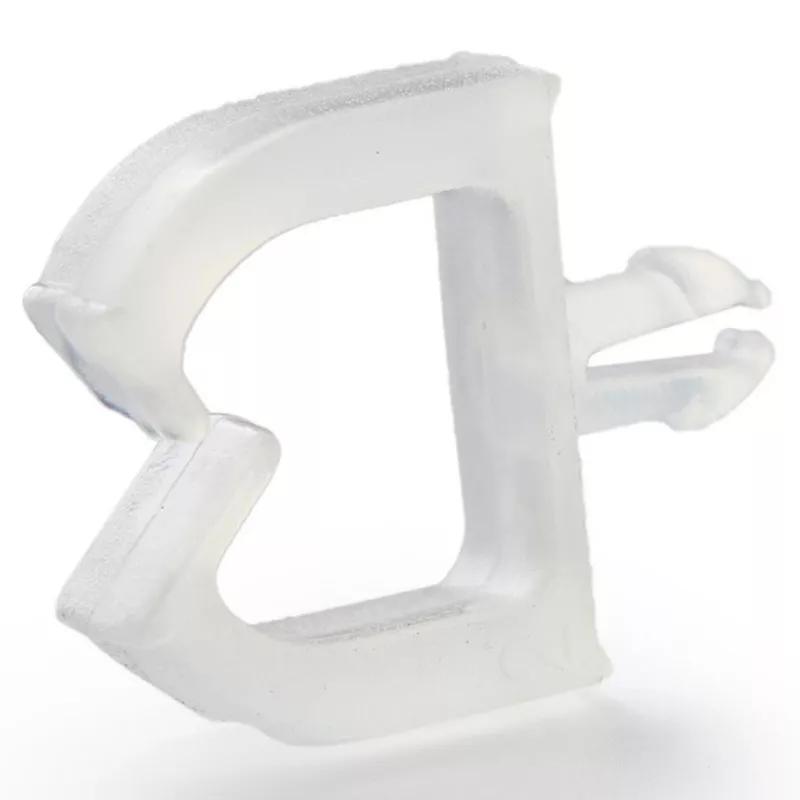

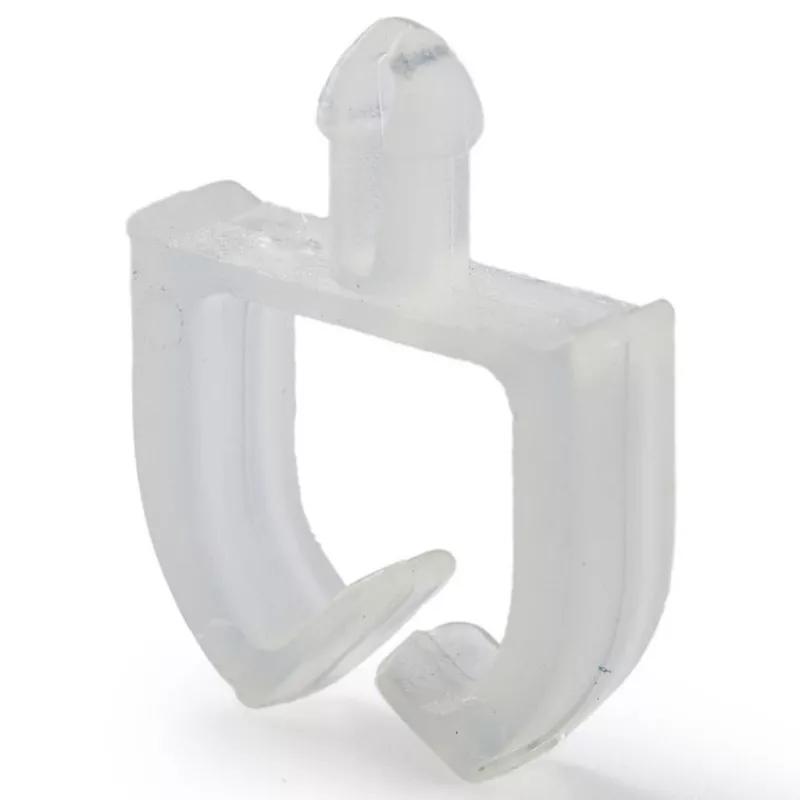

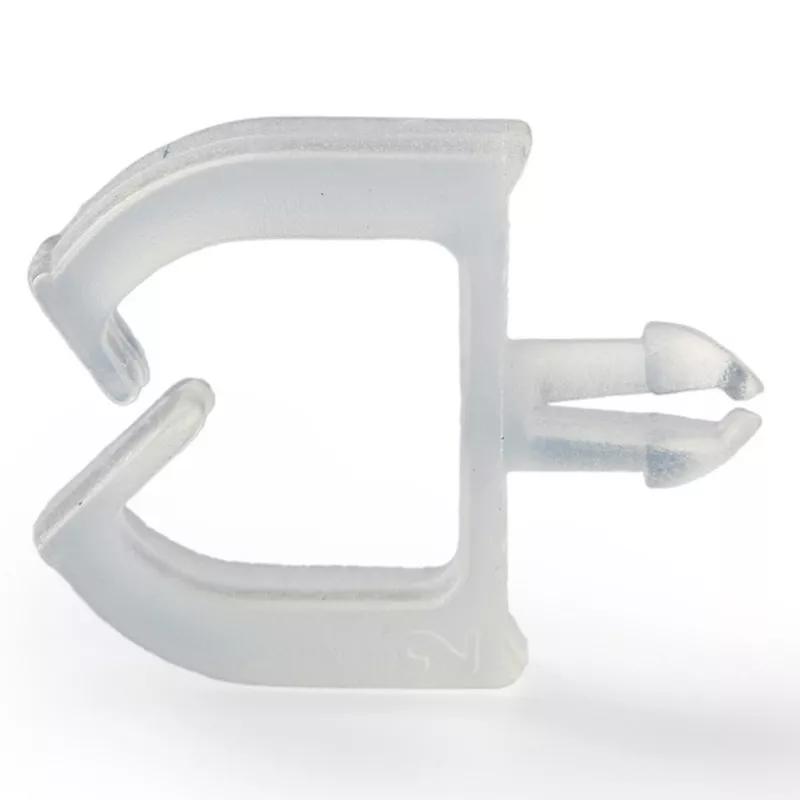

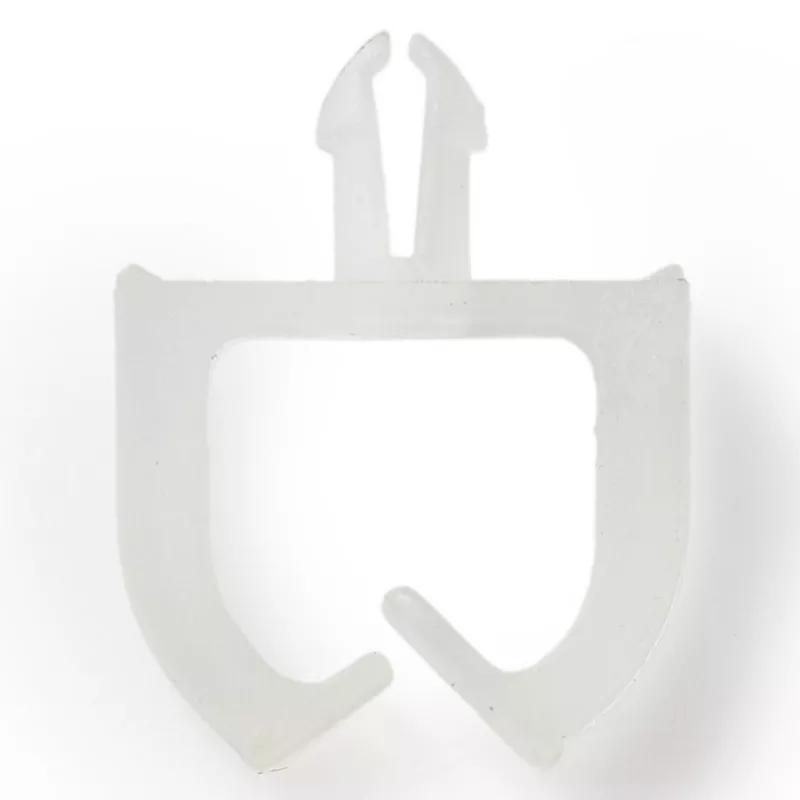

Wire Saddle - Compatible Hole Diameter - 3 mm | 0.118 in ; Inside Width - 6.6 mm | 0.260 in ; Overall Width - 9.1 mm | 0.360 in; PA
Mini wire saddle is used to route cables within electrical and electronical applications. Keeps components tidy and easily accessible for further assembly or repair.
Useful Information
Specifications
Imperial
Metric

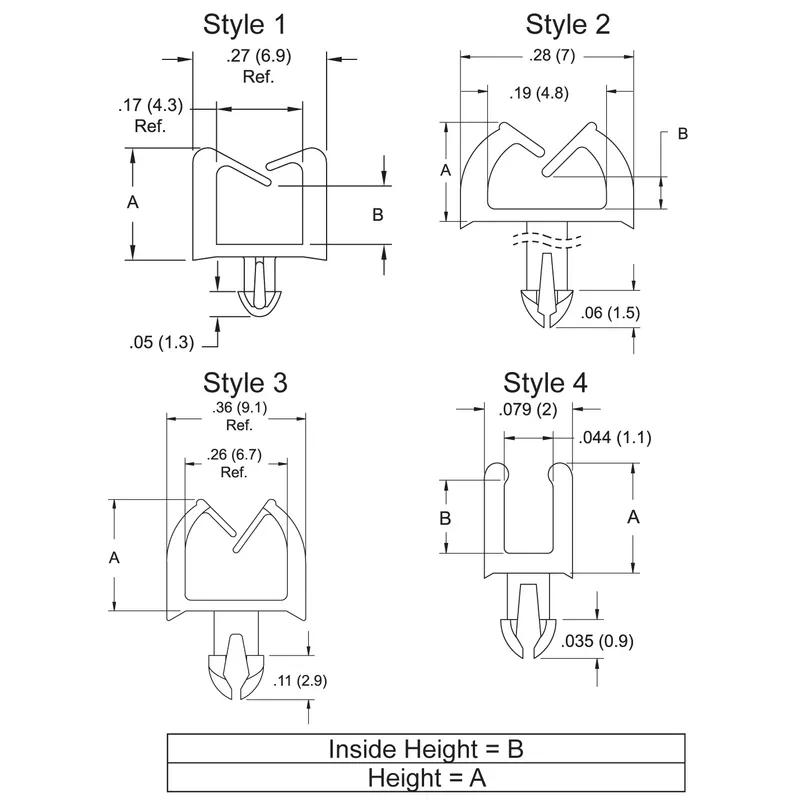

| Compatible Hole Diameter | 0.118 in |
|---|---|
| Depth | 0.160 in |
| Inside Height | 0.114 in |
| Inside Width | 0.264 in |
| Maximum Panel Thickness | 0.047 in |
| Overall Width | 0.358 in |
| Panel Thickness Range | 0.039 - 0.047 in |
| Color | Natural |
| Full Material | Polyamide |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| UL/CSA Description | UL E71558 |
