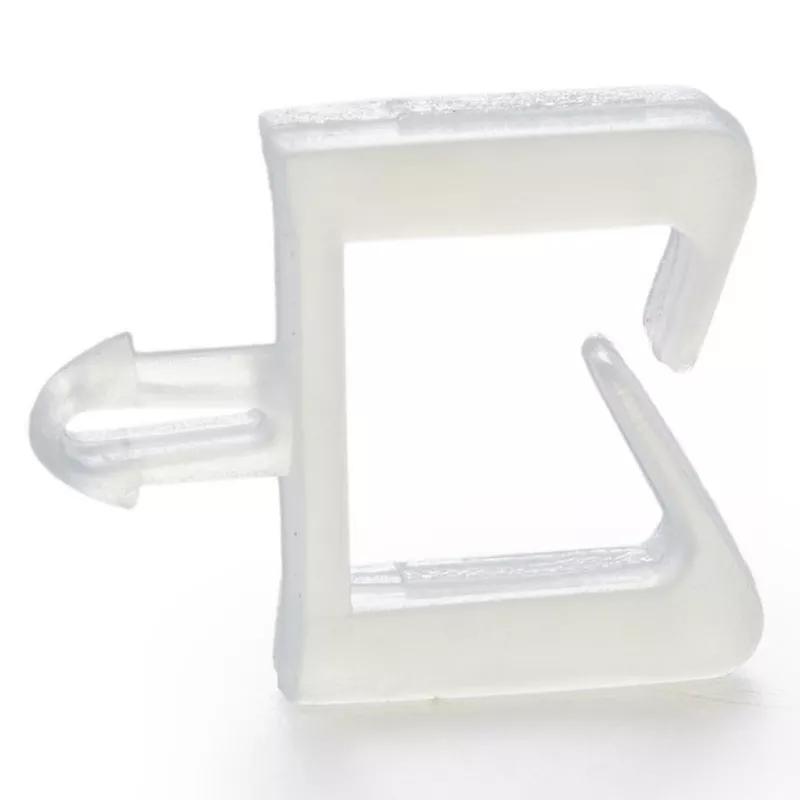

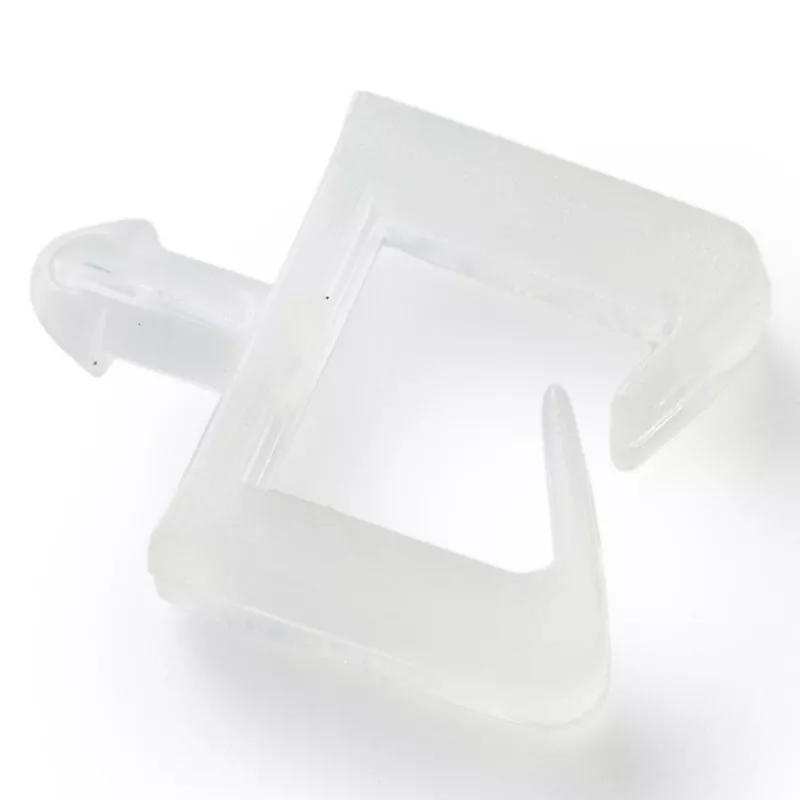

Cable Grommet Push In 3.0 mm 4.3 mm PA
Mini wire saddle is used to route cables within electrical and electronical applications. Keeps components tidy and easily accessible for further assembly or repair.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1567 |
| 10000 - 24999 | $0.1424 |
| 25000 + | $0.1308 |
Useful Information
Documents
Specifications
Imperial
Metric
| Compatible Hole Diameter | 0.071 in |
|---|---|
| Depth | 0.080 in |
| Height | 0.230 in |
| Inside Height | 0.118 in |
| Inside Width | 0.169 in |
| Maximum Panel Thickness | 0.094 in |
| Overall Width | 0.272 in |
| Panel Thickness Range | 0.094 in |
| Colour | Natural |
| Fitting Style | Push In |
| Full Material | Polyamide |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Saddle Type | Micro |
| Style | 1 |
| UL/CSA Description | UL E71558 |
