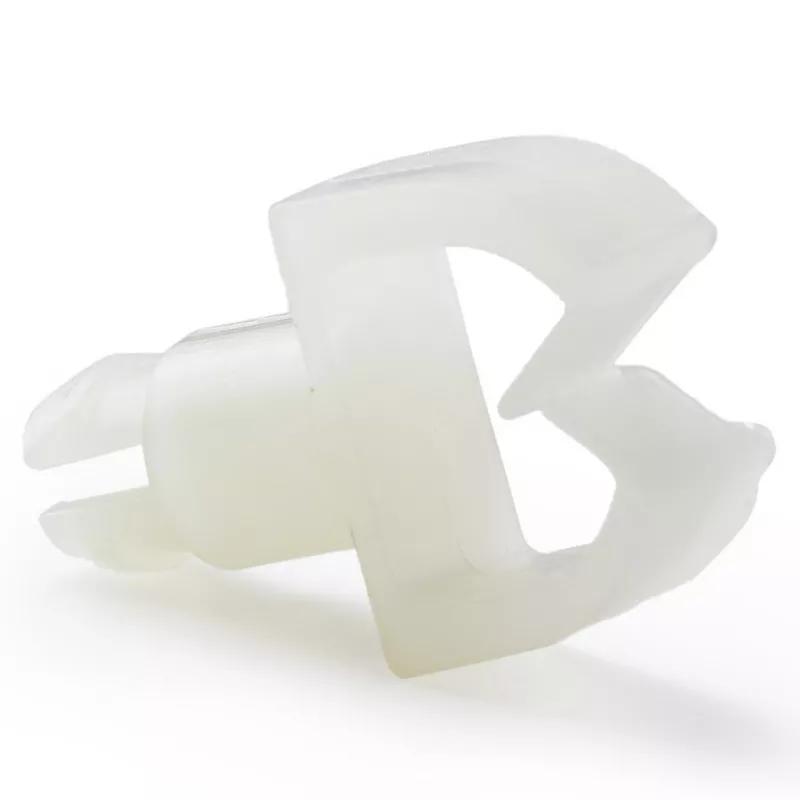

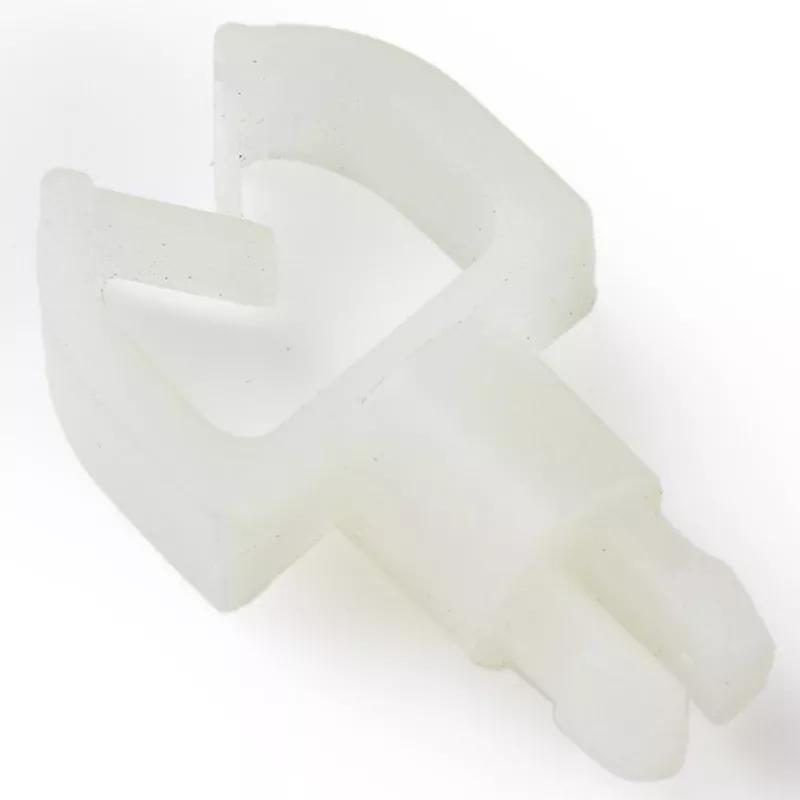

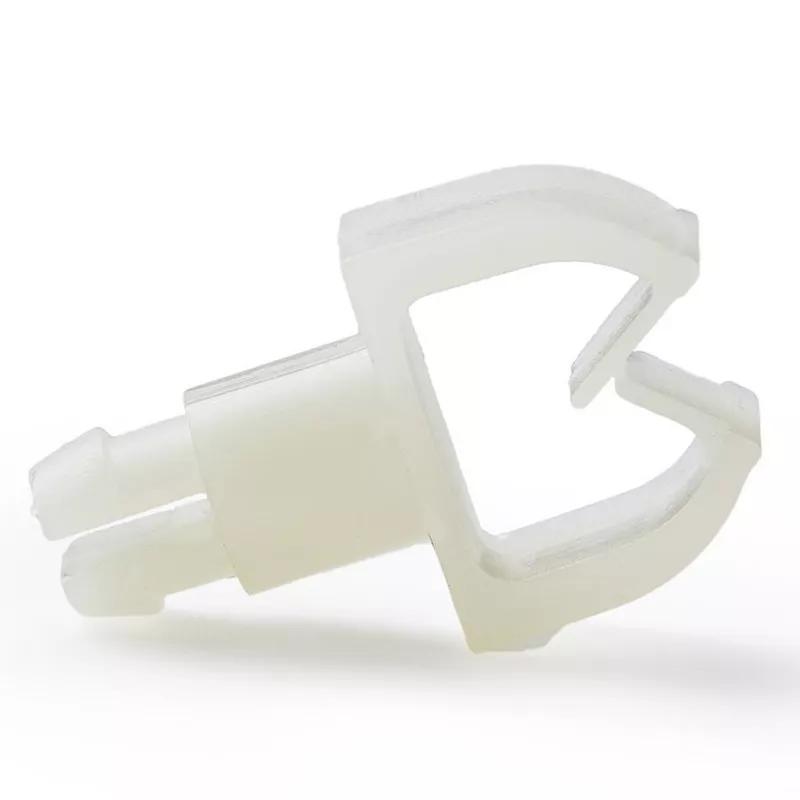

Wire Saddle - Compatible Hole Diameter - 3.8 mm | 0.150 in ; Inside Width - 6.6 mm | 0.260 in ; Overall Width - 6.6 mm | 0.260 in; PA

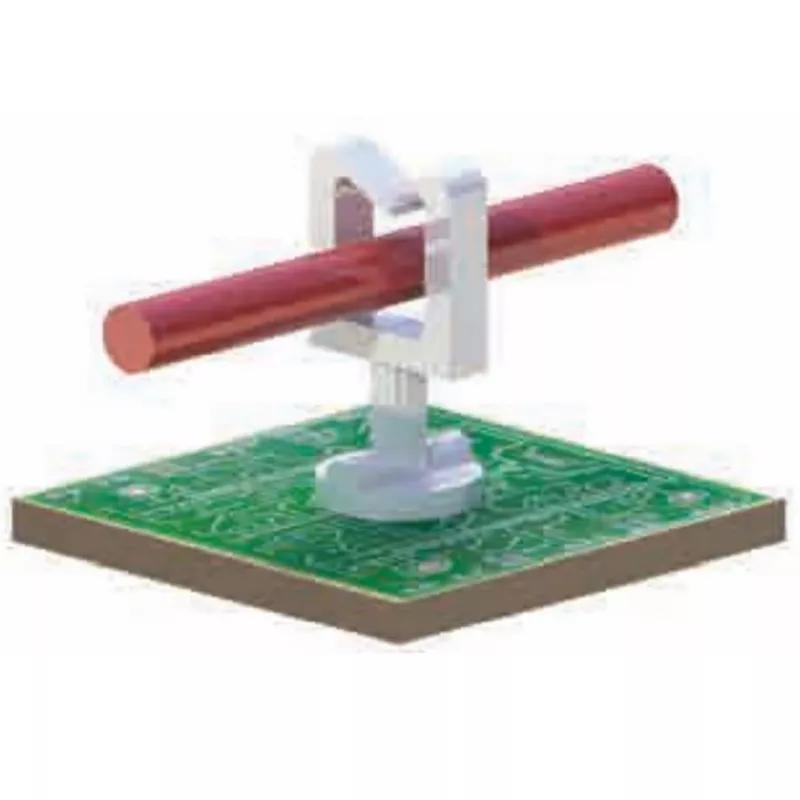

Mini wire saddle is used to route cables within electrical and electronical applications. Keeps components tidy and easily accessible for further assembly or repair.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1583 |
| 10000 - 24999 | $0.1489 |
| 25000 + | $0.1392 |
Useful Information

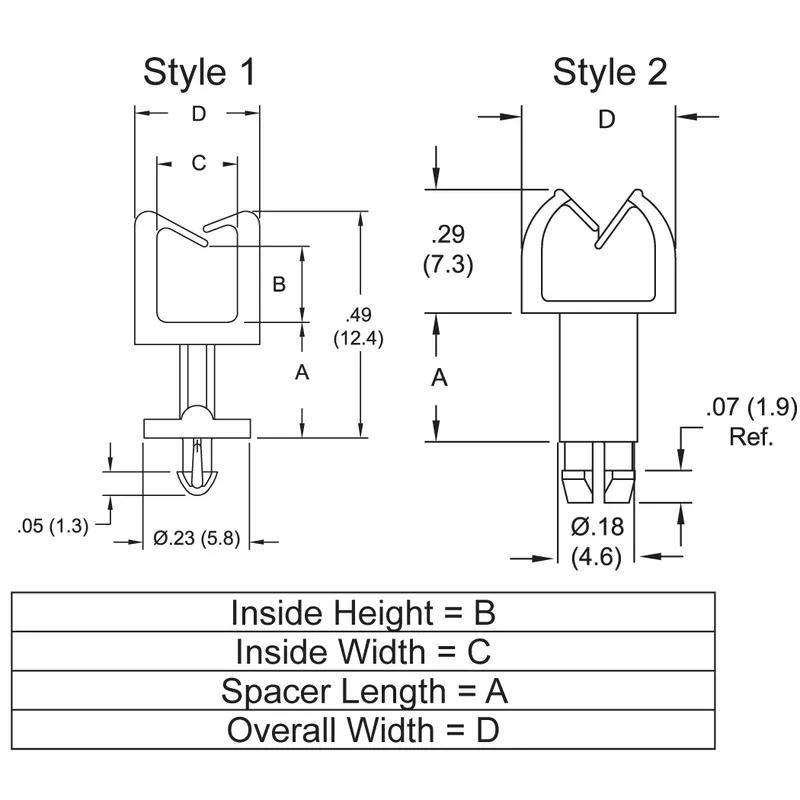

Specifications
Imperial
Metric
| Compatible Hole Diameter | 0.15 in |
|---|---|
| Depth | 0.160 in |
| Inside Height | 0.118 in |
| Inside Width | 0.26 in |
| Maximum Panel Thickness | 0.063 in |
| Overall Width | 0.358 in |
| Panel Thickness Range | 0.063 in |
| Spacer Length | 0.161 in |
| Color | Natural |
| Full Material | Polyamide |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
