Cable Grommet 3.8 mm 11.3 mm PA Natural

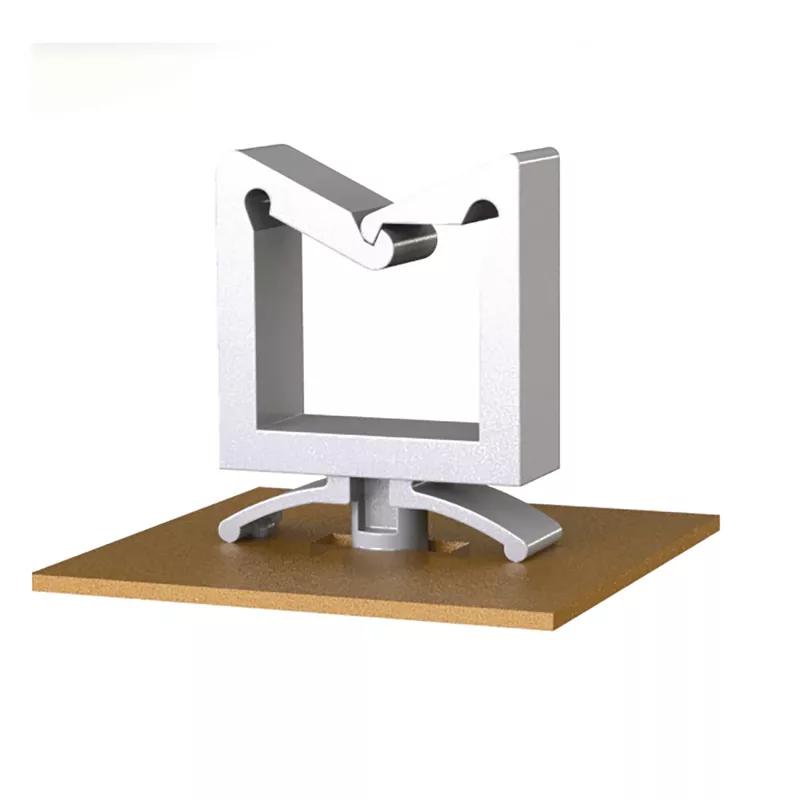

Locking Wire Saddle snaps into place. Holds and directs wires to help keep them clear of sensitive components and provides a clean build. Features a locking top entry system with easy finger-tip pressure installation.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1411 |
| 10000 - 24999 | $0.1355 |
| 25000 + | $0.1303 |
Useful Information
Documents
Specifications
Imperial
Metric
| Compatible Panel Thickness Range | 0.031 - 0.063 in |
|---|---|
| Depth | 0.220 in |
| Height | 0.510 in |
| Inside Height | 0.15 in |
| Inside Width | 0.445 in |
| Maximum Compatible Panel Thickness | 0.063 in |
| Maximum Panel Thickness | 0.063 in |
| Minimum Compatible Panel Thickness | 0.031 in |
| Minimum Panel Thickness | 0.031 in |
| Overall Width | 0.602 in |
| Panel Thickness Range | 0.031 - 0.063 in |
| Colour | Natural |
| Fitting Style | Quarter Turn |
| Full Material | Polyamide |
| Material | PA |
| Saddle Type | Rectangular |
| Material Flammability Standard | UL94 V-2 |
