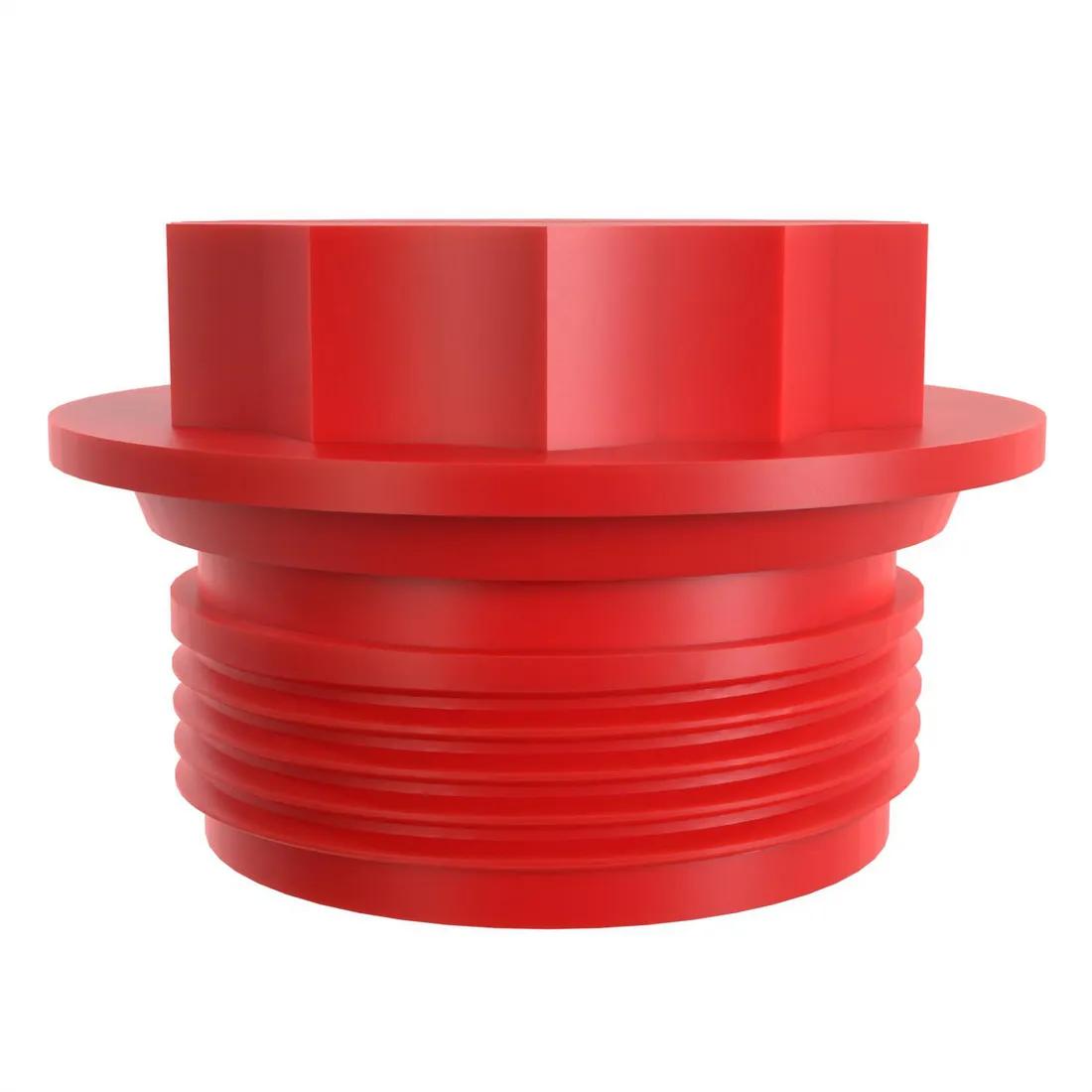

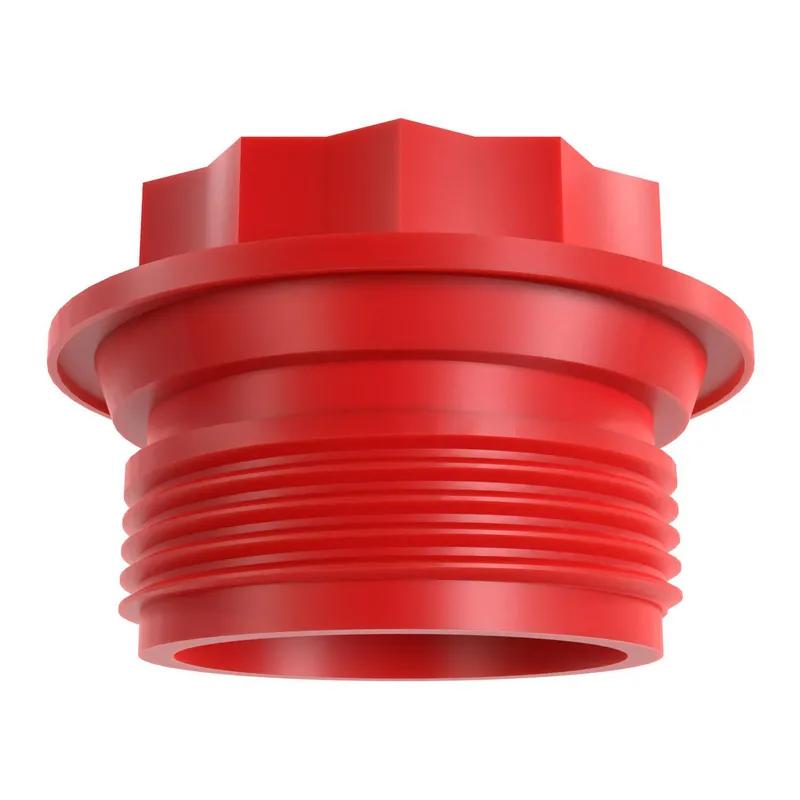

Threaded O-Ring Plug - Compatible Thread Standard - UNF ; Compatible Thread Sizes - 7/16-20 ; Threaded - Plastic Molded O-Ring
This 7/16"-20 UNF threaded molded o-ring plug is often used on flat faced hydraulic fittings. It's integral o-ring type bead prevents oil leaks or entrance of contaminants. The flange lip compresses against the surface to keep contaminants out. This plug can be applied or removed by hand, wrench, socket or screwdriver.
| Quantity | Unit price |
|---|---|
| 1 - 799 | $1.9124 |
| 800 - 1599 | $0.9514 |
| 1600 - 7999 | $0.3809 |
| 8000 - 79999 | $0.1696 |
| 80000 - 159999 | $0.1603 |
| 160000 - 239999 | $0.1524 |
| 240000 + | $0.1439 |
Useful Information
Documents
Specifications
Imperial
Metric
| Head Height | 0.28 in |
|---|---|
| Overall Diameter | 0.661 in |
| Overall Height | 0.622 in |
| Compatible Thread Sizes (All) | 7/16-20 |
| Compatible Thread Standard (All) | UNF |
| Color | Red |
| Material | HDPE |
| Special Features | Threaded |
