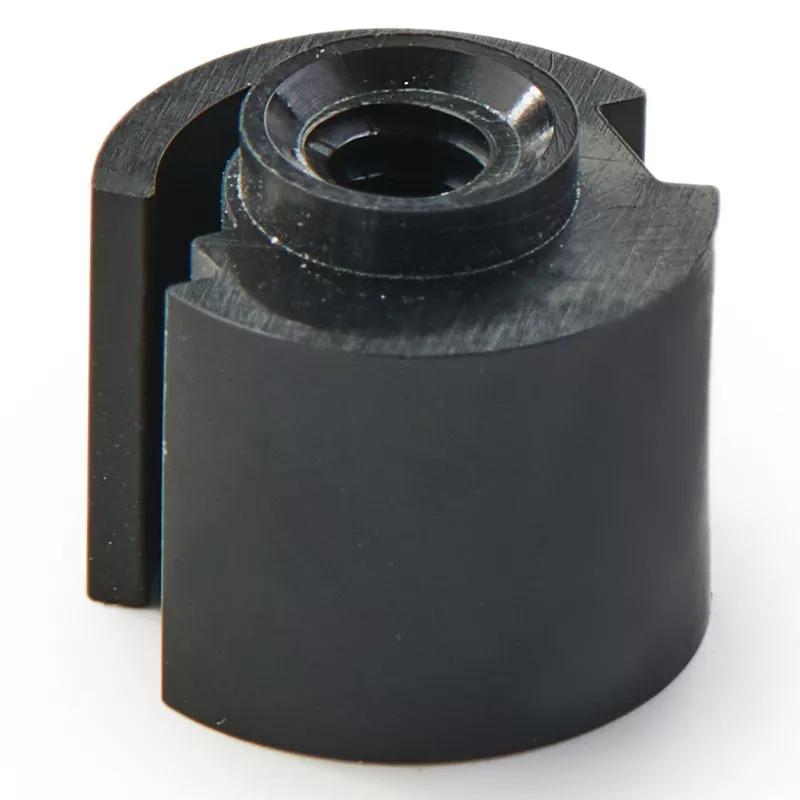

Sheet Edge Insert - Thread Size #6-32; Panel Thickness Range 1.3 - 2.4 mm | 0.050 - 0.095 in;Black; Nylon 6/6
Sheet Edge Insert provides strong threads in metal sheets that are too thin to be tapped. The insert fastens to the edges of thin sheets. They can be easily removed by pinching the spring legs and rotating. Internal thread requires a screwdriver for installation.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.278 |
| 5000 - 9999 | $0.2642 |
| 10000 - 24999 | $0.251 |
| 25000 + | $0.2384 |
Useful Information
Documents
Specifications
Imperial
Metric
| Distance Across Flats | 0.299 in |
|---|---|
| Insert Length | 0.300 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness | 0.095 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.05 in |
| Mounting Hole Diameter | 0.312 in |
| Outside Diameter | 0.39 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Hole Configuration | 1 |
| Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Material Type | RMS-01 |
