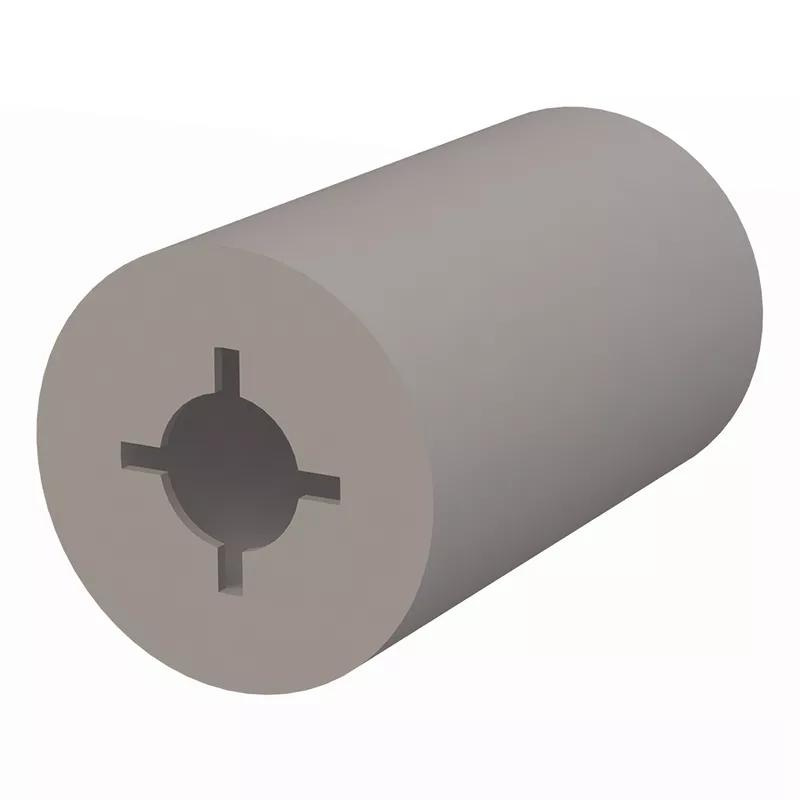

Screw and Lock Support - Retaining - Inside Diameter 7 mm | 0.277 in ; Outside Diameter 12.7 mm | 0.500 in ; Screw Diameter 4.5 mm | 0.177 in ; Spacer Length 22.2 mm | 0.875 in
This retaining spacers has a specialty configured ID designed to grip the screw shank holding it in place. Made from natural Nylon.
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1066 |
| 10000 - 24999 | $0.0959 |
| 25000+ | $0.0864 |
Useful Information
Documents
Specifications
Imperial
Metric
| Inside Diameter | 0.276 in |
|---|---|
| Length | 0.874 in |
| Maximum Operating Temperature | 185 °F |
| Minimum Operating Temperature | -40 °F |
| Outside Diameter | 0.5 in |
| Screw Diameter | 0.177 in |
| Spacer Length | 0.874 in |
| Color | Natural |
| Full Material | Polyamide 6.6 |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
