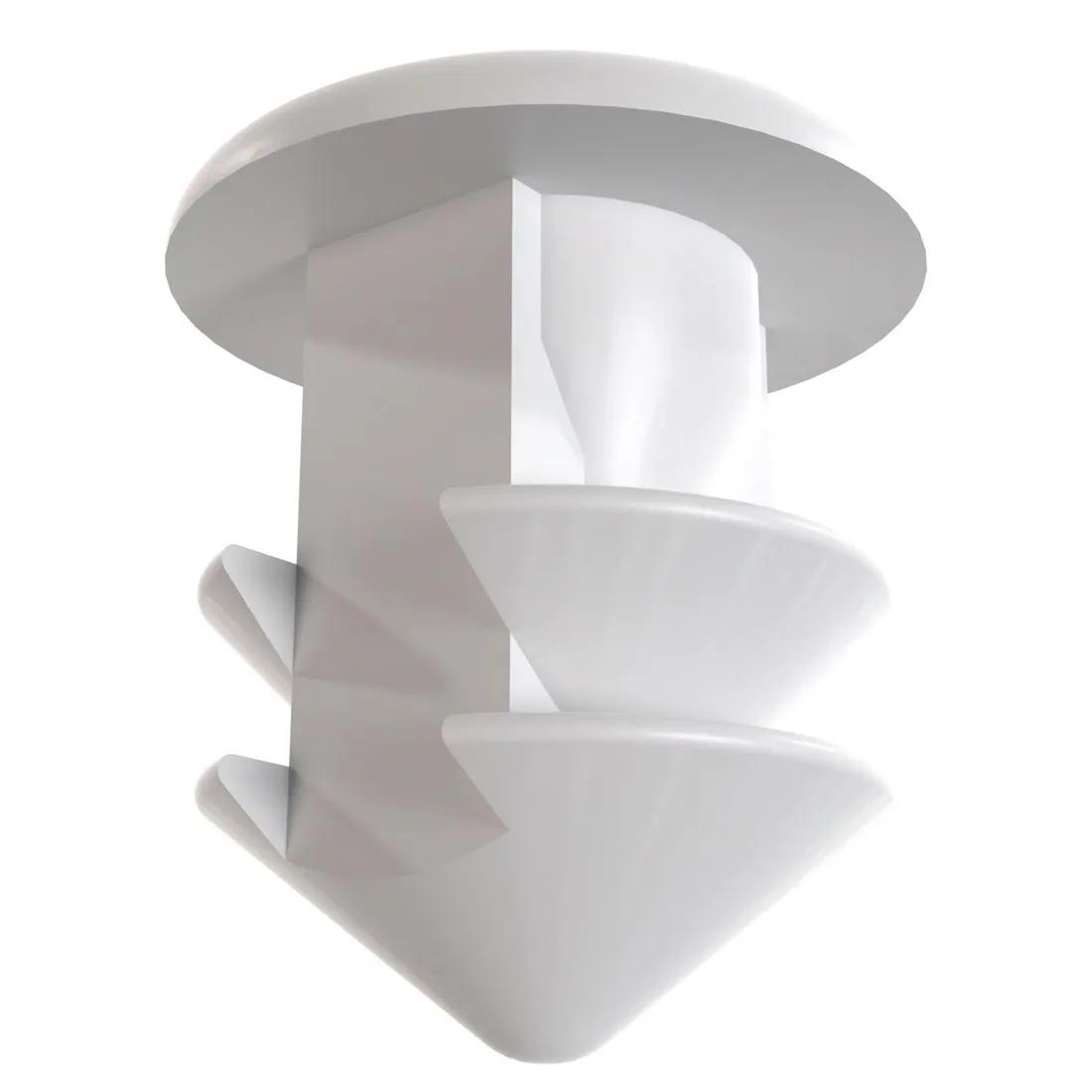

Mini Pawl Lock -; Compatible Hole Diameter 3.2 mm | 0.126 in; Compatible Panel Thickness Range 2 mm | 0.08 in;Natural;Nylon

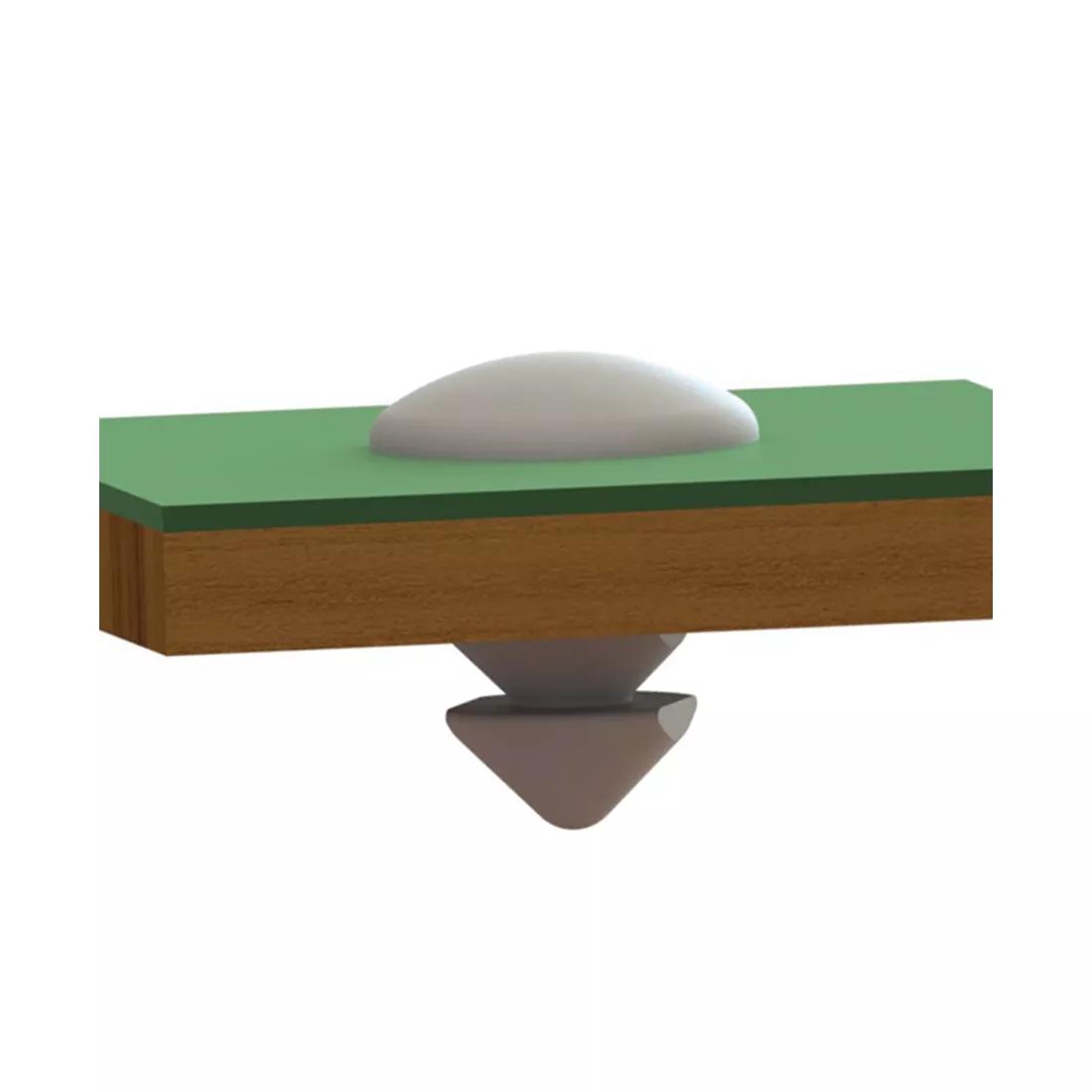

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.2871 |
| 5000 - 9999 | $0.2277 |
| 10000 - 24999 | $0.1954 |
| 25000 - 49999 | $0.1766 |
| 50000 + | $0.1541 |
Useful Information
Specifications
Imperial
Metric
| Anchor Length | 0.189 in |
|---|---|
| Head Diameter | 0.189 in |
| Head Height | 0.043 in |
| Compatible Hole Diameter Range | 0.126 in |
| Compatible Panel Thickness Range | 0.075 in |
| Overall Height | 0.232 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Mini Pawl Lock |
| Type | Type 2 |
| Rivet Head Shape | Mushroom |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
