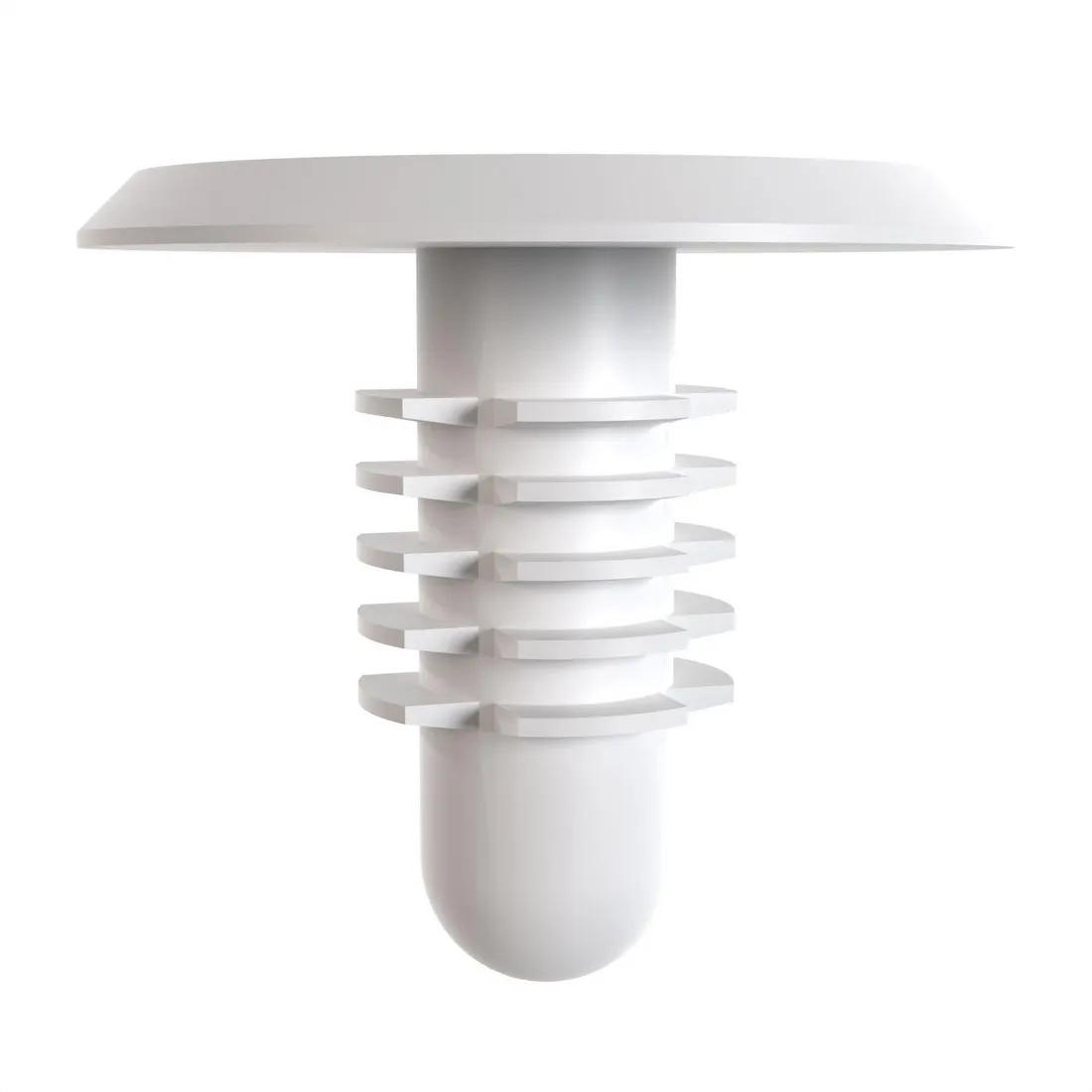

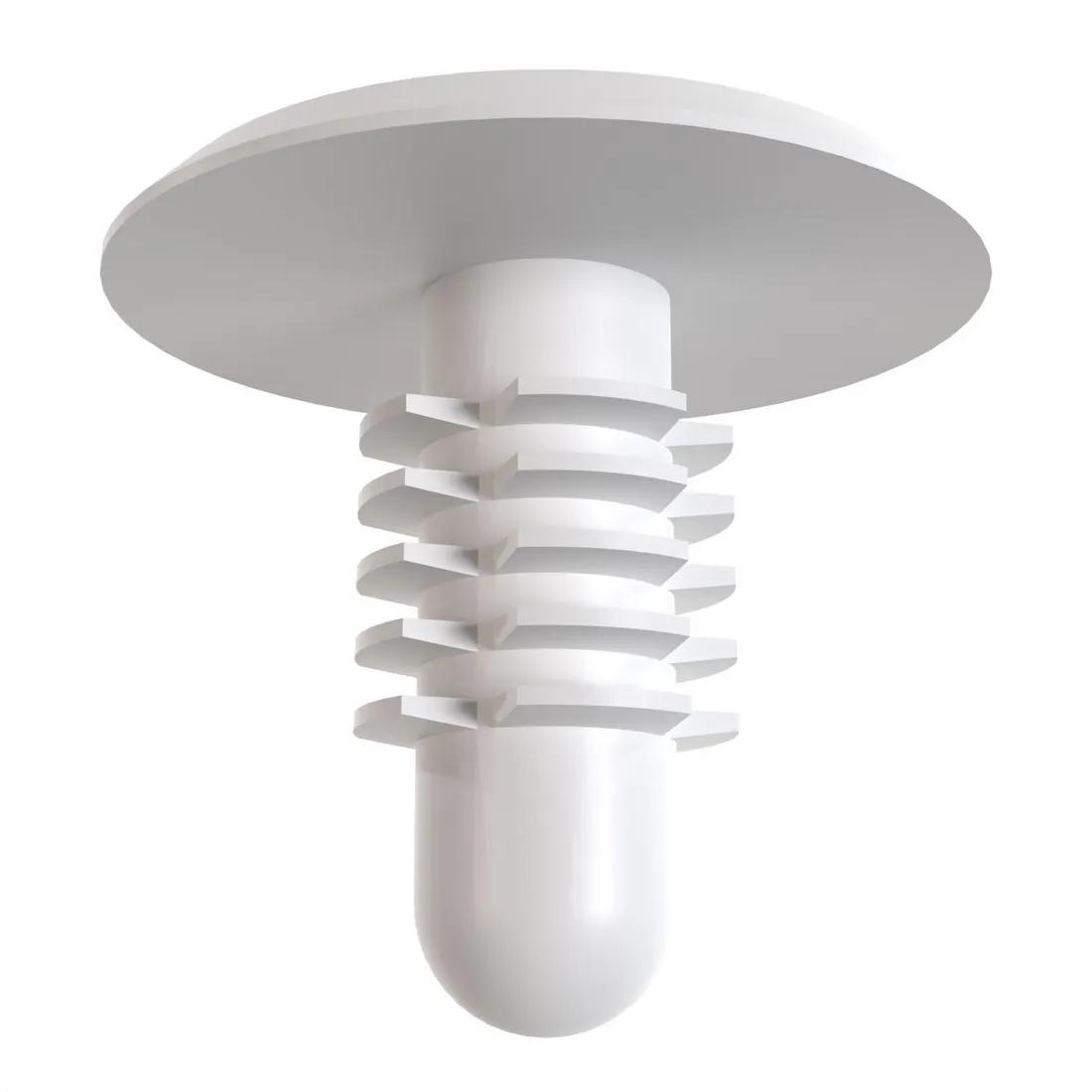

Natural Nylon Fir Tree Push-In Rivet - Type 2 Compatible Hole Diameter 6 mm | 0.236 in Compatible Panel Thickness Range 2 - 8 mm | 0.079 - 0.315 in
These rivets go into a 0.236 in diameter hole with a 2 - 8 mm | 0.079 - 0.315 in panel thickness range. Replaces Item No.(s): Skiffy 167006500002
Specifications
Imperial
|
|
|---|---|
| Anchor Length | 0.500 in |
| Compatible Hole Diameter | 0.236 in |
| Compatible Panel Thickness Range | 0.079 - 0.315 in |
| Head Diameter | 0.610 in |
| Head Height | 0.039 in |
| See all specs and customize | |
Pricing and options
Standard pack:
1000
Order in multiple of 1000
| Quantity | Unit price |
|---|---|
| 1 - 9999 | $0.1869 |
| 10000 + | $0.1638 |
Need a quote? For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond within 2 working days.
Specifications
Imperial
Metric
| Anchor Length | 0.500 in |
|---|---|
| Compatible Hole Diameter | 0.236 in |
| Compatible Panel Thickness Range | 0.079 - 0.315 in |
| Head Diameter | 0.610 in |
| Head Height | 0.039 in |
| Operating Temperature Range | -40 - 185 °F |
| Material | Nylon |
| Full Material | Nylon 6/6 |
| Color | Natural |
| Rivet Type | Fir Tree |
| Rivet Head Shape | Truss |
| Rivet Fitting Style | Push-In |
| Material Flammability Standard | UL94 V-2 |
