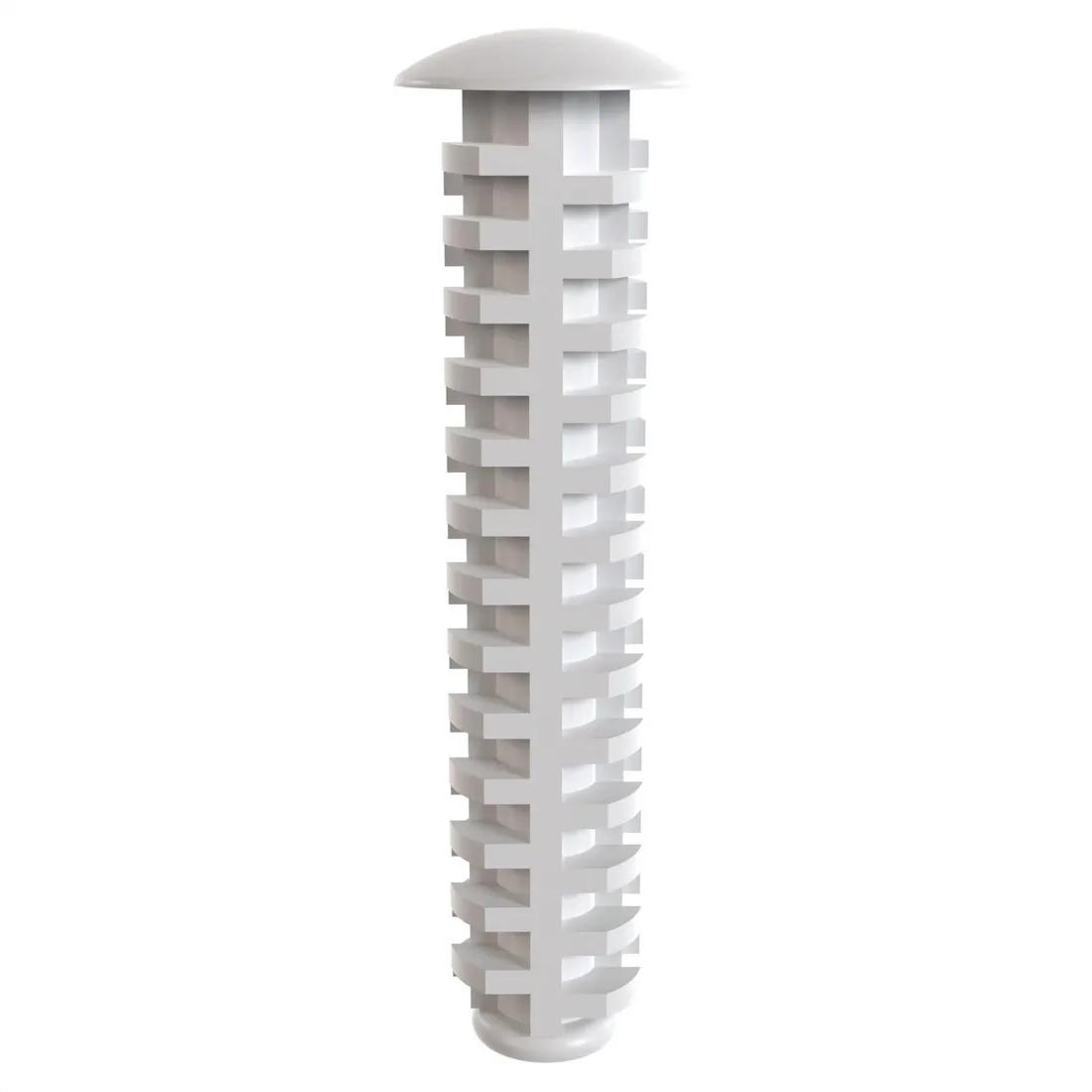

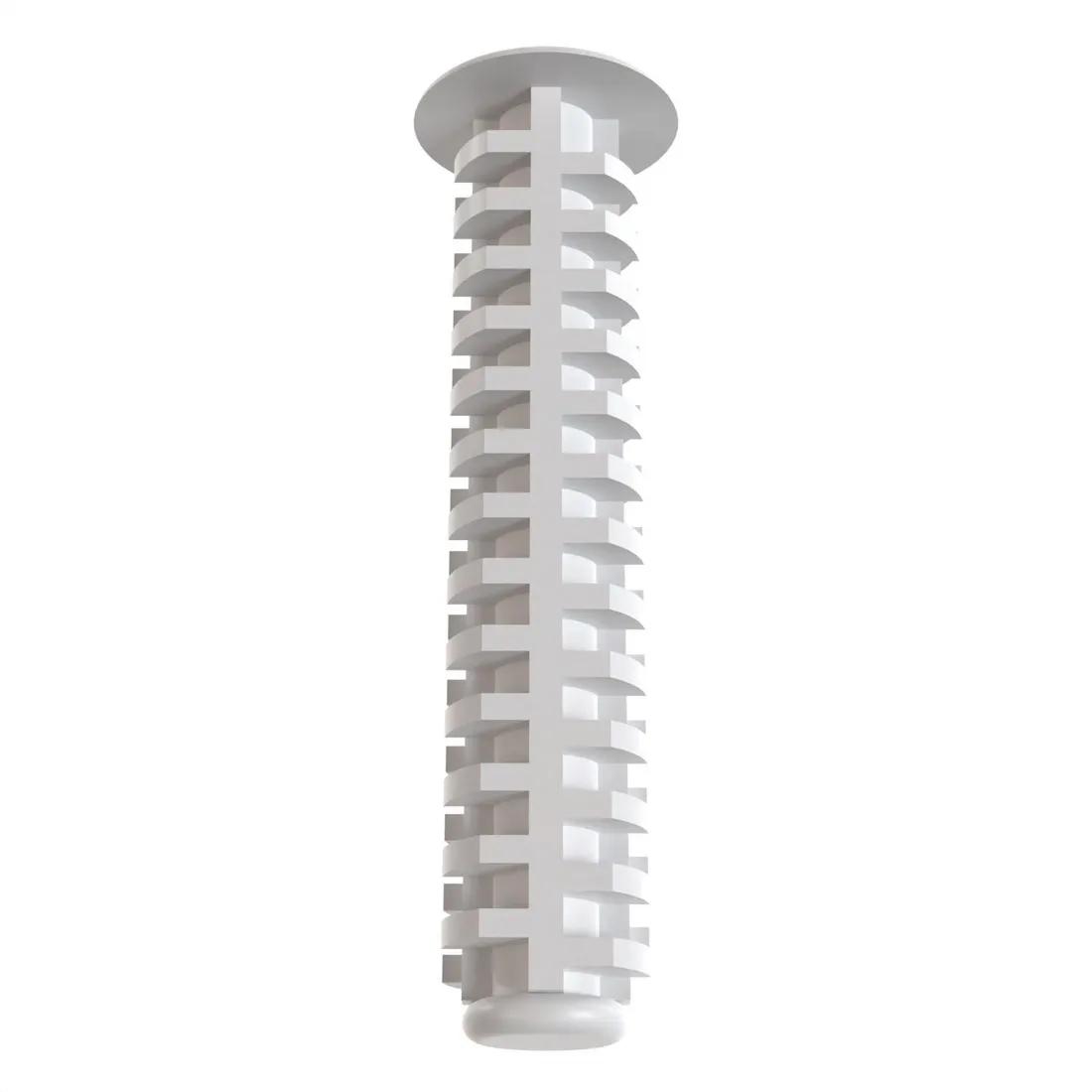

Fir Tree Rivet 3.0 mm 4.0 mm 16.5 mm Nylon Natural
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1995 |
| 10000 + | $0.171 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.728 in |
|---|---|
| Head Diameter | 0.217 in |
| Head Height | 0.039 in |
| Compatible Hole Diameter Range | 0.118 - 0.126 in |
| Compatible Panel Thickness Range | 0.157 - 0.65 in |
| Overall Height | 0.768 in |
| Colour | Natural |
| Full Material | Nylon 6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | Type 1 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
