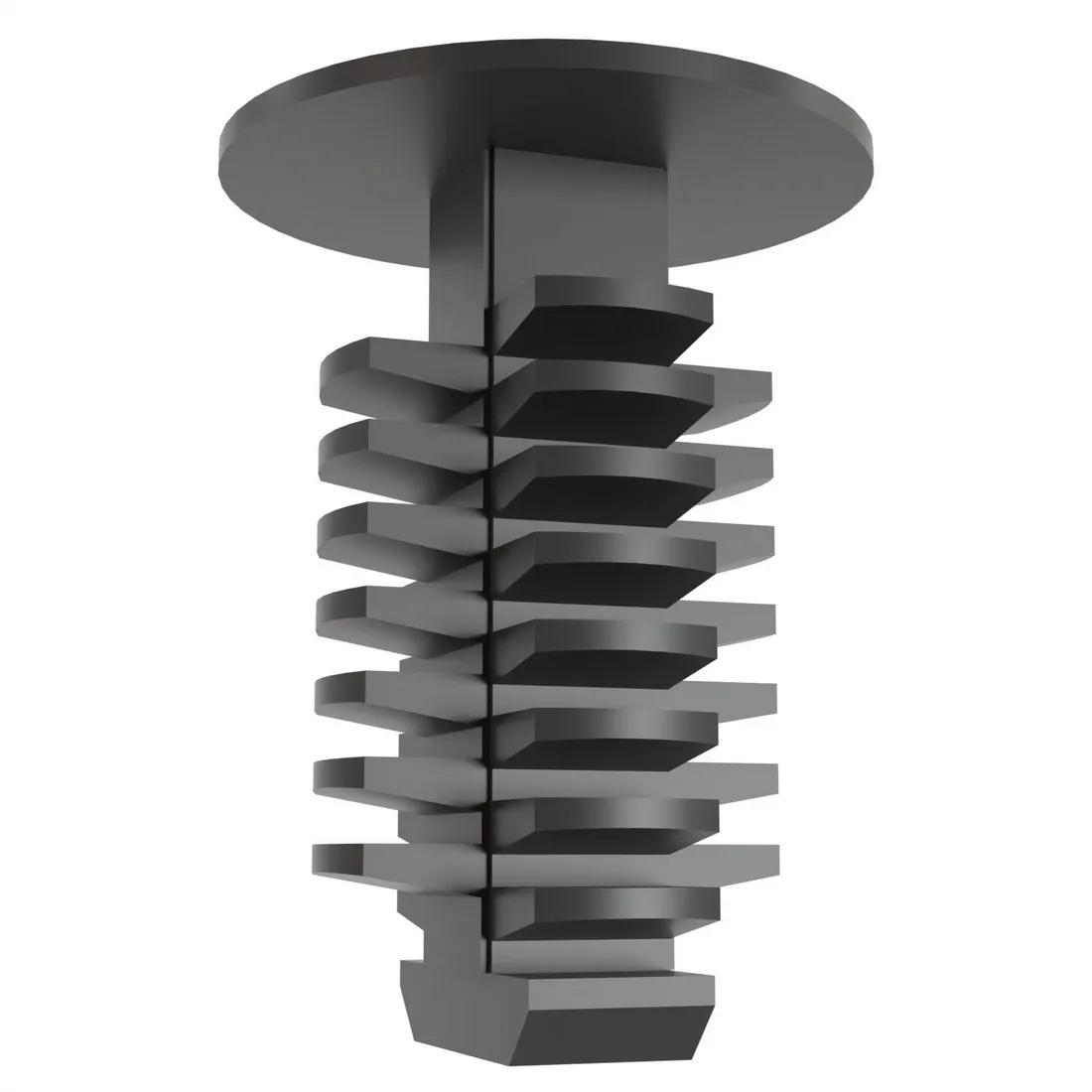

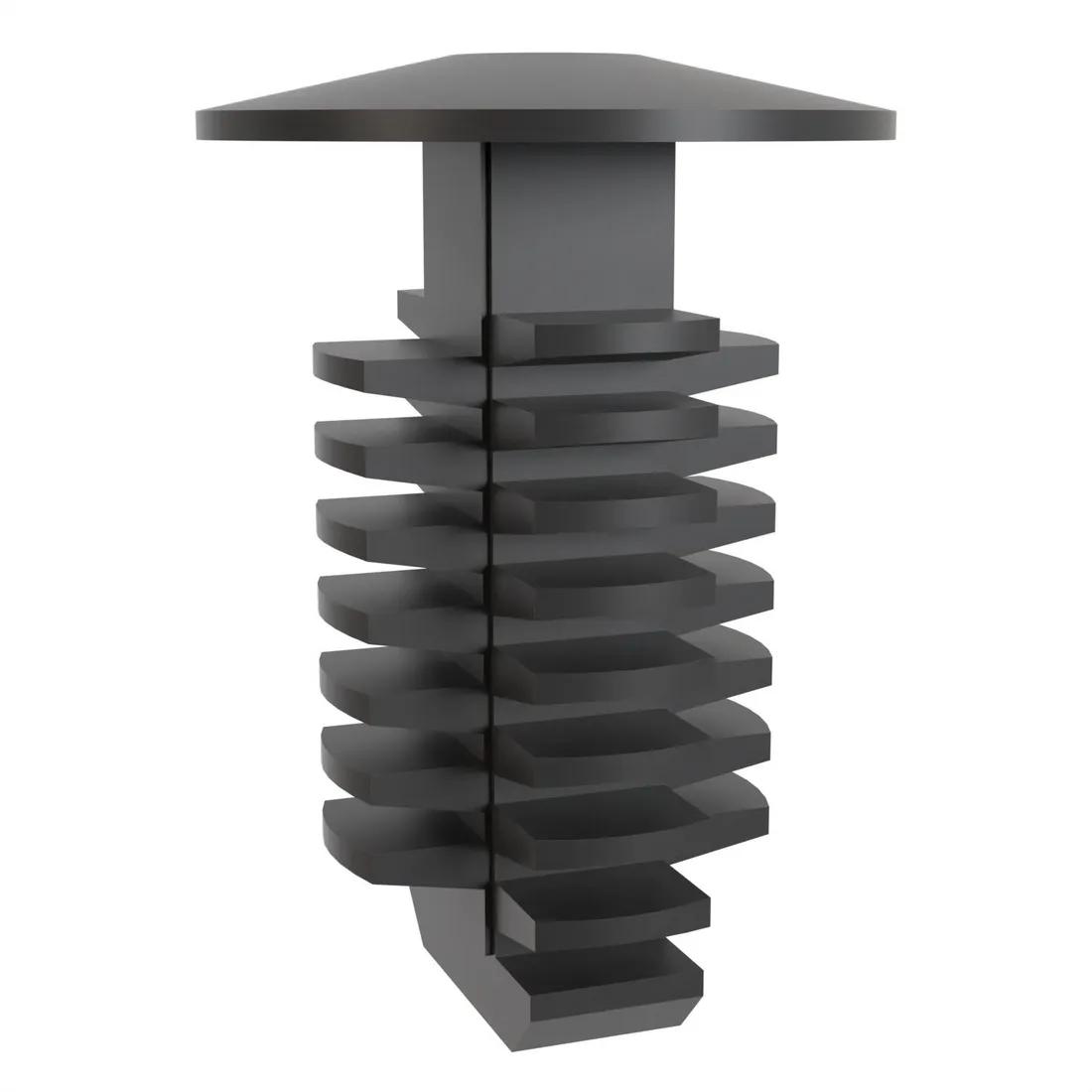

Black Nylon Fir Tree Push-In Rivet - Type 2 Compatible Hole Diameter 8 mm | 0.315 in Compatible Panel Thickness Range 3.3 - 12.7 mm | 0.130 - 0.500 in

Item code: 468829 1000 In stock

These rivets go into a 0.315 in diameter hole with a 3.3 - 12.7 mm | 0.130 - 0.500 in panel thickness range. Replaces Item No.(s): Skiffy 167013069902

Specifications

Specifications

Imperial
Metric
Anchor Length 0.661 in
Compatible Hole Diameter 0.315 in
Compatible Panel Thickness Range 0.130 - 0.500 in
Head Diameter 0.500 in
Head Height 0.059 in
See all specs and customize
Add sample +
Print page

Pricing and options

Standard pack: 1000

Order in multiple of 1000

SKU price information
Quantity Unit price
1 - 499 $0.8764
500 - 999 $0.4182
1000 - 9999 $0.2655
10000 - 19999 $0.2499
20000 + $0.2377
Standard pack: 1000

Order in multiple of 1000

Total price:

$0.88

1 x $0.8764

Need a quote? For large volumes and customized products, add to your cart and click request a quote, or email sales@essentracomponents.com and we will respond within 2 working days.

Specifications

Imperial
Metric
SKU attributes
Anchor Length 0.661 in
Compatible Hole Diameter 0.315 in
Compatible Panel Thickness Range 0.130 - 0.500 in
Head Diameter 0.500 in
Head Height 0.059 in
Operating Temperature Range -40 - 185 °F
Material Nylon
Full Material Nylon 6/6
Color Black
Rivet Type Fir Tree
Rivet Head Shape Truss
Rivet Fitting Style Push-In
Material Flammability Standard UL94 V-2
