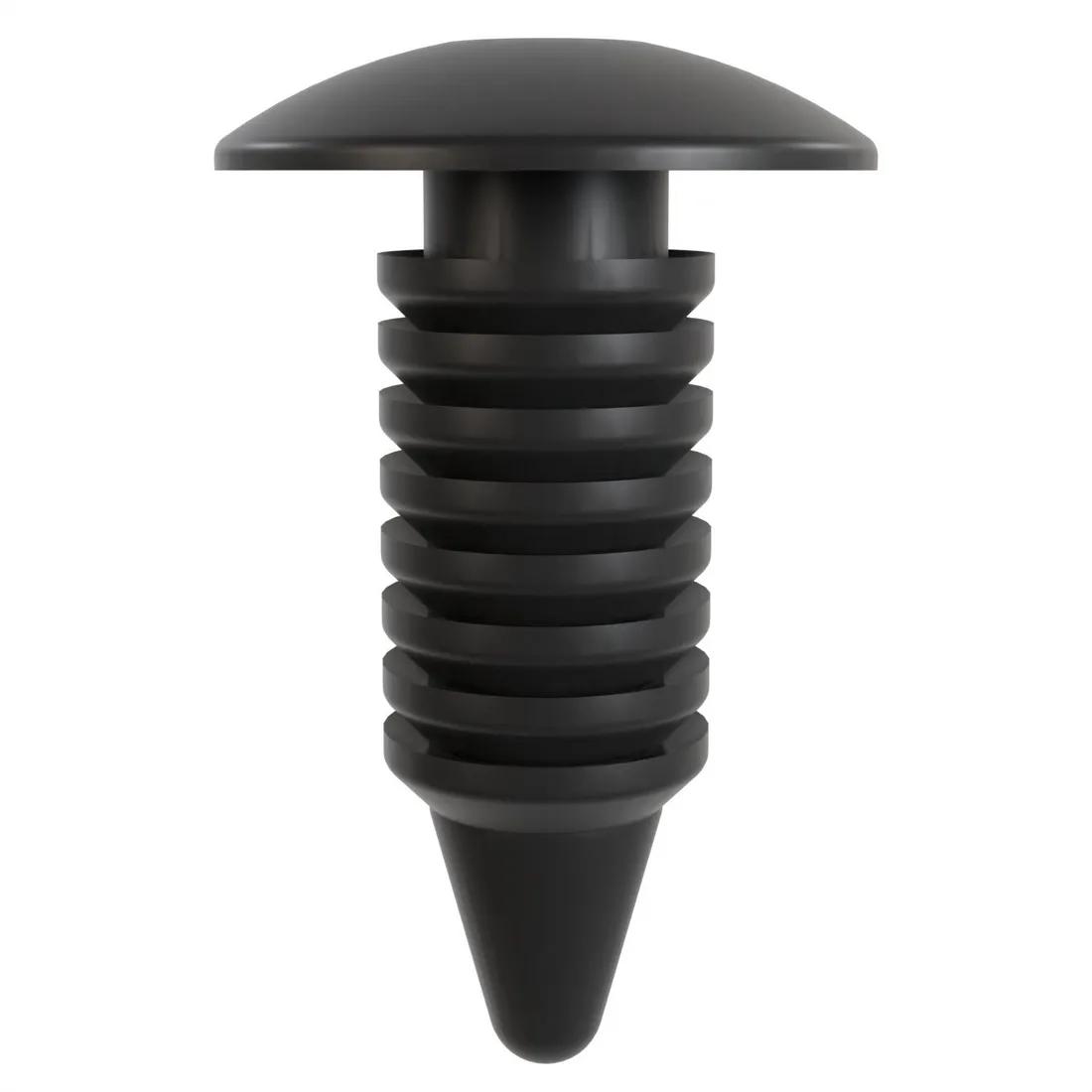

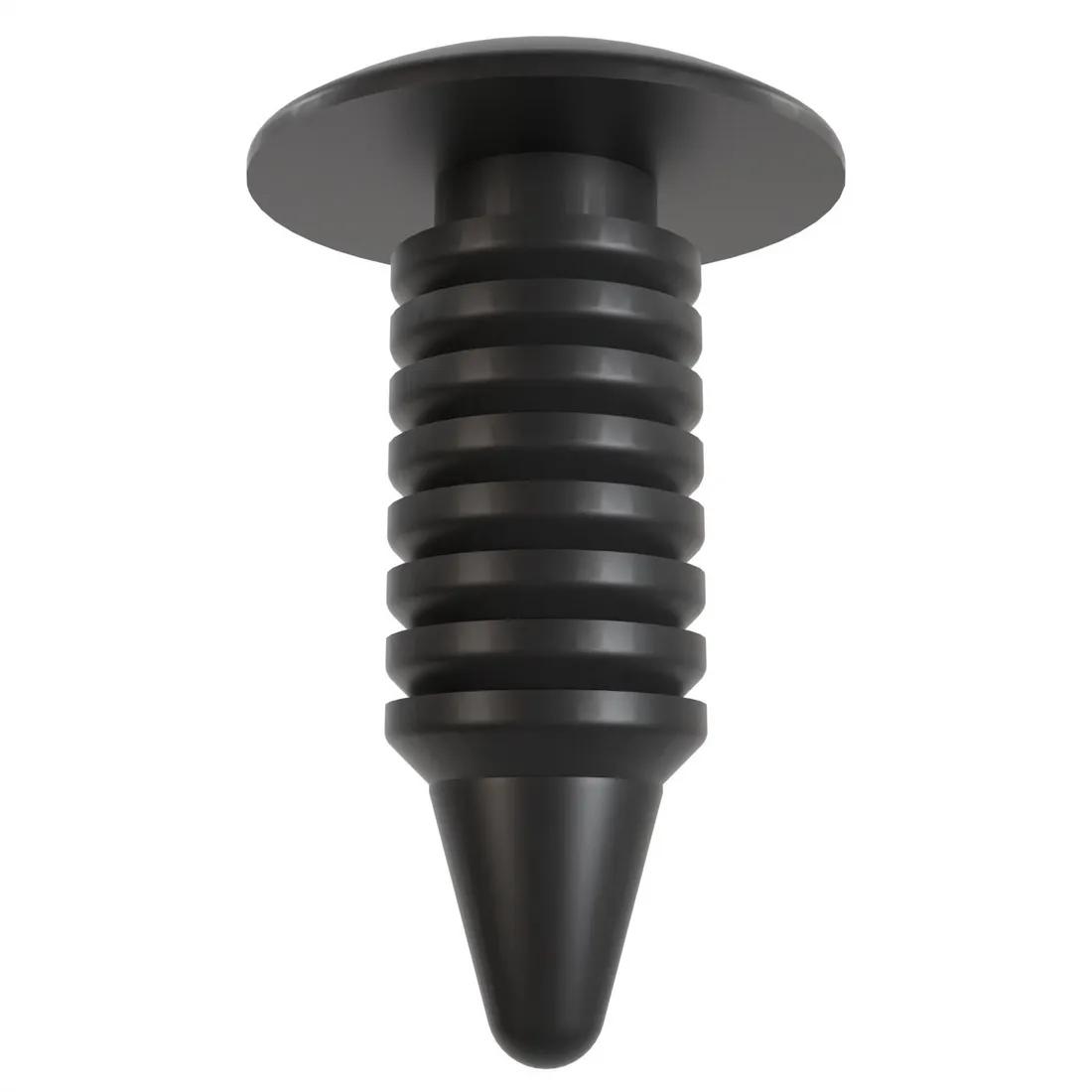

Barbed Rivet -; ; Compatible Panel Thickness Range 2.4 - 12.7 mm | 0.094 - 0.500 in;Black;Nylon 6/6
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.481 |
| 10000 + | $0.4591 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.890 in |
|---|---|
| Head Diameter | 0.626 in |
| Head Height | 0.110 in |
| Compatible Hole Diameter Range | 0.307 in |
| Compatible Panel Thickness Range | 0.094 - 0.5 in |
| Overall Height | 1.000 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | 2 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
