Push-In Rivet - Black; UL94 V-2; Nylon; Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in

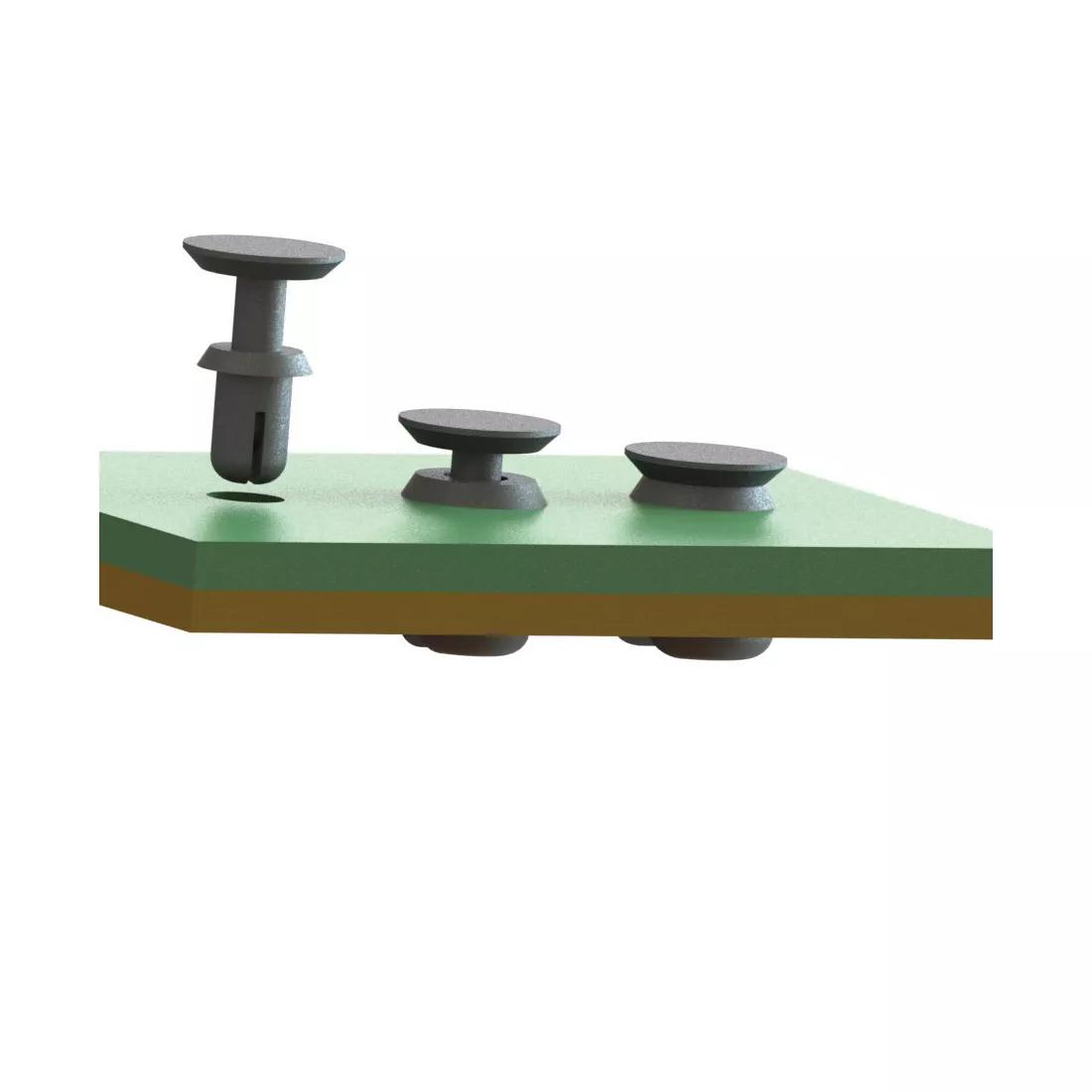

H-Type Push In Rivets feature a head design that helps make assembly and removal quick and easy. To install, simply insert the rivet into the workpiece, press down on the flat headed pin, which engages the grommet. As the pin pushes down into the grommet, the legs of the grommet expand and lock the rivet assembly firmly in place. The pins head is flat, with a bevelled edge. The flat surface provides a clean and tidy appearance. Made from UL rated Nylon 6.
Item code:

SRH-3100

2000 In stock For more information Delivery & returns
Loading...
SKU price information
Quantity Unit price
1000 - 4999 $0.3475
5000 - 9999 $0.2757
10000 - 24999 $0.2366
25000 - 49999 $0.2104
50000 + $0.1826
Standard pack: 1000

Order in multiple of 1000

Total price:

$347.50

1000 x $0.3475

Add sample +

Specifications

Imperial
Metric
SKU attributes
Anchor Length 0.394 in
Head Diameter 0.252 in
Head Height 0.039 in
Compatible Panel Thickness Range 0.295 - 0.335 in
Operating Temperature Range -40 - 239 °F
Rivet Type Snap
Rivet Fitting Style Push-In
Colour Black
Full Material Nylon 6
Material Flammability Standard UL94 V-2
