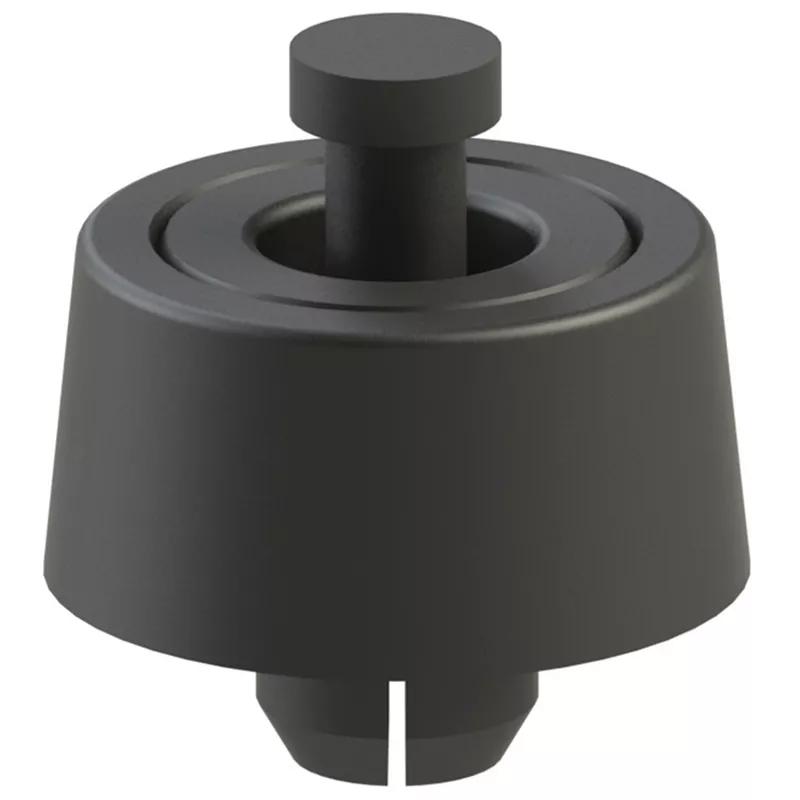

Rivet Mount Feet - TPE ; Height 6.0 mm | 0.236 in ;Base Diameter 21.1 mm | 0.830 in ; Minimum Compatible Hole Diameter - 7.7 mm | 0.305 in ; Minimum Panel Thickness - 5 mm | 0.197 in
Soft Fast Foot that is made from UL94 HB rated black TPE (-60 to 95°C), which has a hardness of 86 Shore A. The pin is made from PP (0 to 65°C) and is also UL94 HB rated. Ideal for wooden cabinets, equipment enclosures, free-standing, electrical/electronic equipment.
Useful Information
Documents
Specifications
Imperial
Metric
| Base Diameter | 0.827 in |
|---|---|
| Base Height | 0.236 in |
| Compatible Hole Diameter | 0.305 in |
| Maximum Compatible Hole Diameter | 0.305 in |
| Maximum Panel Thickness | 0.315 in |
| Minimum Compatible Hole Diameter | 0.307 in |
| Minimum Panel Thickness | 0.197 in |
| Base Material | Elastomer |
| Base Shape | Round |
| Color | Black |
| Full Material | Thermoplastic Elastomer |
