Rivet Mount Feet - TPE ; Height 4.8 mm | 0.189 in ;Base Diameter 10 mm | 0.394 in ; Minimum Compatible Hole Diameter - 3.6 mm | 0.142 in ; Minimum Panel Thickness - 2.5 mm | 0.098 in

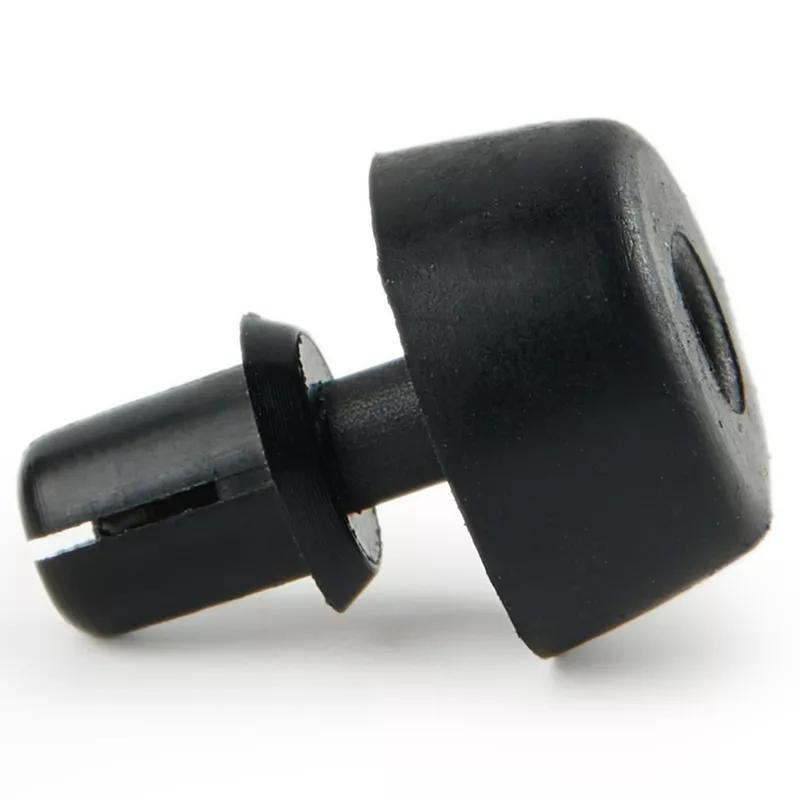

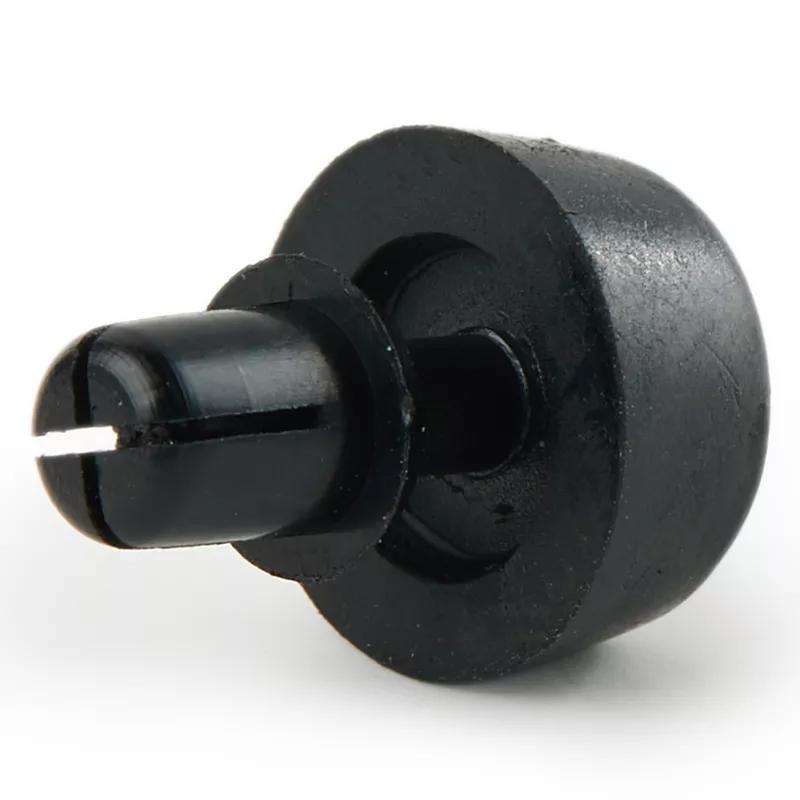

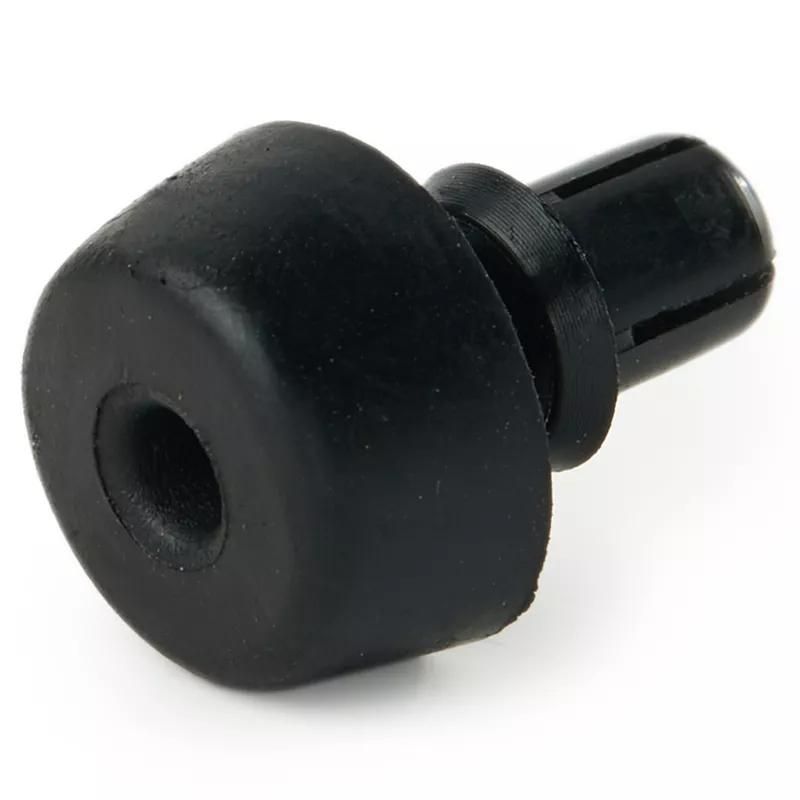

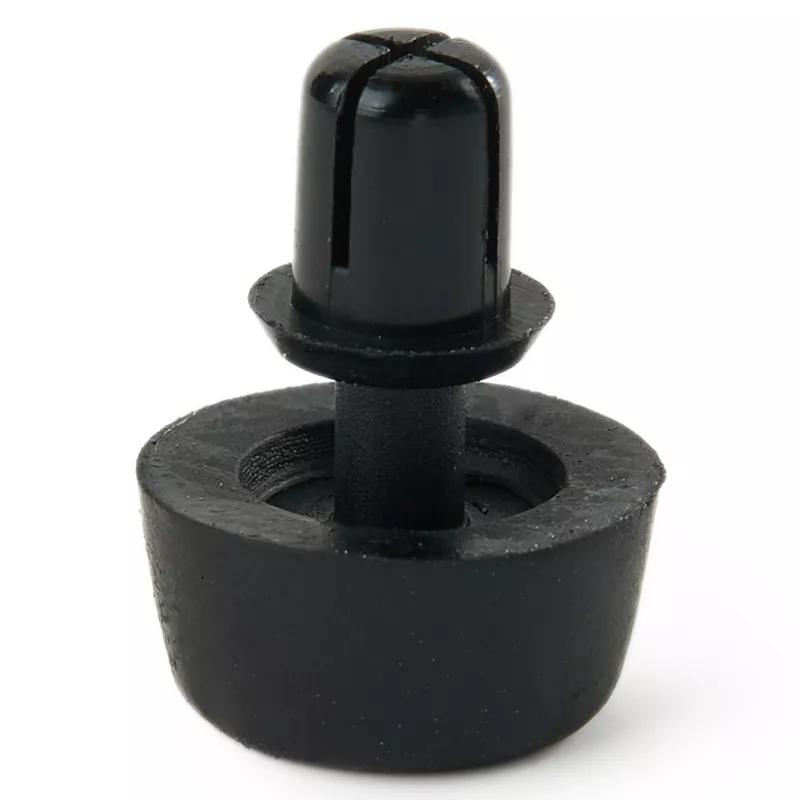

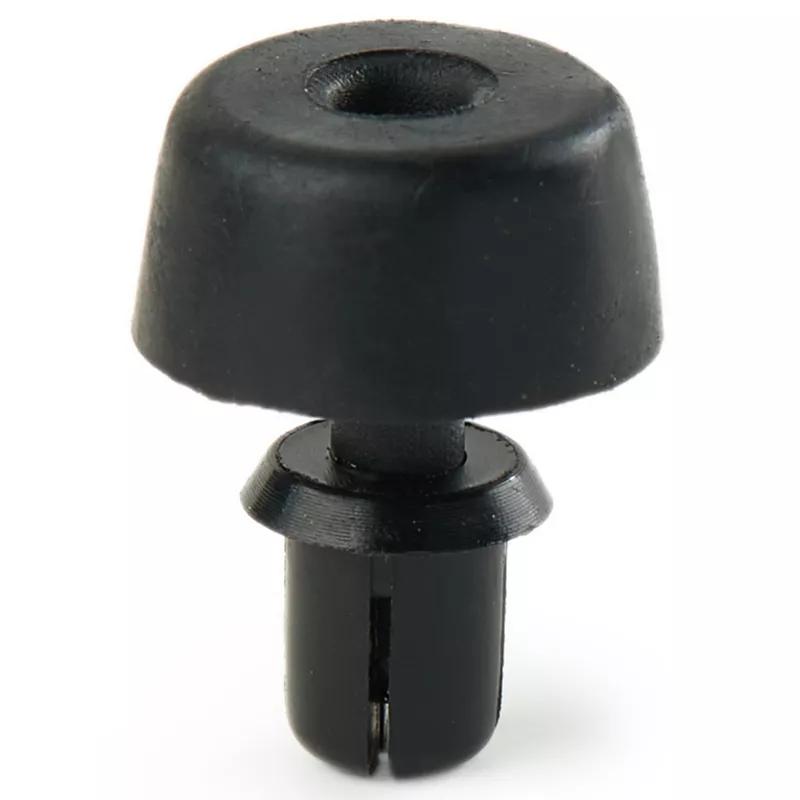

Foot, Snap Rivet Mount has a black appearance. The rivet is made from UL94 V2 rated PA 6/6 (-50 to 115°C) and the base is made from TPE (-40 to 100°C). Secured with a rivet to protect floors and tube ends.
Useful Information
Documents
Specifications
Imperial
Metric
| Base Diameter | 0.394 in |
|---|---|
| Base Height | 0.189 in |
| Compatible Hole Diameter | 0.165 in |
| Maximum Compatible Hole Diameter | 0.165 in |
| Maximum Panel Thickness | 0.138 in |
| Minimum Compatible Hole Diameter | 0.161 in |
| Minimum Panel Thickness | 0.098 in |
| Base Material | Elastomer |
| Base Shape | Round |
| Color | Black |
| Full Material | Nylon;Thermoplastic Elastomere |
