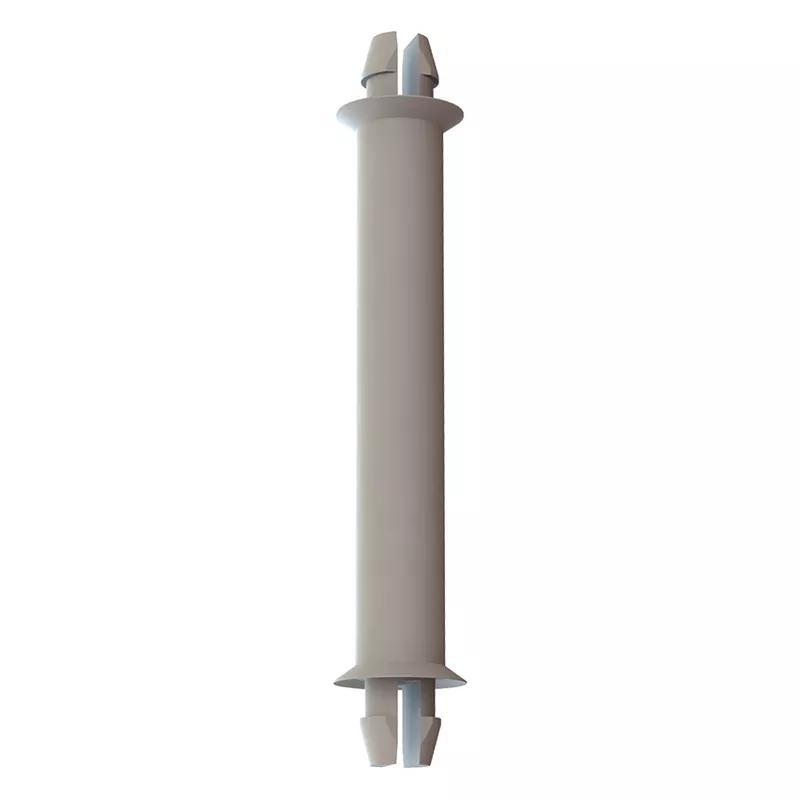

Snap Lock Support 25.4 mm PA UL94 V-2 Natural
These Locking Two Prong Cupped/Locking Two Prong Cupped PCB Supports mount into Locking Two Prong and Locking Two Prong holes. The spacer length is 25.4 mm | 1.000 in and they are made of .
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.1351 |
| 10000 - 24999 | $0.1216 |
| 25000 + | $0.1094 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.157 in |
|---|---|
| Hole Diameter A | 0.126 in |
| Hole Diameter B | 0.126 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Maximum Panel Thickness B | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 1 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Locking Two Prong Fix |
| Hole B Fix Type | Locking Two Prong Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
