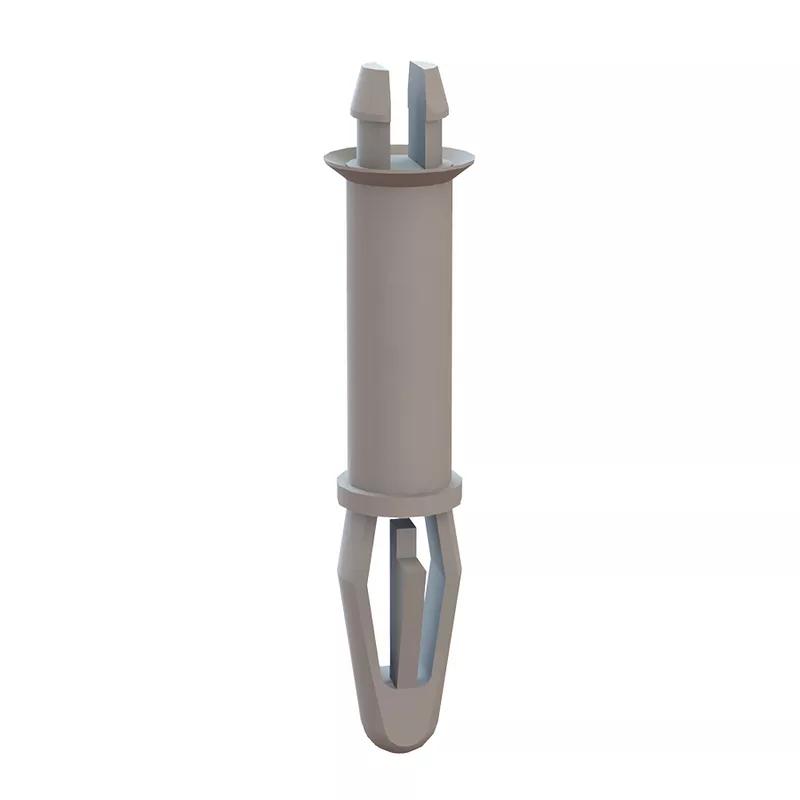

PCB Support - ; ; Natural ; Nylon ; 12.7 mm | 0.500 in
These Snap Fit Bayonet Nose/Locking Two Prong Cupped PCB Supports mount into and holes. The spacer length is and they are made of ,
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1158 |
| 10000 - 24999 | $0.1042 |
| 25000 + | $0.0938 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.154 in |
|---|---|
| Hole Diameter A | 0.156 in |
| Hole Diameter B | 0.125 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.062 in |
| Maximum Panel Thickness B | 0.062 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Panel Thickness A Range | 0.062 in |
| Panel Thickness B Range | 0.062 in |
| Spacer Length | 0.500 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
