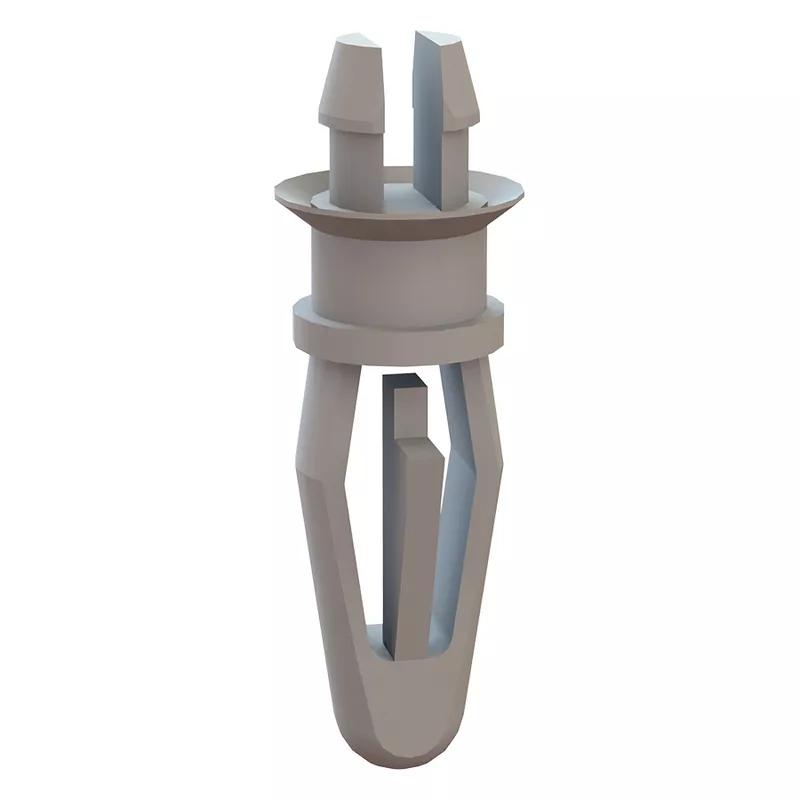

Snap Lock Support 3.2 mm PA UL94 V-2 Natural
These Snap Fit Bayonet Nose/Locking Two Prong Cupped PCB Supports mount into and holes. The spacer length is and they are made of ,
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1421 |
| 10000 - 24999 | $0.1364 |
| 25000 + | $0.1312 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.217 in |
|---|---|
| Hole Diameter A | 0.157 in |
| Hole Diameter B | 0.126 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Maximum Panel Thickness B | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 0.126 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Locking Bayonet Nose Fix |
| Hole B Fix Type | Locking Two Prong Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
