Threaded Screw Support 10.0 mm #8,M4 Female Thread Fix

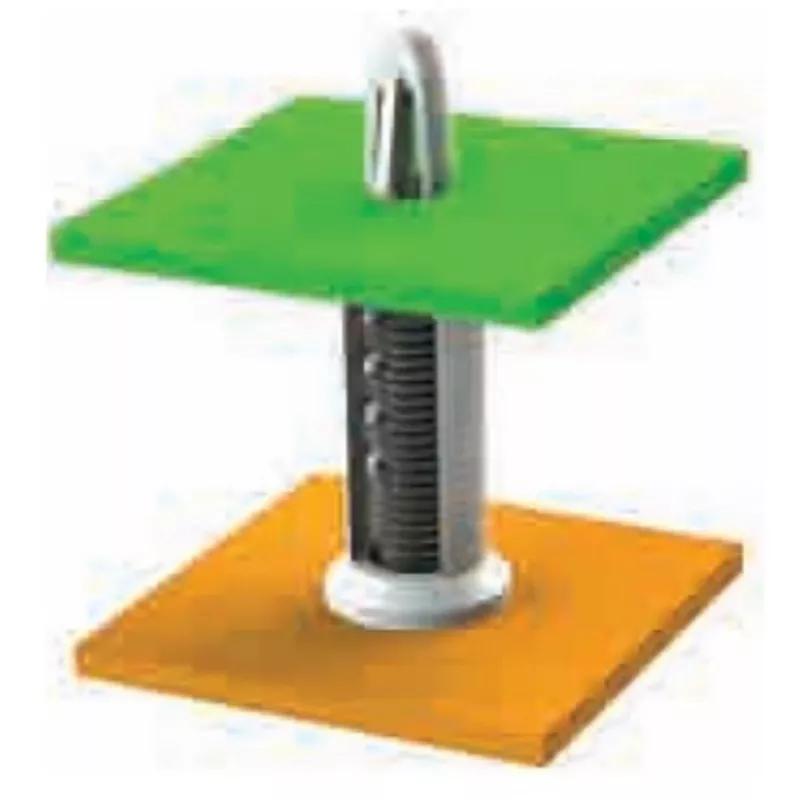

This locking bayonet nose PCB support is held down by an M4 screw or stud. This item is manufactured with material rated UL94 V-2.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3334 |
| 10000 - 24999 | $0.3031 |
| 25000 + | $0.2779 |
Specifications
Imperial
Metric
| Body Diameter | 0.28 in |
|---|---|
| Hole Diameter A | 0.157 in |
| Locking Head Height A | 0.402 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 0.394 in |
| Colour | Natural |
| Compatible Thread Sizes (All) | #8,M4 |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Female Thread Fix |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
