Screw Support - Body Diameter 7.1 mm | 0.280 in ; Inside Diameter 4.3 mm | 0.169 in ; Spacer Length 15.9 mm | 0.625 in ; Maximum Panel Thickness A 2.2 mm | 0.086 in ; #8,M4

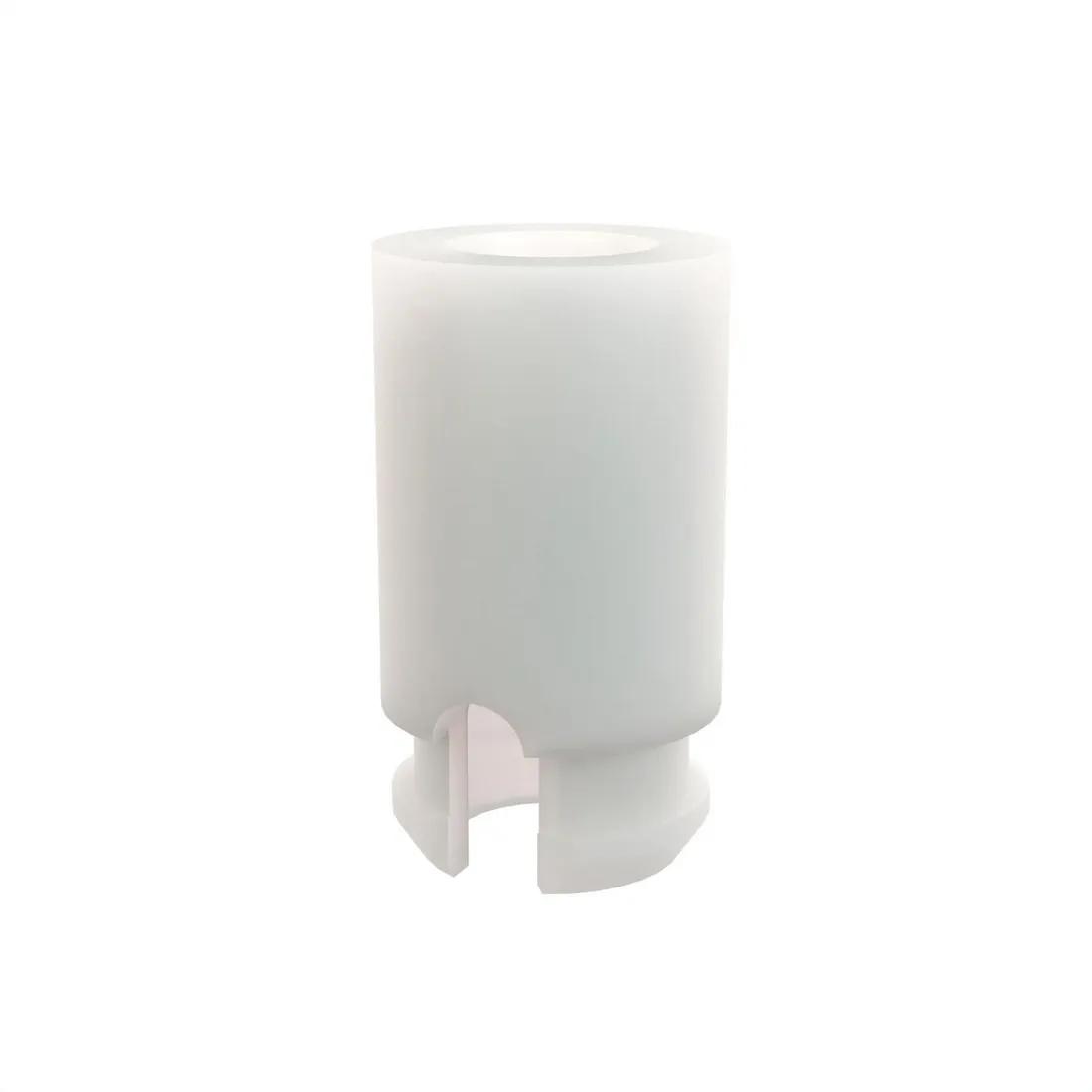

This self retaining spacer provides insulation for a screw used to fix a circuit board to a panel. The spacer snaps into the board and the screw is then passed through and fixed with a nut. This spacer is manufactured with UL94 V-2 rated material
Useful Information
Specifications
Imperial
Metric
| Body Diameter | 0.28 in |
|---|---|
| Hole Diameter A | 0.232 in |
| Inside Diameter | 0.169 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.087 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 0.626 in |
| Color | Natural |
| Compatible Thread Sizes (All) | #8,M4 |
| Full Material | Polyamide 6.6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Hole Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Style | Non Stacking |
