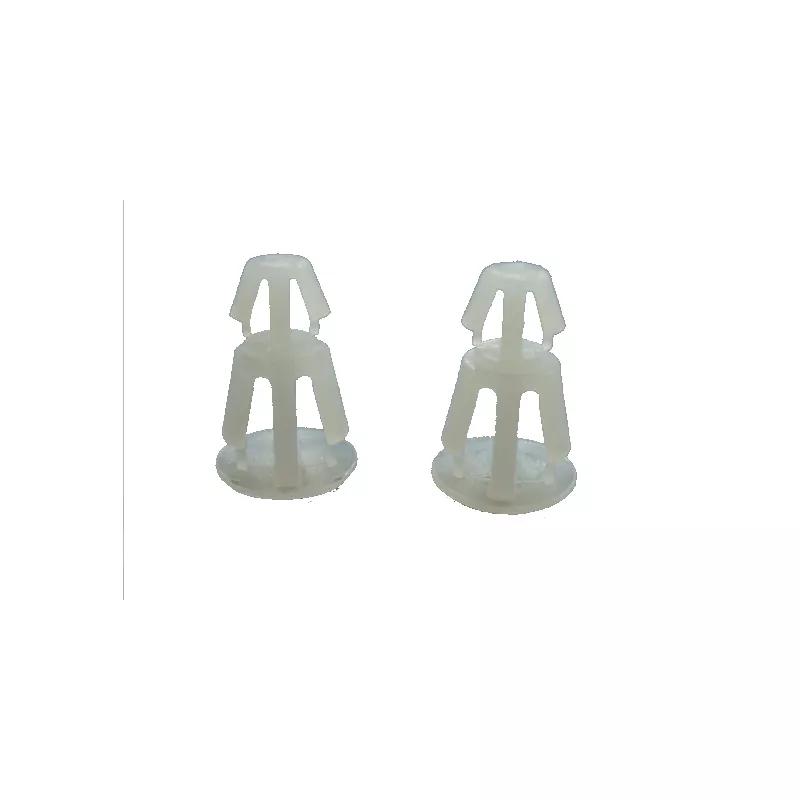

Reverse Locking Support - Snap-Locking, Arrowhead - Maximum Panel Thickness A 1.7 mm | 0.067 in ; Spacer Length 10.0 mm | 0.394 in ;

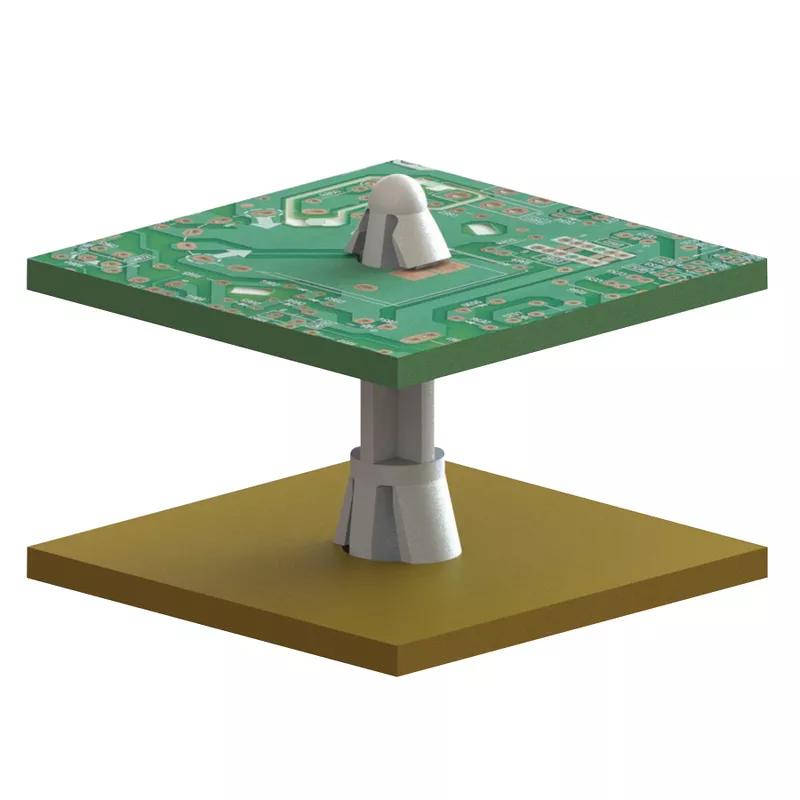

Reverse Locking Support - Snap Locking, Arrowhead. Suitable for a hole diameter of and a maximum panel thickness of one end and, a hole diameter of and maximum panel thickness of the other end. Overall spacer length - 10.0 mm | 0.394 in
Useful Information
Documents
Specifications
Imperial
Metric
| Hole Diameter A | 0.157 in |
|---|---|
| Hole Diameter B | 0.217 in |
| Locking Head Height A | 0.122 in |
| Locking Head Height B | 0.087 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.067 in |
| Maximum Panel Thickness B | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness A | 0.047 in |
| Minimum Panel Thickness B | 0.031 in |
| Panel Thickness A Range | 0.047 - 0.067 in |
| Panel Thickness B Range | 0.031 - 0.063 in |
| Spacer Length | 0.394 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Snap Lock Fix |
