N/A - Non-Locking Bayonet Fix ; Locking Arrowhead Fix ; Spacer Length 46 mm | 1.810 in ; Operating Temperature Range -40 - 85 °C | -40 - 185 °F

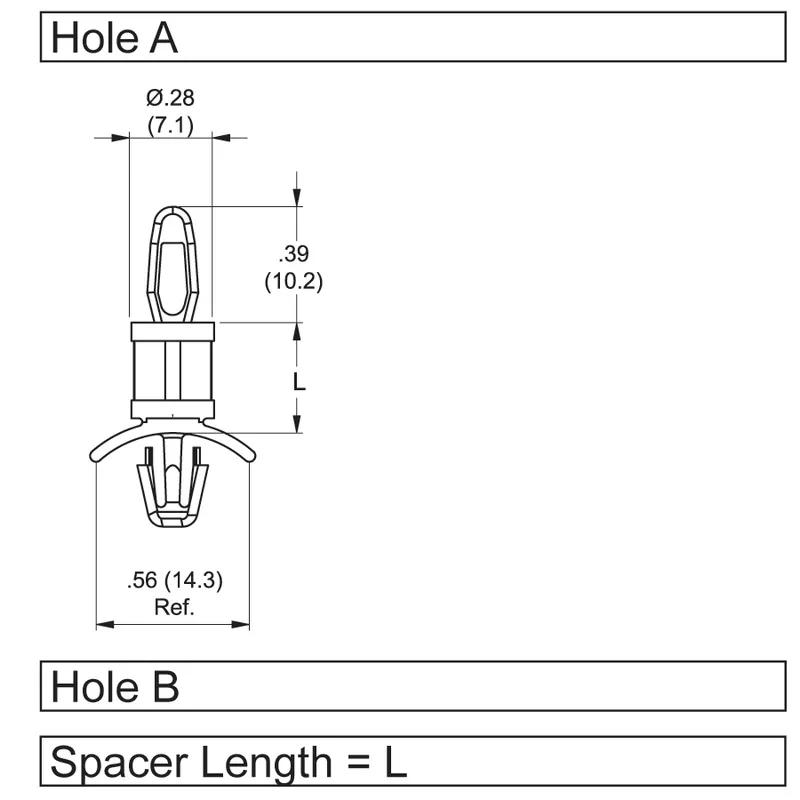

Locking Circuit Board Support is made from Natural Nylon 6/6 and has a non-locking bayonet on one side and a locking arrowhead on the opposite side.
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.4182 |
| 10000 - 24999 | $0.4015 |
| 25000 + | $0.3858 |
Useful Information
Documents
Certificates
Specifications
Imperial
Metric
| Hole Diameter A | 4 mm |
|---|---|
| Hole Diameter B | 4.7 mm |
| Maximum Operating Temperature | 85 °C |
| Maximum Panel Thickness A | 1.6 mm |
| Maximum Panel Thickness B | 2 mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Panel Thickness B | 0.8 mm |
| Operating Temperature Range | -40 - 85 °C |
| Panel Thickness A Range | 1.6 mm |
| Panel Thickness B Range | 0.8 - 2 mm |
| Spacer Length | 44.5 mm |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Non-Locking Bayonet Fix |
| Hole B Fix Type | Locking Arrowhead Fix |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
