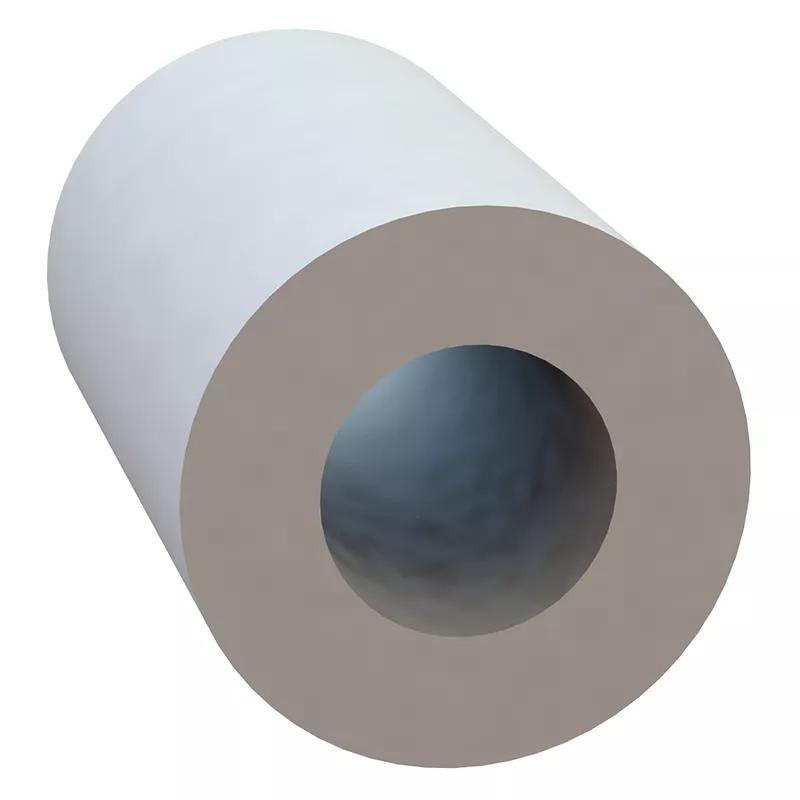

Spacer - 6.6 mm | 0.260 in ; 12.7 mm | 0.500 in ; 20.7 mm | 0.813 in
This round non-threaded spacer product provides physical spacing between components, as well as providing thermal and electrical insulation. Flame resistance rating UL94 V2. Replaces Item No.(s): SWS2300A
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.098 |
| 10000 - 24999 | $0.0881 |
| 25000 + | $0.0794 |
Specifications
Imperial
Metric
| Inside Diameter | 0.260 in |
|---|---|
| Maximum Operating Temperature | 185 °F |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Outside Diameter | 0.500 in |
| Spacer Length | 0.813 in |
| Color | Natural |
| Compatible Thread Sizes (All) | 1/4 (M6) |
| Full Material | Nylon 6/6 |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
| Spacer Shape | Round |
