Circuit Board Extractor 1.6 mm Roll Pin 38.1 mm Nylon

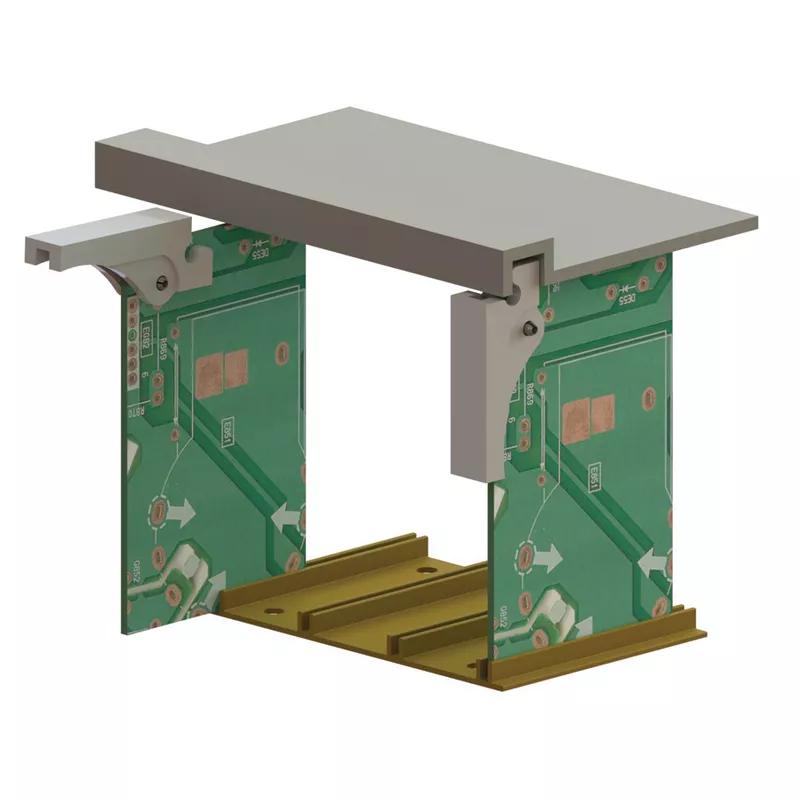

This PCB extractor is mounted on the board with installation pin RRP-250. It locks the board in when installed and helps to remove the board when pulling on the extractor.
Item code:

R110710-062

In production For more information Delivery & returns
Loading...
SKU price information
Quantity Unit price
100 - 9999 $2.1365
10000 - 24999 $1.0491
25000 + $0.9615
Standard pack: 100

Order in multiple of 100

Total price:

$213.65

100 x $2.1365

Add sample +

Useful Information

Documents

Specifications

Imperial
Metric
SKU attributes
Maximum Operating Temperature 284 °F
Minimum Operating Temperature -22 °F
Overall Height 0.654 in
Overall Width 1.5 in
Panel Thickness 0.063 in
Additional Hardware Included Roll Pin
Colour Natural
Full Material Glass Filled Nylon 6/6
Material Flammability Standard UL94 V-0
Style 2
