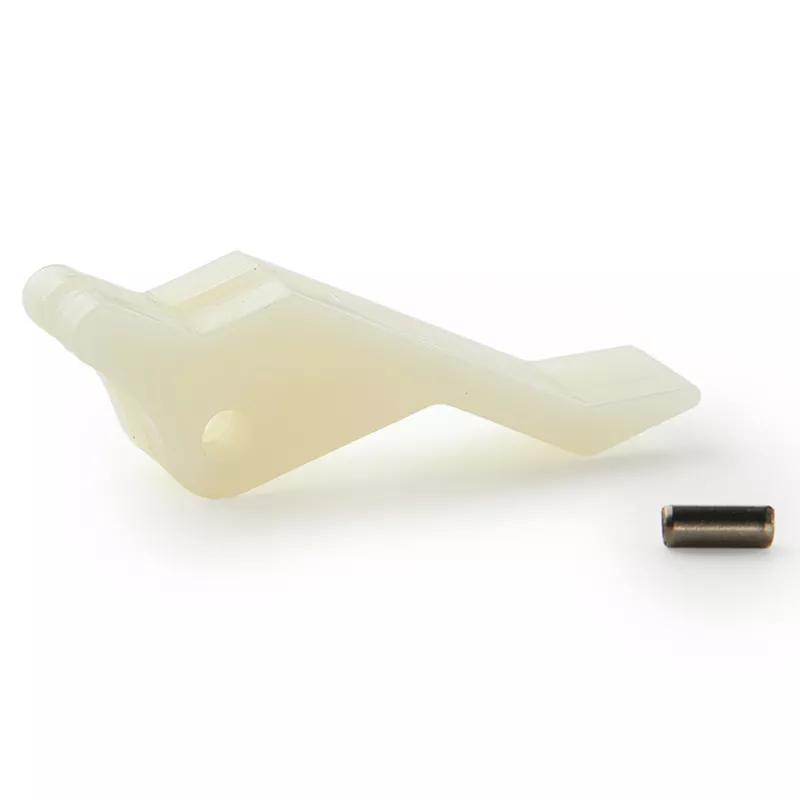

Circuit Board Extractor 2.4 mm Roll Pin 7.4 mm Nylon
This PCB extractor is mounted on the board with installation pin RRP-250. It locks the board in when installed and helps to remove the board when pulling on the extractor.
Loading...
| Quantity | Unit price |
|---|---|
| 100 - 9999 | $2.1365 |
| 10000 - 24999 | $1.0491 |
| 25000 + | $0.9615 |
Useful Information
Documents
Specifications
Imperial
Metric
| Maximum Operating Temperature | 194 °F |
|---|---|
| Minimum Operating Temperature | -40 °F |
| Overall Height | 0.646 in |
| Overall Width | 0.291 in |
| Panel Thickness | 0.094 in |
| Additional Hardware Included | Roll Pin |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Style | 3 |
