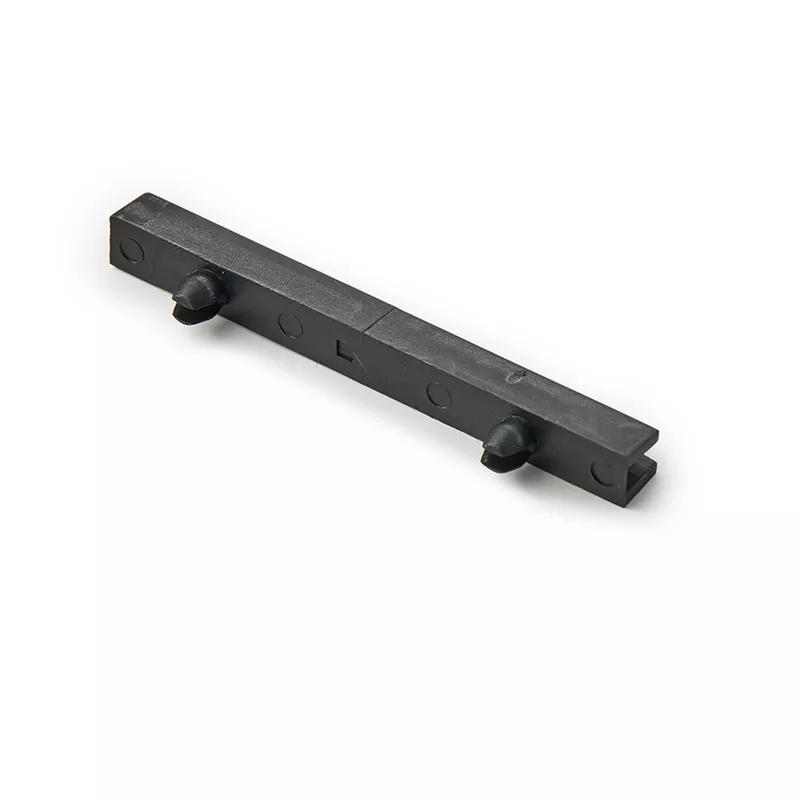

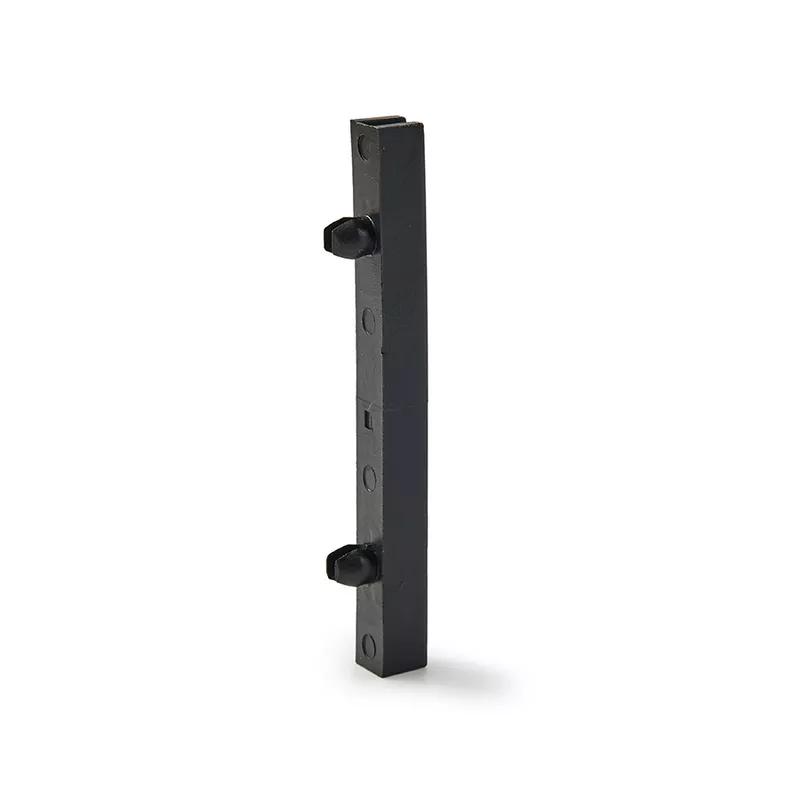

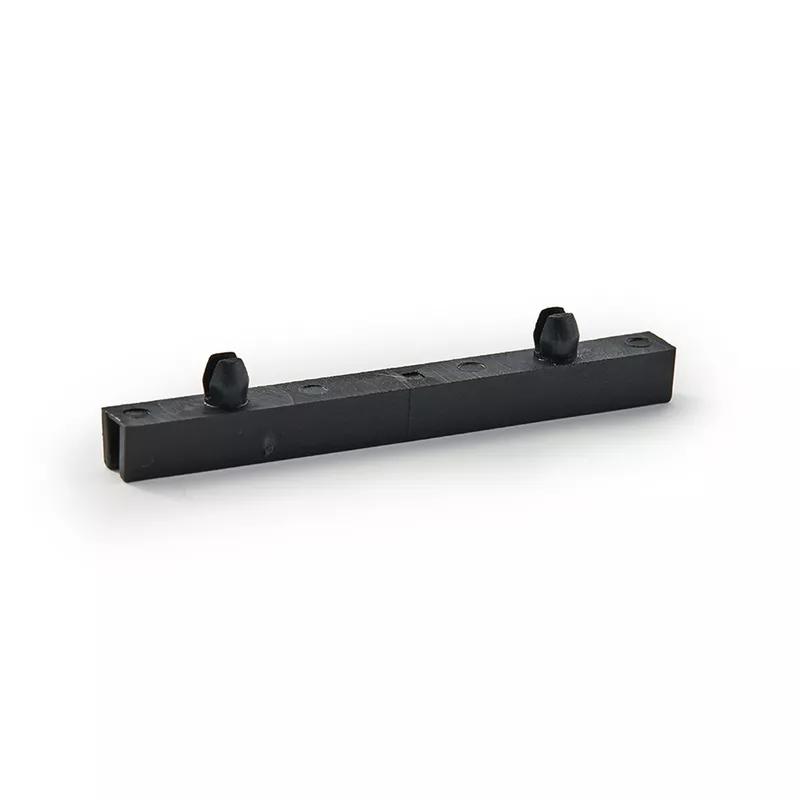

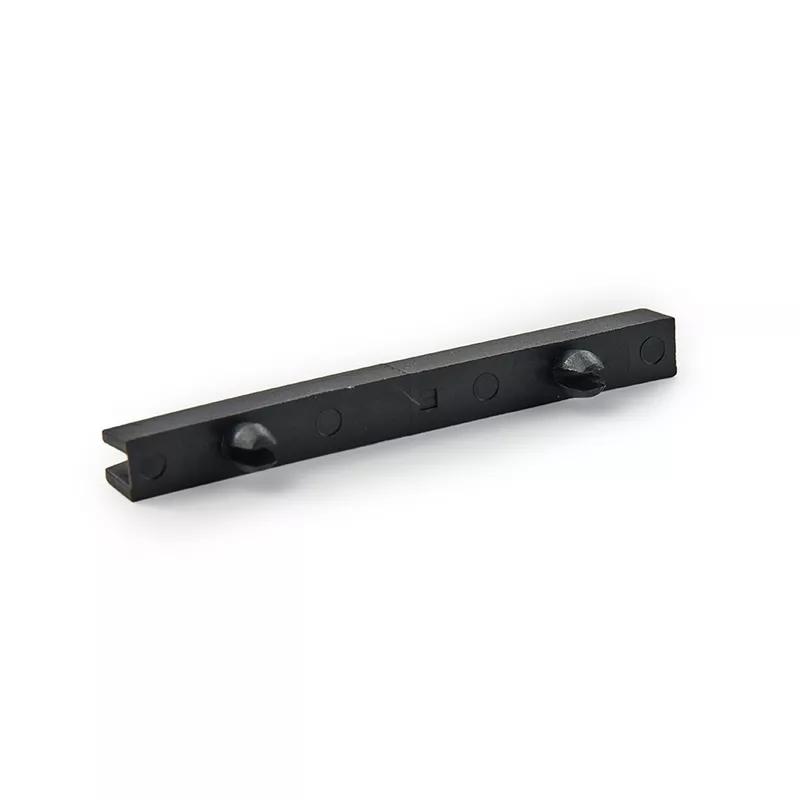

Horizontal Card Guide - 1.6 mm | 0.062 in ; 63.5 mm | 2.500 in
The slot depth of .20 in allows for maximum board retention, good for high vibration and shock applications. The overall length is 2.500 in. It is designed to hold a PC board with a maximum thickness of 0.062 in
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $1.291 |
| 10000 - 24999 | $1.1736 |
| 25000 + | $1.0758 |
Specifications
Imperial
Metric
| Accepts Panel Thickness | 0.062 in |
|---|---|
| Distance Between Fixing Holes | 1.500 in |
| Maximum Operating Temperature | 149 °F |
| Maximum Panel Thickness | 0.090 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.047 in |
| Operating Temperature Range | -40 - 149 °F |
| Overall Length | 2.500 in |
| Panel Thickness Range | 0.047 - 0.090 in |
| Slot Width | 0.080 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Mounting Method | Push Fit |
| Material Flammability Standard | UL94 V-0 |
