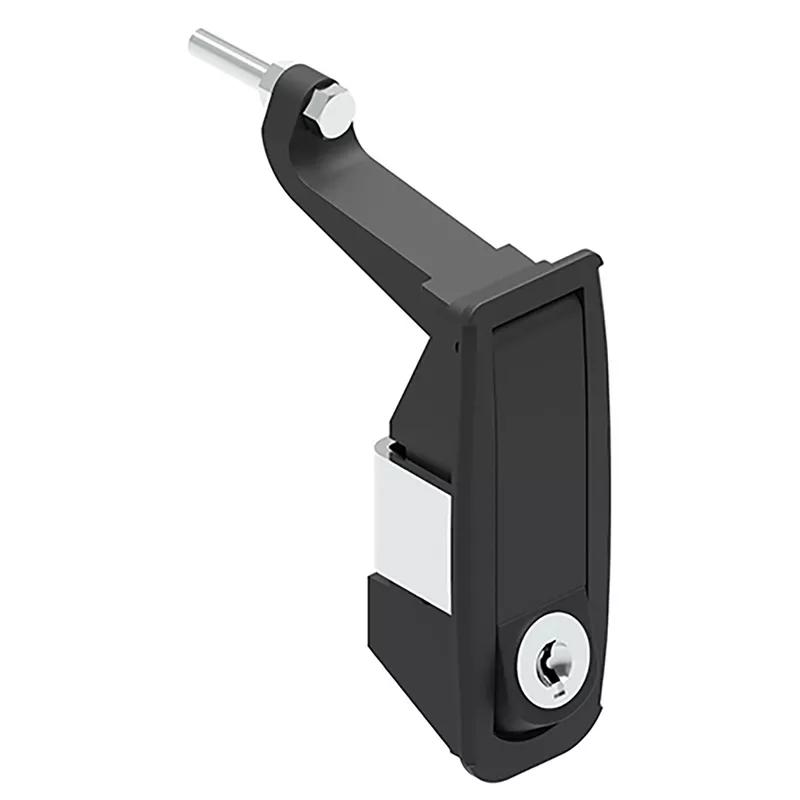

Compression Lever Latch - Overall Length - 109.0 mm | 4.291 in ; Color - Black ; Maximum Grip - 46.0 mm | 1.811 in ; Locking Mechanism - Locking
Adjustable trigger compression latches come in a low profile versatile design. The adjustable latching mechanism allows for a more secure seal where IP/NEMA performance is required. This also allows for improved insulation against noise and vibration conditions. These trigger compression latches come with standard key locking cylinder and are zinc alloy with a black powder coated finish.
| Quantity | Unit price |
|---|---|
| 40+ | $15.34 |
Specifications
Imperial
Metric
| Body Height | 1.024 in |
|---|---|
| Face Length | 3.661 " |
| Face Width | 1.378 in |
| Maximum Compatible Door Thickness | 0.079 in |
| Maximum Grip | 1.811 in |
| Overall Length | 4.291 in |
| Color | Black |
| Handle Finish | Black Powder-Coated |
| Handle Material | Zinc Alloy |
| Includes | Two keys supplied with each latch |
| Key Type | Keyed CH751 |
| Latch Material | Die Cast Zinc Alloy |
| Latch Style | Compression Trigger Latch |
| Locking Mechanism | Locking |
| Mounting Orientation | Universal |
