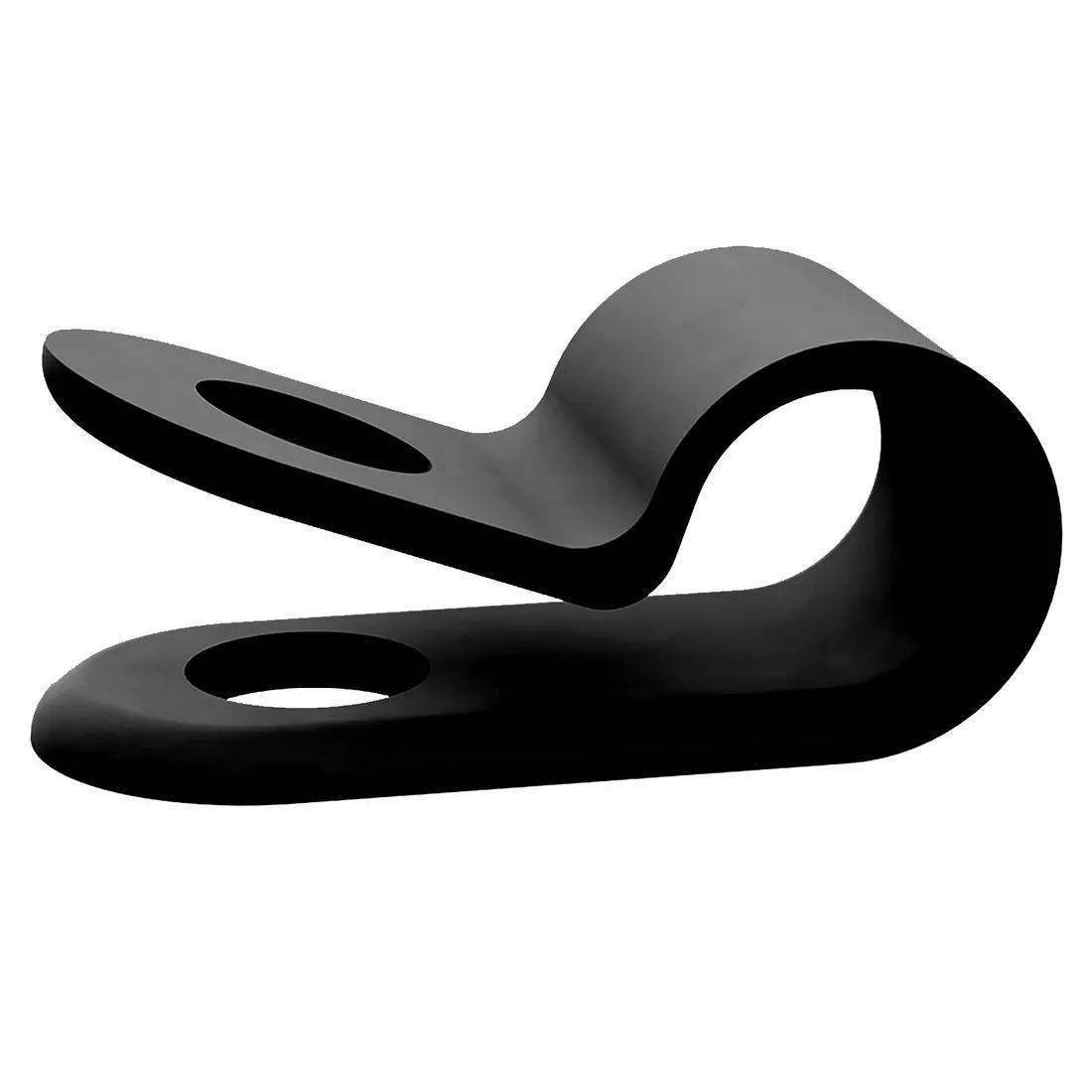

P-Style Cable Clamp - Compatible Cable Diameter Range - 6.4 mm | 0.252 in ; Operating Temperature Range - -40 - 85 °C | -40 - 185 °F ; Black
This P-style clamp holds cables, hoses, and pipes in place. It is easily installed by gripping and fastening the clamp to the chassis with a screw size 10;M5. Black is made from PA and UL94 V-2-rated.
Useful Information
Documents
Specifications
Imperial
Metric
| Maximum Compatible Cable Diameter | 0.252 in |
|---|---|
| Hole Diameter | 0.205 in |
| Compatible Screw Sizes (All) | 10. M5 |
| Operating Temperature Range | -40 - 185 °F |
| Overall Width | 0.374 in |
| Type | 1 |
| Style | P-Clip |
| Material | PA |
| Adjustability | Fixed |
| Color | Black |
| Fitting Style | Clamp |
| Full Material | Polyamide |
| Material Flammability Standard | UL94 V-2 |
| Mounting Method | Screw |
