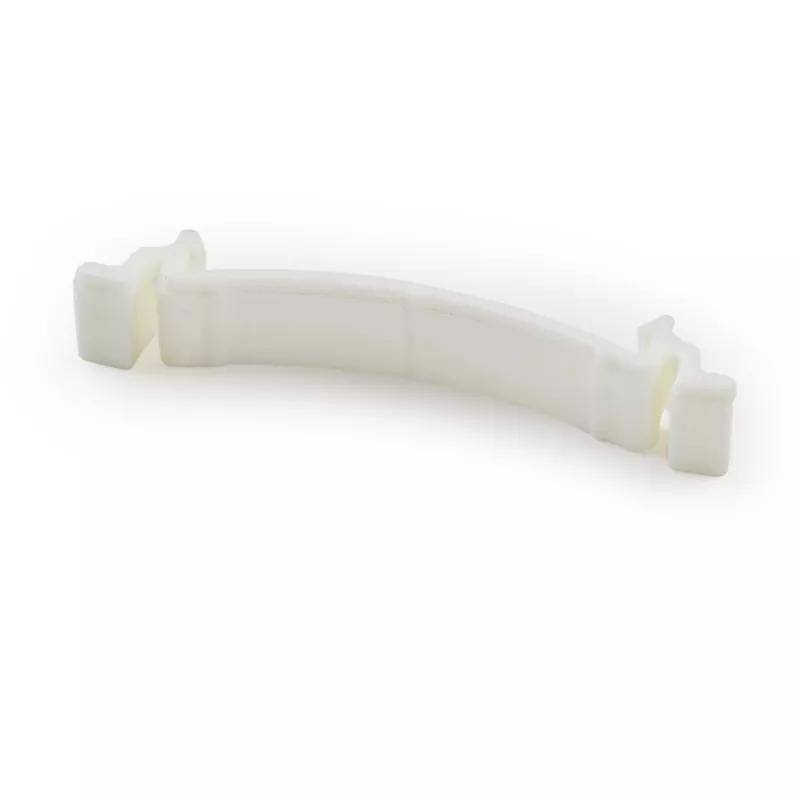

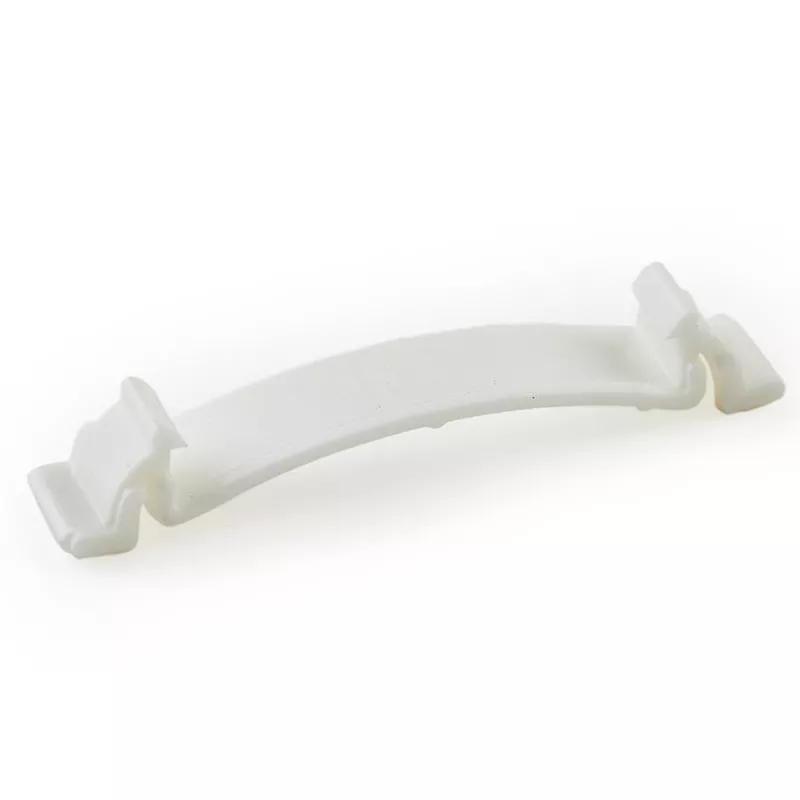

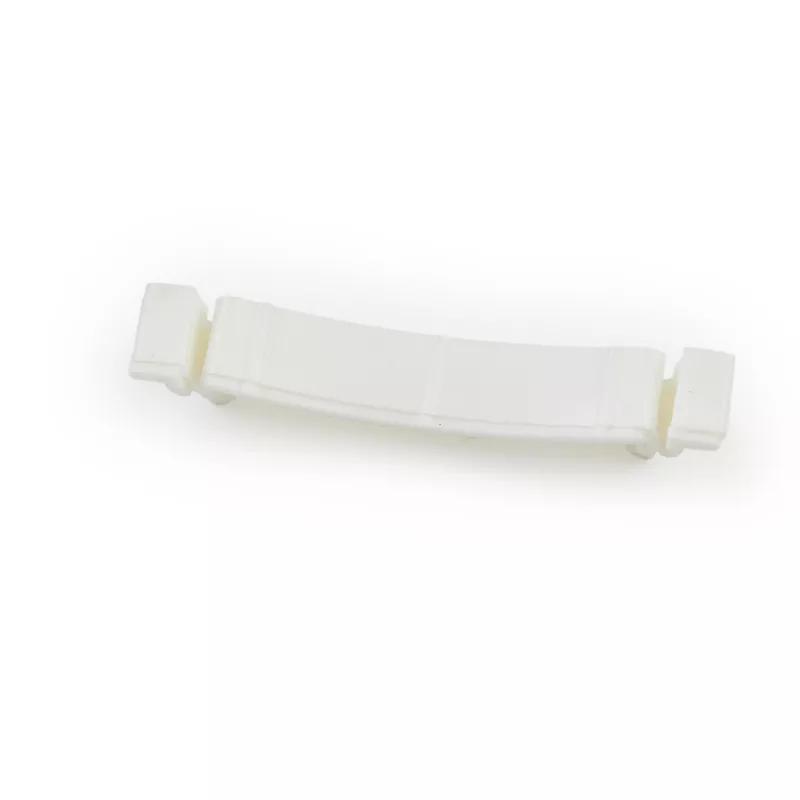

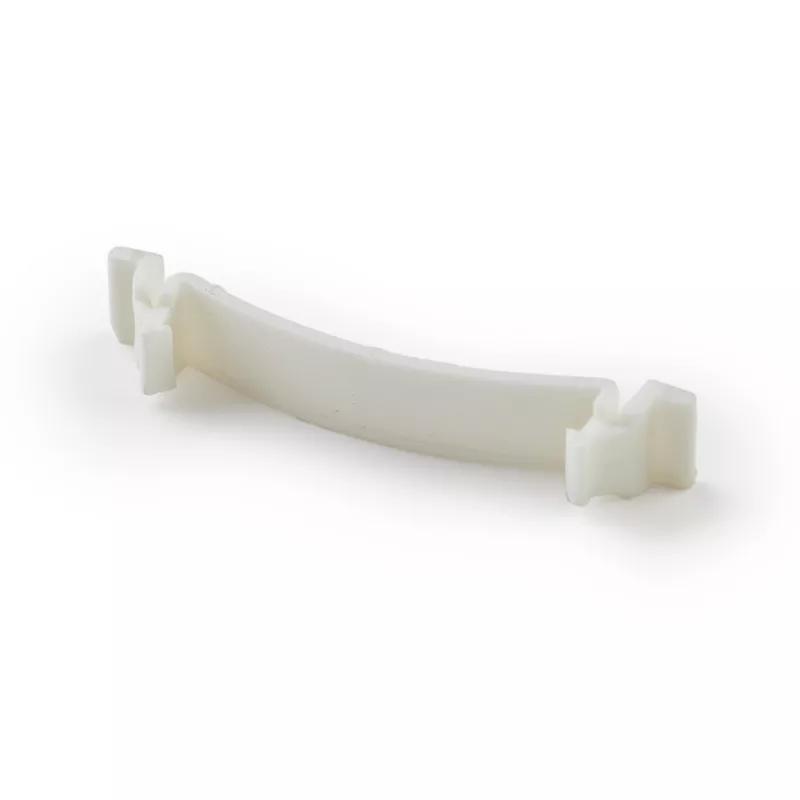

Flat Cable Clamp - Snap-In, Top Lock - ; Maximum Panel Thickness - 1.6 mm | 0.062 in

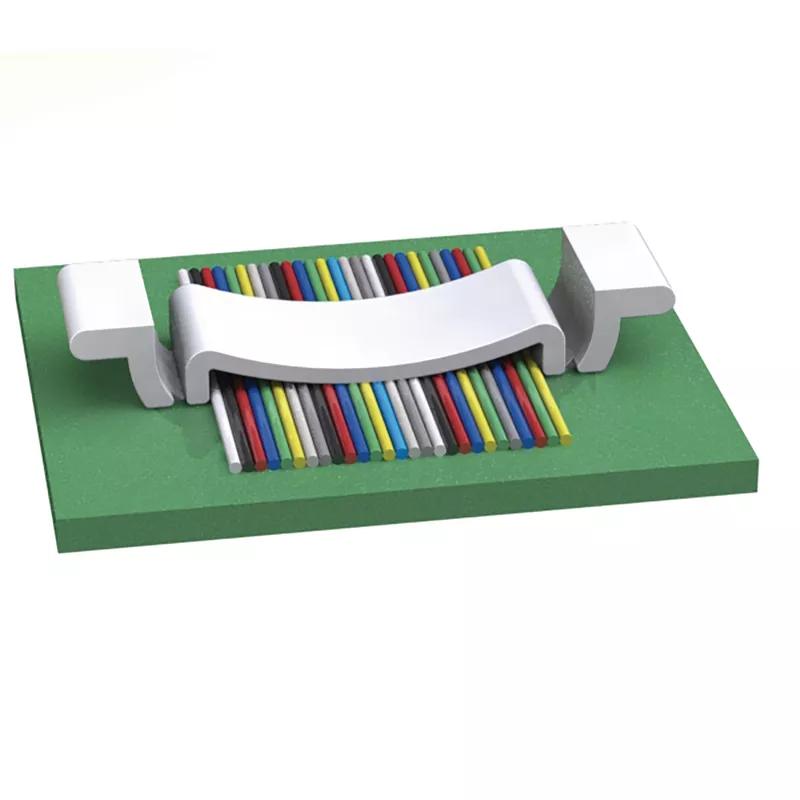

Snap In Top Lock cable Clamp is quick and easy to install by snapping it into a flat surface. Ideal for use with flat cables or wires, attaching them horizontally to the base. Natural made from PA. UL flame rated.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.1461 |
| 10000 - 24999 | $0.1374 |
| 25000 + | $0.1287 |
Useful Information
Documents
Specifications
Imperial
Metric

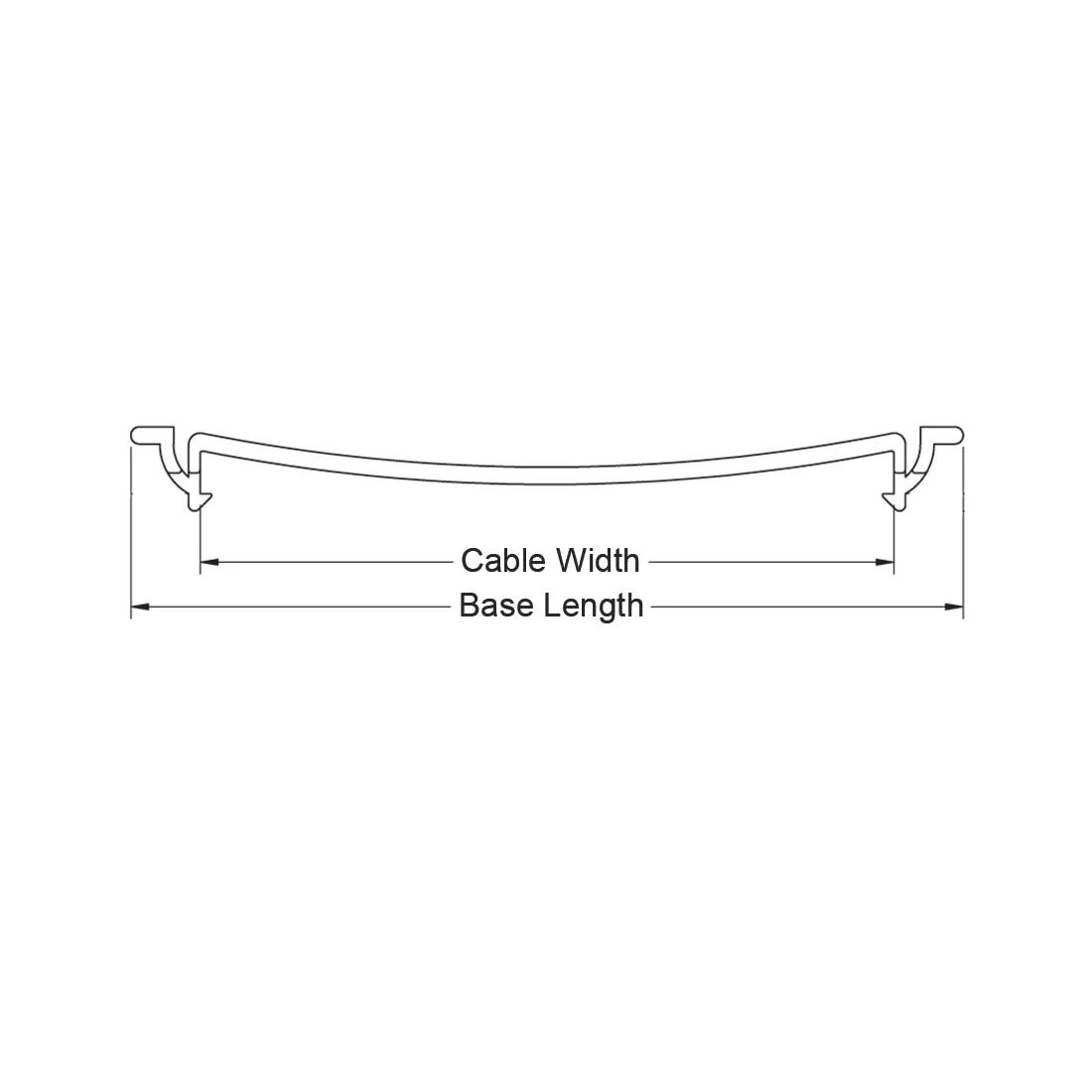

| Distance Between Fixing Holes | 0.591 in |
|---|---|
| Inside Height | 0.134 in |
| Inside Width | 0.197 in |
| Maximum Panel Thickness | 0.063 in |
| Minimum Panel Thickness | 0.031 in |
| Overall Height | 0.287 in |
| Panel Thickness Range | 0.031 - 0.063 in |
| Color | Natural |
| Full Material | Polyamide |
| Material | Nylon 6/6 |
| Mounting Method | None |
