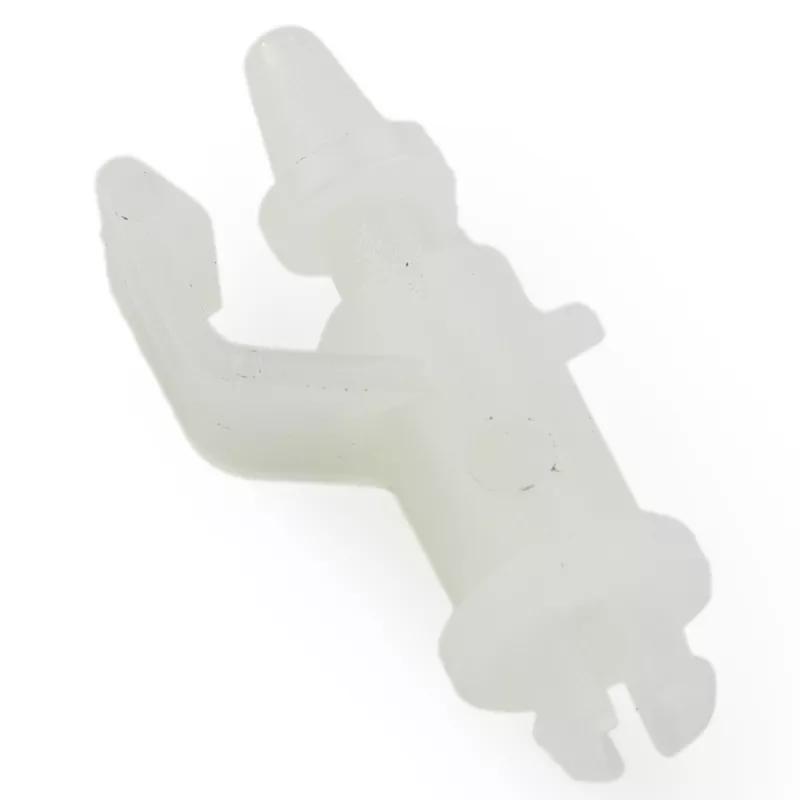

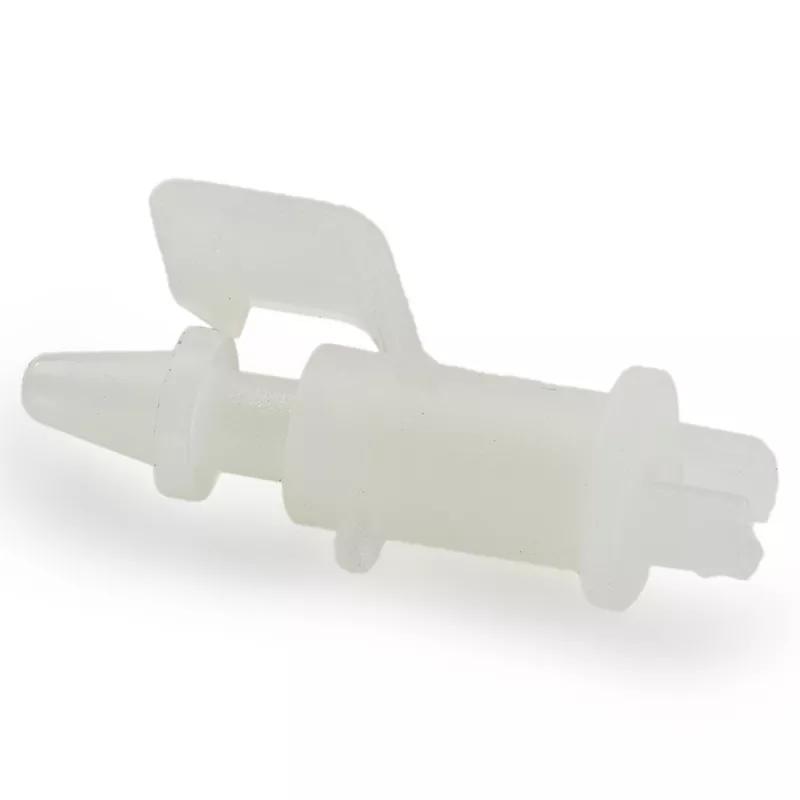

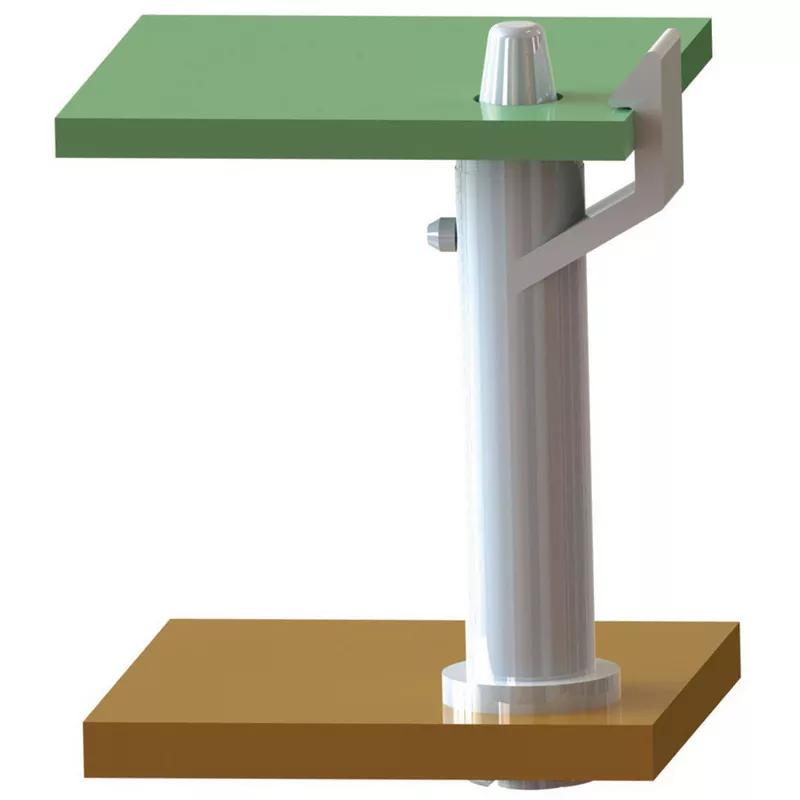

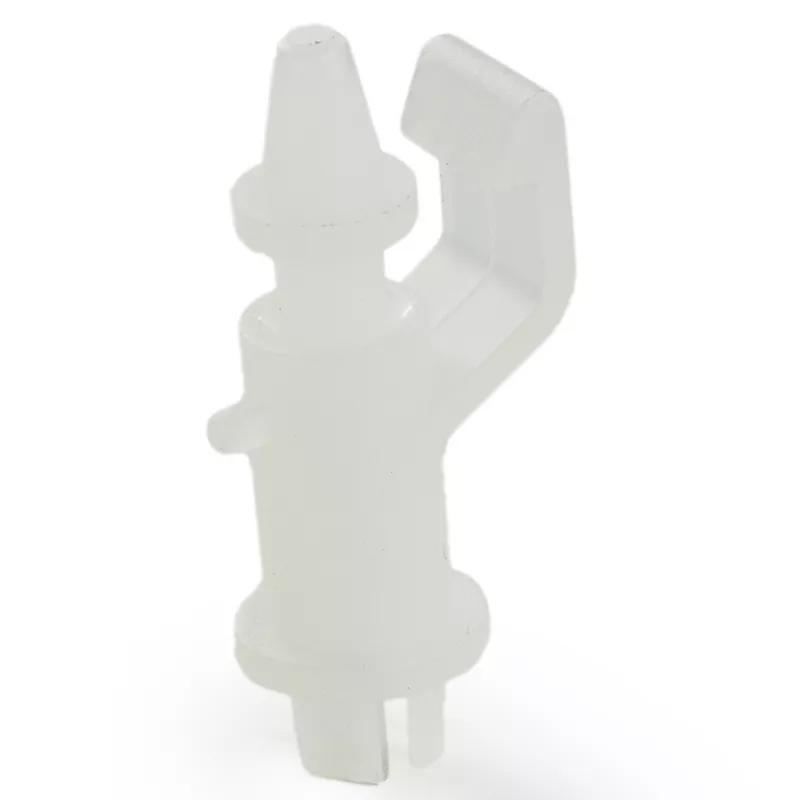

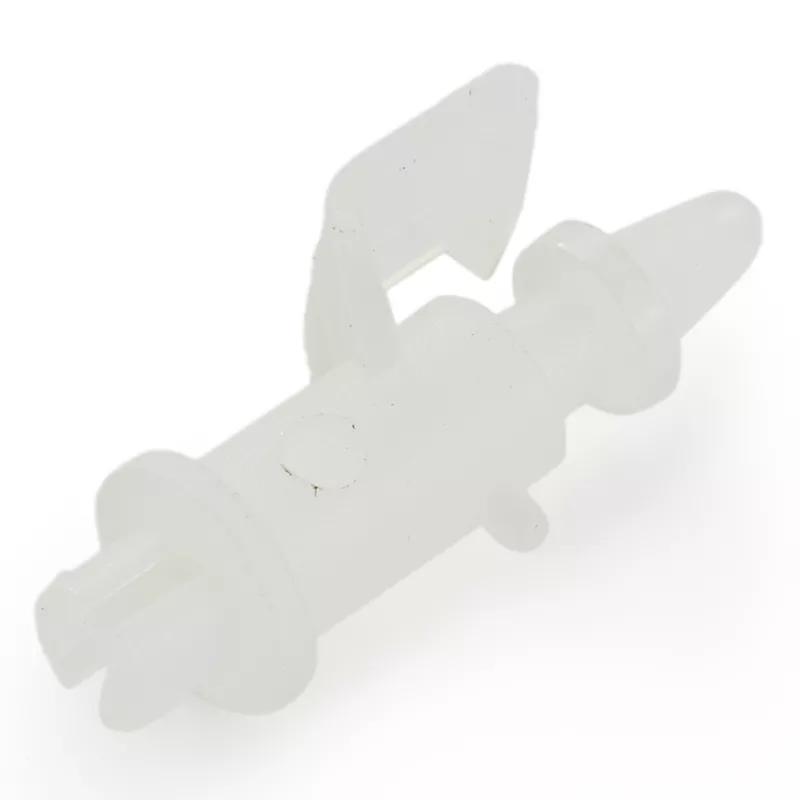

Edge Locking Support - Material PA ; Spacer Length 12.7 mm | 0.5 in
Rivet Edge Holding Support is available in Natural Nylon 6/6 UL-94 V-2 and comes in a 1000 pack.
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $1.8145 |
| 10000 - 24999 | $1.6496 |
| 25000 + | $1.512 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.224 in |
|---|---|
| Hole Diameter A | 0.157 in |
| Locking Head Height A | 0.201 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.071 in |
| Maximum Panel Thickness B | 0.106 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.047 in |
| Panel Thickness A Range | 0.079 - 0.071 in |
| Panel Thickness B Range | 0.047 - 0.106 in |
| Spacer Length | 0.5 in |
| Color | Natural |
| Hole Diameter B | 0.189 in |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Clip Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Special Features | Body Plunger Rivet Action |
