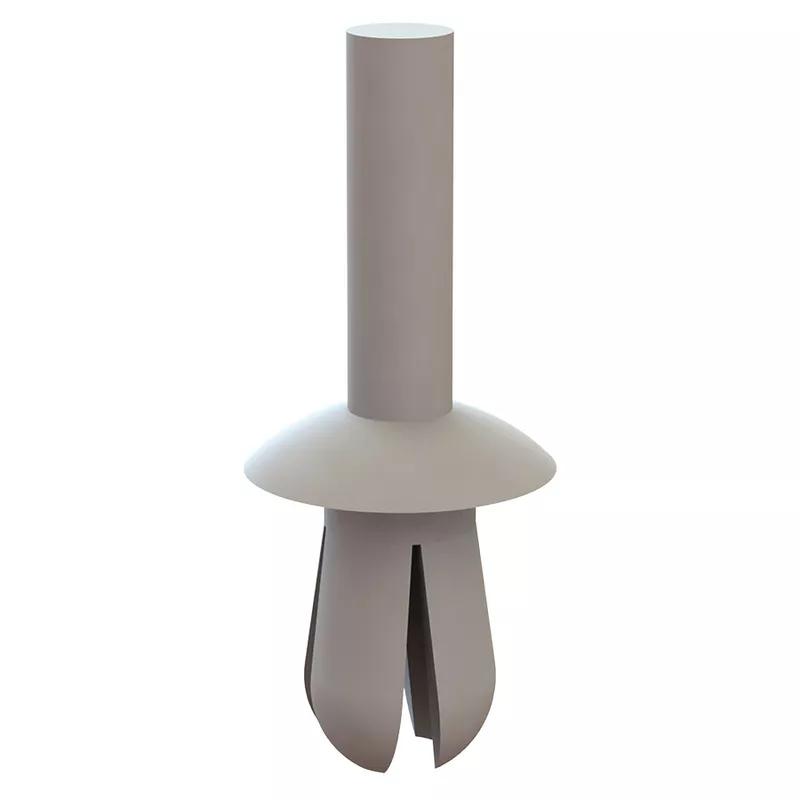

Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 4 - 7.1 mm | 0.156 - 0.281 in
Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 4999 | $0.1069 |
| 5000 - 9999 | $0.0962 |
| 10000 - 24999 | $0.0866 |
| 25000 + | $0.078 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.380 in |
|---|---|
| Compatible Hole Diameter | 0.187 in |
| Compatible Panel Thickness Range | 0.156 - 0.281 in |
| Head Diameter | 0.375 in |
| Head Height | 0.080 in |
| Colour | Natural |
| Material | Nylon |
| Full Material | Nylon 6/6 |
| Rivet Type | Snap |
| Rivet Head Shape | Flat |
| Rivet Fitting Style | Push-In |
