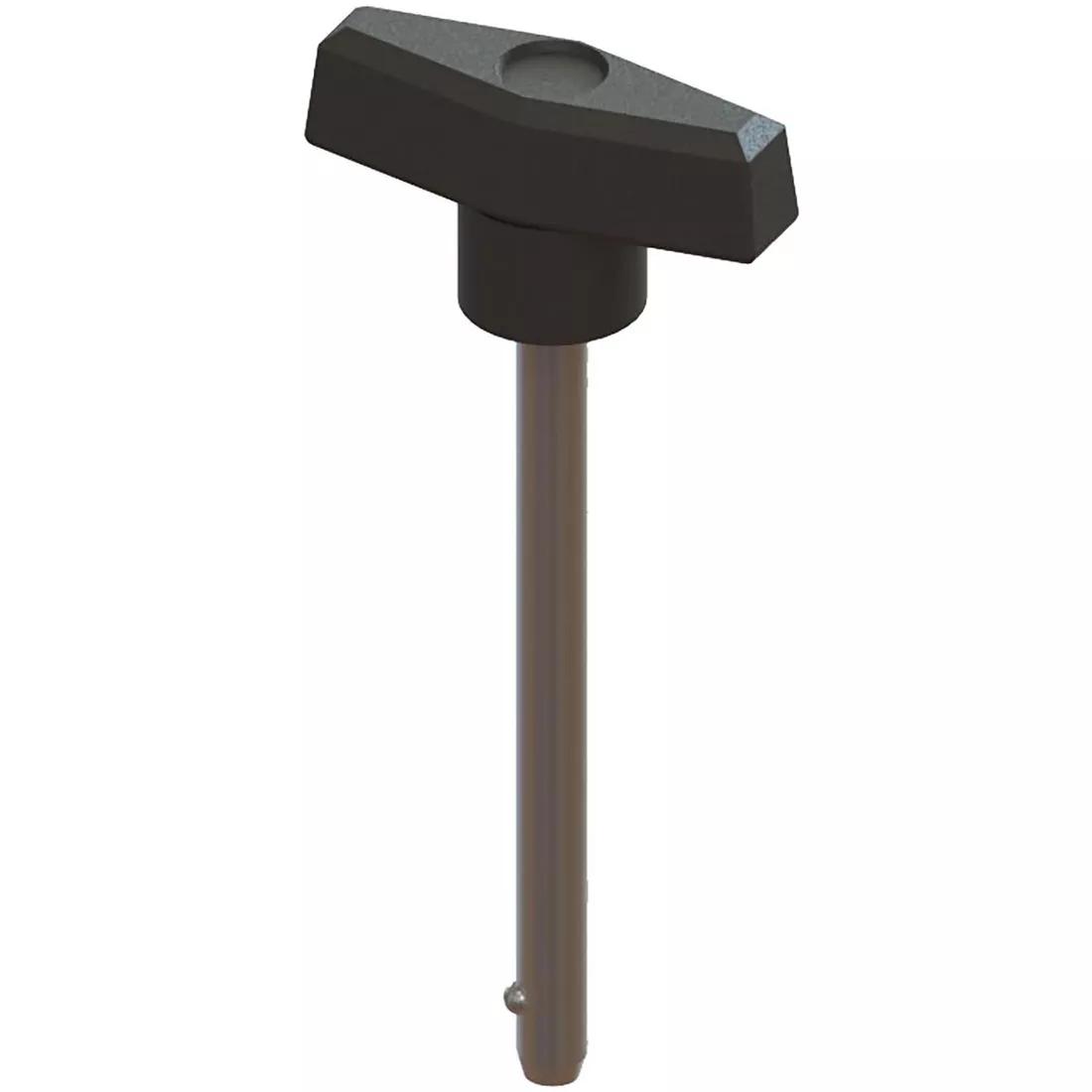

T-Knob T5 Black Detent Pin
T-Knob T5 Black Detent Pin
T-Knob Detent Pin - Line Drawing

Detent Pins T-Handle

In stock

Knob Detent Pins, which are also known as T-Handle Fitness Pins, are commonly used to select the weight on fitness equipment, but they can also be used on many other quick-acting fastening applications.

The pin material is made from Steel, which is an economical material providing good strength. Comes with a Clear Zinc Plating finish for added corrosion resistance.

They feature a spring-loaded detent ball that provides a convenient and dependable quick-release mechanism that retracts when you push or pull the pin. A chamfered tip helps to quickly locate the hole.

  • Pin Material: Grade 2 Low Carbon Steel with Clear Zinc Plating
  • Knob Material: Polypropylene (PP).

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Pin Diameter All
Usable Length All
Show more Show less
Pin Material All
Knob Diameter All
4 results

Sort by

None
Product SKUs information
Item Code Price range Availability Pin Diameter Pin Material Knob Diameter Usable Length View
$3.80 - $5.05 200 In stock
0.375 in
Steel
2.000 in
1.625 in
$3.90 - $5.08 99 In stock
0.250 in
Steel
2.000 in
3.750 in
$3.20 - $4.20 205 In stock
0.250 in
Steel
2.000 in
1.500 in
$3.40 - $4.79 400 In stock
0.250 in
Steel
2.000 in
3.000 in
Detent Pin - T-Handle;Pin Diameter - 9.5 mm | 0.375 in; Usable Length - 41.3 mm | 1.625 in; Zinc-Plated; Steel

KN6X2000T5-D-21

Price Range
$5.05 - $3.80

Stock Levels
200 In stock
Attributes
  • Knob Material
    Polypropylene
  • Knob Color
    Black
  • Pin Material
    Steel
  • Knob Diameter
    2.000 in
  • Pin Diameter
    0.375 in
Quick View
View Product >
Detent Pin - T-Handle;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 95.3 mm | 3.750 in; Zinc-Plated; Steel

KN4X4000T5-D-21

Price Range
$5.08 - $3.90

Stock Levels
99 In stock
Attributes
  • Knob Material
    Polypropylene
  • Knob Color
    Black
  • Pin Material
    Steel
  • Knob Diameter
    2.000 in
  • Pin Diameter
    0.250 in
Quick View
View Product >
Detent Pin - T-Handle;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 38.1 mm | 1.500 in; Zinc-Plated; Steel

KN4X1750T5-D-21

Price Range
$4.20 - $3.20

Stock Levels
205 In stock
Attributes
  • Knob Material
    Polypropylene
  • Knob Color
    Black
  • Pin Material
    Steel
  • Knob Diameter
    2.000 in
  • Pin Diameter
    0.250 in
Quick View
View Product >
Detent Pin - T-Handle;Pin Diameter - 6.4 mm | 0.250 in; Usable Length - 76.2 mm | 3.000 in; Zinc-Plated; Steel

KN4X3250T5-D-21

Price Range
$4.79 - $3.40

Stock Levels
400 In stock
Attributes
  • Knob Material
    Polypropylene
  • Knob Color
    Black
  • Pin Material
    Steel
  • Knob Diameter
    2.000 in
  • Pin Diameter
    0.250 in
Quick View
View Product >
